Leader Light LL ARC SPOT 19 User Manual

LL ARC SPOT 19 RECESSED RGB
LL31 700
COMPLIMENTS ON YOUR PURCHASE!
All dimensions are in millimeters
65 - 85
Cut out 120mm
Following items are included:
- LL ARC SPOT 19 RECESSED RGB with 5m cable and 6pin LINE connector
- User manual
Additional items needed:
- LL ARC DRIVER
DC power supply 24V
-
Controller compatible with DMX
-
Content:
01 SAFETY INFORMATION
01.1 Risk of eyes damage
01.2 Protection from electric shock
01.3 Fire prevention
02 PRODUCT SPECIFICATION
02.1 Technical Specification
03 INSTALLATION
03.1 Unpacking
03.2 Physical installation
03.3 Electrical installation
03.3.1 Connecting to AC/DC power supply
03.3.2 Connecting to LL ARC DRIVER for intensity/colour control
04 MAINTENANCE
ENvIRONMENT
Do not throw away the appliance with the normal household waste at the end of its life,
but hand it in at an official collection point for recycling. By doing this, you help to preserve
the environment.
©MMX - Leader Light – All right reserved
01 SAFETY INFORMATION
Leader Light s.r.o.
M.Gorkeho 33
SK-052 01 Spisska Nova Ves
Slovakia
WARNING!!!
www.leaderlight.eu
Carefully read before installing, powering or servicing.
USER MANUAL
Nothing to do if anything misunderstand! Installation can be done only
by a qualified professional in accordance with relevant local codes.
01.1 Risk of eyes damage
- Do not look directly into LED lamps.
- Do not look into light beam from a distance of less than 40 cm (16 inches)!
01.2 Protection from electric shock
- Shut down power before installation or maintenance.
- Luminaries, Driver and recommended power supply must be installed by a qualified
professional in accordance with relevant local codes. Only acceptable source of power and
frequency that complies with local building and electrical codes to use.
- Do not use or do not connect the products if the power cable, power plug or fixtures are any
way damaged, wet, or if they are overheating.
- Do not modify, alter, or attempt to service the LeaderLight appliance. Doing so will void the
warranty.
- Before removing or installing any cover or part of appliance disconnect from power.
Operation only with DC 24v source!
By using a high voltage AC power supply - danger of electric shock!
01.3 Fire prevention
1 pc.
- Follow all safety consideration.
1 pc.
- Thermostatic switches or fuses never to bypass.
- Device never shield. Around the axis of the fitting (180°) must be maintained space for
cooling.
- LEDs never direct cover with filters or other materials.
- Allowing max. ambient temperature is 40°C (104°F).
02 PRODUCT SPECIFICATION
02.1 Technical Specification
Lamp type:
Control data Input:
Input power:
Power connection:
Net weight:
Ambient temp. (Ta):
Materials and finish:
Installation:
*
Z5: R-Red,
7xR+6xG+6xB Z5 *
Lifetime: Long 50 000 hrs 70% degradation
Optic: Standard: Fresnel optic 40-65°
On request: 10°, 25°, 40°
3 channels 24V dimming
max. 25W
24V DC 5m cable with 6pin LINE connector
1kg
IP: IP20
Maximum 40°C
Cooling: Conventional
Powder-painted anodized aluminium RAL9006
(other colours on request)
Recessed mounting
G-Green, B-Blue
Edition: A - 2010
03 INSTALLATION
03.1 Unpacking
- Unpack carefully.
- This is electronic equipment and should be handled carefully.
- Damaged delivered package or if are any mechanical parts broken – it must be claim
immediately by the transport company. Photo pictures as evidence are valuable for
future claim.
03.2 Physical installation
- Loading capacity of bearing area has to be at least 10 times the weight of all device
clusters (luminaries, clamps, cables, ...).
- Hairbreadth from combustible materials is 0,5m.

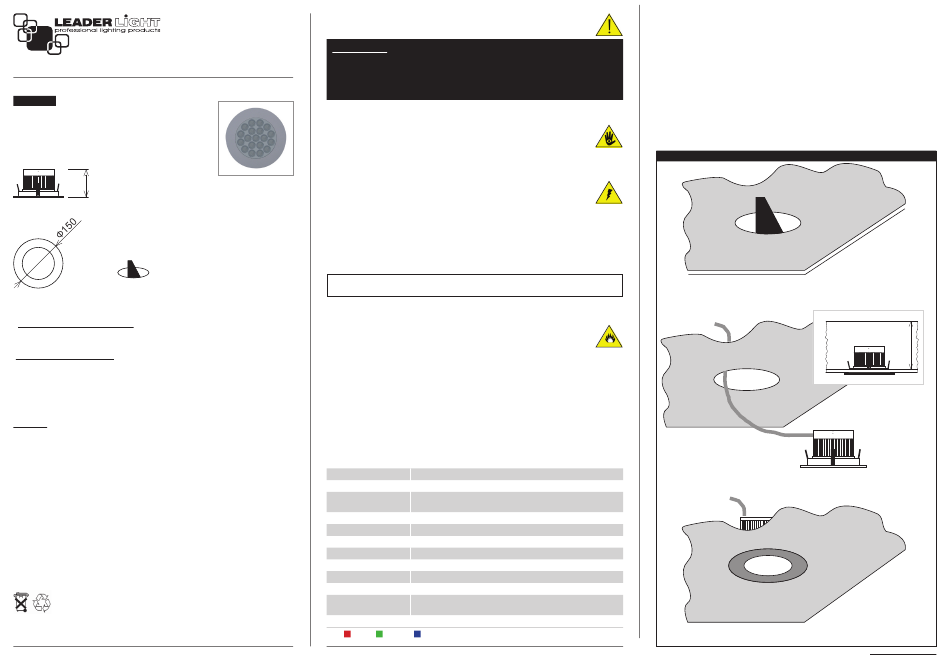

Suspended installation
Cut out 120mm
1.1.1. Cut hole in suspended ceiling. The aloved thickness of ceiling material is max.
12mm.
1.1.2. Connect the fixture to the DC power supply or ARC DRIVER.
1.1.3. Fit the decoration ring in the suspended ceiling.
If you have any question please, contact support@leaderlight.sk
minimal.
215 mm
1.1
