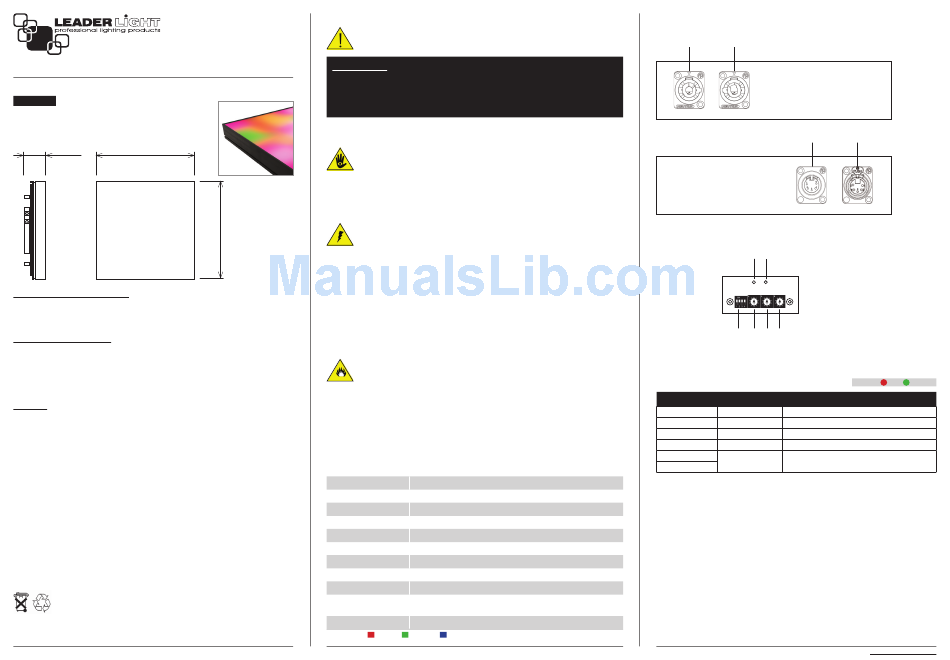

Leader Light LL50 450 User Manual

LL PRO GRAPHIC PANEL
LL50 450
COMPLIMENtS ON yOUR PURCHASE!
All dimensions are in millimeters
129,5 588
following items are included:
- LL PRO GRAPHIC PANEL RGB
- PowerCon type "A" + "B"
- User manual
Additional items needed:
- Data cables with XLR 5pin Female/Male
- Controller compatible with DMX
Surface mounting:
- LL HOLDER GRAPHIC PANEL SURFACE
- Screws and washers M12
Content:

01 SAfEty INfORMAtION

01.1 Risk of eyes damage

01.2 Protection from electric shock

01.3 Fire prevention

02 PROdUCt SPECIfICAtION

02.1 Technical Specification

02.2 Data and Power connections

02.3 Top panel

03 INStALLAtION

03.1 Unpacking

03.2 Physical installation

03.3 Connecting To Ac Power
03.4 Control Data Connecting
03.5 Dmx Channels
04 Maintenance
ENvIRONMENt
Do not throw away the appliance with the normal household waste at the end of its life,
but hand it in at an official collection point for recycling. By doing this, you help to preserve
the environment.
©MMX - Leader Light – All right reserved
01 SAfEty INfORMAtION
Leader Light s.r.o.
M.Gorkeho 33
SK-052 01 Spisska Nova Ves
Slovakia
www.leaderlight.eu
USER MANUAL
WARNING!!!
Carefully read before installing, powering or servicing.
Nothing to do if anything misunderstand! Installation can be done only
by a qualified professional in accordance with relevant local codes.
01.1 Risk of eyes damage
- Do not look directly into LED lamps.
- Do not look into light beam from a distance of less than 40 cm (16 inches)!
01.2 Protection from electric shock
588
- Shut down power before installation or maintenance.
- Luminaries and recommended AC power supply must be installed by a qualified professional
in accordance with relevant local codes. Only acceptable source of AC power and frequency
that complies with local building and electrical codes to use.
- Do not use or do not connect the products if the power cable, power plug or fixtures are any
way damaged, wet, or if they are overheating.
- Do not modify, alter, or attempt to service the LeaderLight appliance. Doing so will void the
1 pc.
warranty.
- Before removing or installing any cover or part of appliance disconnect it from AC power.
1 pc.
- Appliance always connect to earth (eltech.).
1 pc.
01.3 fire prevention
1 pc.
1 pc.
1 pc.
- Follow all safety consideration.
4 pcs.
- Thermostatic switches or fuses never to bypass.
- Device never shield – minimum distance around fitting must be 100mm (4 in.).
- LEDs never direct cover with filters or other materials.
- Allowing max. ambient temperature is 40°C (104°F).
02 PROdUCt SPECIfICAtION
02.1 Technical Specification
Lamp type:
Control data Input:
Input power:
Power connection:
Net weight:
Ambient temp. (ta):
Materials and finish:
Installation:
* TOP LED: R-Red,
144 x RGB TOP LED *
Lifetime: Long 100 000 hrs 60% degradation
DMX512 In/Out with XLR 5pin
max.60W
100-260V AC In/Out PowerCon
6kg
IP: IP20
Maximum 40°C
Cooling: Conventional
Housing: anodized aluminium black
Cover: plexiglass with special diffuse foile
Surface, recesed or semi-recesed mounting
G-Green, B-Blue
Edition: A - 2010
02.2 data and Power connections
Power Out Power In
PowerCon PowerCon
DMX Out
XLR-5pin
02.3 top panel
Control LEDs
POWER DATA
MODE & ADDRESS
Dip options "100" "10" "1"
Rotating DIP address 000÷511
Control LEds Indication
LEd INdICAtION StAtUS
POWER (Red) blinking – 2Hz OK - inside fixture is everything correct
DATA (Green) light off NO DMX512 signal
DATA (Green) blinking – 4Hz OK- income correct DMX512 signal
DATA (Green) fast blinking NON correct digital signal
POWER (Red)
alternate blinking Autotest function
DATA (Green)
03 INStALLAtION
03.1 Unpacking
- Unpack carefully.
- This is electronic equipment and should be handled carefully.
- Damaged delivered package or if are any mechanical parts broken – it must be claim
immediately by the transport company. Photo pictures as evidence are valuable for
future claim.
03.2 Physical installation
- Loading capacity of bearing area has to be at least 10 times the weight of all device
clusters (luminaries, clamps, cables, ...).
- Hairbreadth from combustible materials is 0,5m.
- The LL PRO GRAPHIC PANEL is designed for use in a 600mm grid suspended
ceiling with T profile (Figure Nr. 1.1) or surface installation by LL HOLDER GRAPHIC
PANEL LL41 605 (Figure Nr. 1.2).
If you have any question please, contact support@leaderlight.sk
DMX In
XLR-5pin
POWER DATA
