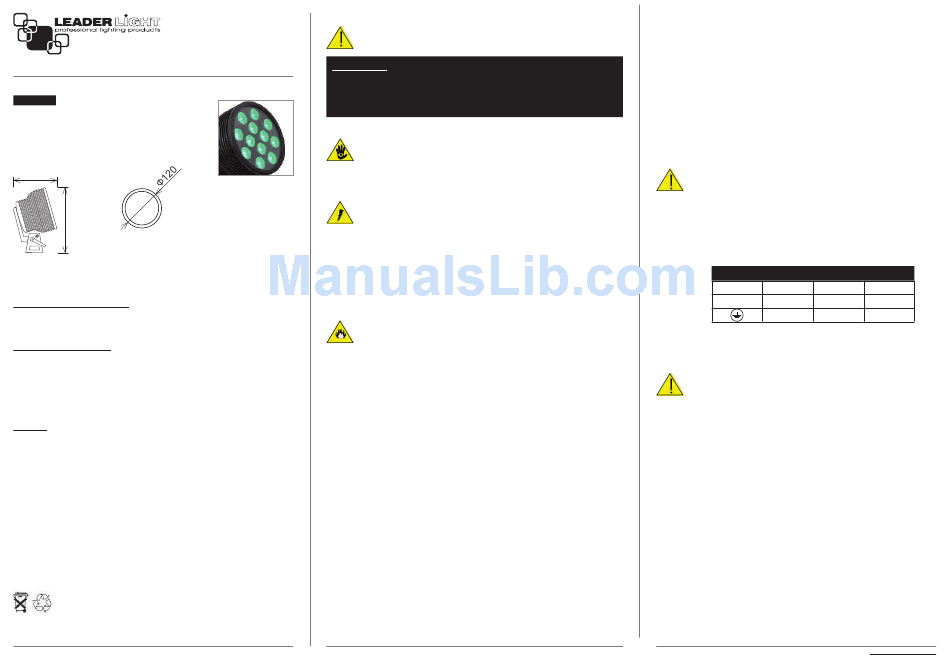

LL PRO LED SPOT DC24V Z-POWER OneChip RGB
LL46 400
COMPLIMENTS ON YOUR PURCHASE!
All dimensions are in milimeters
max.121
max.196
Following items are included:
- LL PRO LED SPOT with 5 m cable and XLR 6PIN connector
- User manual
Additional items needed:
- LL PRO LED Z-POWER DRIVER
DMX controller
-
Content:

01 SAFETY INFORMATION

01.1 Risk of eyes damage

01.2 Protection from electric shock

01.3 Fire prevention

02 PRODUCT SPECIFICATION

02.1 Technical Specification

03 INSTALLATION

03.1 Unpacking

03.2 Physical installation

03.3 Connecting to AC/DC power supply

04 MAINTENANCE

ENVIRONMENT
Do not throw away the appliance with the normal household waste at the end of its life,
but hand it in at an official collection point for recycling. By doing this, you help to preserve
the environment.
©MMVIII - Leader Light – All right reserved
Leader Light s.r.o.
01
SAFETY INFORMATION
M.Gorkeho 33
SK-052 01 Spisska Nova Ves
Slovakia
www.leaderlight.eu
USER MANUAL
WARNING!!!
Carefully read before installing, powering or servicing.
Nothing to do if anything misunderstand!
Only for professional use!
01.1 Risk of eyes damage
- Do not look directly into LED lamps.
- Do not look into light beam from a distance of less than 40 cm (16 inches)!
01.2 Protection from electric shock
- Shut down power before installation or maintenance.
- Luminaries, Drivers and recommended power supply must be installed by a qualified professional in
accordance with relevant local codes.
Only acceptable source of AC power and frequency that complies with local buidling and electrical
codes to use.
- Do not use or do not connect the products if the power cable, power plug or fixtures are any way
damaged, wet, or if they are overheating.
- Do not modify, alter, or attempt to service the LeaderLight appliance.
Doing so will void the warranty.
- Before removing or installing any cover or part of appliance disconnect it from AC power.
01.3 Fire prevention
1 pc.
1 pc.
- Follow all safety consideration.
- Thermostatic switches or fuses never to bypass.
- Device never shield. Around the axis of the fitting (180°) must be maintained space for cooling.
Minimum distance from the surrounding objects must be 50mm (2 in.) (figure 1.1).
- LEDs never direct cover with filters or other materials.
- Allowing max. ambient temperature is 40°C (104°F).
- Luminaries never use without mounting brackets. The housing never install directly to the surface.
02 PRODUCT SPECIFICATION
02.1 Technical Specification
Control data Input:
Input power:
DC Power Connection:
Dimensions LxHxΦ:
Ambient temp. (Ta):
Materials and finish:
Lamp type:
12xRGB 3x1W P5
(Red, Green and Blue)
Lifetime:
Long 60 000 hrs 60% degradation
Optic:
35mm standard 25°
optional 40°- on request
3 channels 24V dimming
max. 50W
24V DC 5m cable with XLR 6PIN
Net weight:
2,5kg
max. 121mm x max. 196mm x 125mm without bracket
IP:
IP65
Maximum 40°C
Cooling:
Conventional
Housing: powder-painted anodized aluminium in black
(other colours on request)
Cover: clear or frosted PMMA
Installation:
Any position for ceiling, wall and surface mounting
Edition: A - 2008
03 INSTALLATION
03.1 Unpacking
- Unpack carefully.
- This is electronic equipment and should be handled carefully.
- Damaged delivered package or if are any mechanical parts broken – it must be claim
immediately by the transport company.
Photo pictures as evidence are valuable for future claim.
03.2 Physical installation
- Loading capacity of bearing area has to be at least 10 times the weight of all device clusters
(luminaries, clamps, cables, ...).
- Heigrbreadth from combustible materials is 0,5m.
03.3 Connecting to DC power supply
- To tackle all Safety Information- 01!
- You can suffer a dangerous electric shock by using a high voltage AC/DC power
supply - by touching AC/DC power supply the wires inside the unit!
- LL PRO LED SPOT operate with the LL PRO DRIVER
IN:100-260AC/ OUT: 24V (Figure Nr. 2.1, 2.2).
- It is not necessary to open the fixture before connecting to LL PRO DRIVER.
- Pull the XLR 6PIN cable connector from fixture to the LL PRO DRIVER.
AC Power Supply Cord plug connections to LL PRO DRIVER:
Symbol
Pin
Wire Colour
L
live
brown
N
neutral
blue
ground (earth)
yellow/green
04 MAINTENANCE
- To tackle all Safety Information- 01!
- Damage caused by inadequate cleaning or maintenance is not coverd by warranty.
- Regular cleaning is demand (dust, dirt, ...).
Maintenance policy:
- Unplug mains befor maintenance and at least 10 minutes cool off.
- Cleanup dust from cover.
- Use dampy duster (warm watter).
- Before reinstalling to check failure-free state – no wet parts!
If you have any question please, contact support@leaderlight.sk
Screw (US)
yellow or brass
silver
green
