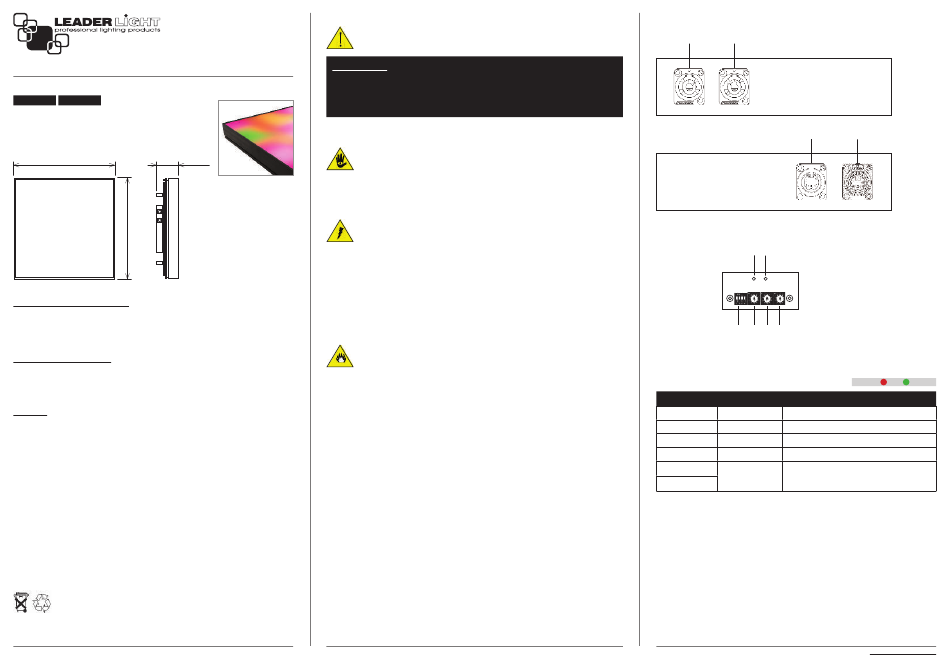

Leader Light LL50 450 User Manual

LL PRO LED GRAPHIC PANEL RGB/RGBAW
LL50 450 LL50 455
COMPLIMENTS ON YOUR PURCHASE!
All dimensions are in milimeters
588 129,5
588
Following items are included:
- LL PRO LED GRAPHIC PANEL RGB/RGBAW
- PowerCon type "A" + "B"
- User manual
Additional items needed:
- Data cables with XLR 5PIN Female/Male
- Controller compatible with DMX
Content:
01 SAFETY INFORMATION
01.1 Risk of eyes damage
01.2 Protection from electric shock
01.3 Fire prevention
02 PRODUCT SPECIFICATION
02.1 Technical Specification
02.2 Data and Power connections
02.3 Top panel
03 INSTALLATION
03.1 Unpacking
03.2 Physical installation
03.3 Connecting to AC power
03.4 Control data connecting
03.5 DMX channels
04 MAINTENANCE
ENVIRONMENT
Do not throw away the appliance with the normal household waste at the end of its life,
but hand it in at an official collection point for recycling. By doing this, you help to preserve
the environment.
©MMVIII - Leader Light – All right reserved
Leader Light s.r.o. 01 SAFETY INFORMATION
M.Gorkeho 33
SK-052 01 Spisska Nova Ves
Slovakia
www.leaderlight.eu
USER MANUAL
WARNING!!!
Carefully read before installing, powering or servicing.
Nothing to do if anything misunderstand!
Only for professional use!
01.1 Risk of eyes damage
- Do not look directly into LED lamps.
- Do not look into light beam from a distance of less than 40 cm (16 inches)!
01.2 Protection from electric shock
- Shut down power before installation or maintenance.
- Luminaries and recommended power supply must be installed by a qualified professional in
accordance with relevant local codes.
Only acceptable source of AC power and frequency that complies with local buidling and electrical
codes to use.
- Do not use or do not connect the products if the power cable, power plug or fixtures are any way
damaged, wet, or if they are overheating.
- Do not modify, alter, or attempt to service the LeaderLight appliance.
Doing so will void the warranty.
- Before removing or installing any cover or part of appliance disconnect it from AC power.
1 pc.
- Appliance allways connect to earth (eltech.).
1 pc.
01.3 Fire prevention
1 pc.
1 pc.
- Follow all safety consideration.
- Thermostatic switches or fuses never to bypass.
1 pc.
- Device never shield – minimum distance around fitting must be 100mm (4 in.).
- LEDs never direct cover with filters or other materials.
- Allowing max. ambient temperature is 40°C (104°F).
02 PRODUCT SPECIFICATION
02.1 Technical Specification
Control data Input:
Input power:
Power Connection:
Dimensions LxWxH:
Ambient temp. (Ta):
Materials and finish:
Lamp type: RGB:144 x RGB TOP LED
(Red, Green and Blue)
RGBAW:432 x RGBAW TOP LED
(Red, Green, Blue, Amber and White)
Lifetime: Long 100 000 hrs 60% degradation
DMX512 In/Out with XLR 5PIN
RGB: max.60W
RGBAW: max.100W
100-260V AC In/Out PowerCon
Net weight: 6kg
588mm x 588mm x 129,5mm
IP: IP20
Maximum 40° C
Coolong: Conventional
Housing: anodized aluminium black
Cover: plexiglass with special diffuse foile
Installation:
Surface, recesed or semi-recesed mounting
Edition: A - 2008
02.2 Data and Power connections
Power OUT Power IN
PowerCon PowerCon
DMX OUT
XLR-5PIN
02.3 Top panel
Control LEDs
POWER DATA
MODE & ADDRESS
Dip options "100" "10" "1"
Rotating DIP address 000÷511
Control LEDs Indication
LED INDICATION STATUS
POWER (Red) blinking – 2Hz OK - inside fixture is everything correct
DATA (Green) light off NO DMX512 signal
DATA (Green) blinking – 4Hz OK- income correct DMX512 signal
DATA (Green) fast blinking NON correct digital signal
POWER (Red)
alternate blinking Autotest function
DATA (Green)
03 INSTALLATION
03.1 Unpacking
- Unpack carefully.
- This is electronic equipment and should be handled carefully.
- Damaged delivered package or if are any mechanical parts broken – it must be claim
immediately by the transport company.
Photo pictures as evidence are valuable for future claim.
03.2 Physical installation
- Loading capacity of bearing area has to be at least 10 times the weight of all device clusters
(luminaries, clamps, cables, ...).
- Heigrbreadth from combustible materials is 0,5m.
- The LL PRO LED GRAPHIC PANEL is designed for use in a 600mm grid suspended
ceiling with T profile (Figure Nr. 1.1).
If you have any question please, contact support@leaderlight.sk
DMX IN
XLR-5PIN
POWER DATA
