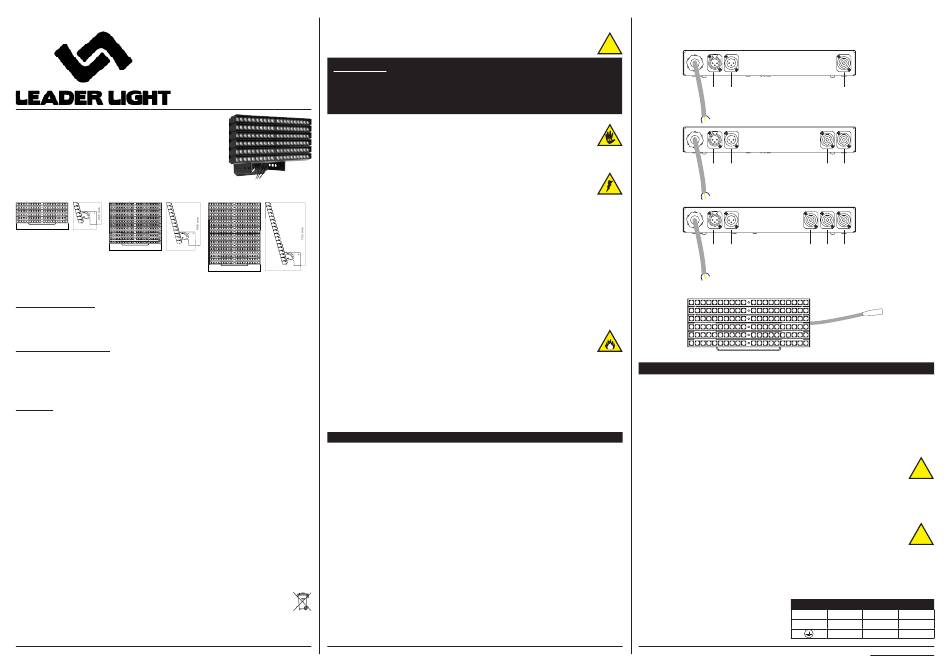

Leader Light LL SPORT 4K User Manual

LL SPORT 4K ... with DMX DRIVER
COMPLIMENTS ON YOUR PURCHASE!
600 mm 275 mm
600 mm 355 mm
Package includes:
- LL SPORT 4K with adjustable bracket
- User manual
Additional items needed:
- Data and power cables
- LL SPORT DRIVER DMX
- Mounting accessories as necessary
- DMX controler
Content:
01 SAFETY INFORMATION

01.1 Risk of eyes damage

01.2 Safety instructions

01.3 Fire protection

02 PRODUCT SPECIFICATION

02.1 Technical specification

02.2 Product Description
03 INSTALLATION
03.1 Unpacking
03.2 Physical Installation
03.3 Connection
03.4 Control Data Connection
04 MAINTENANCE AND SERVICE
ENVIRONMENTAL PROTECTION
Do not throw away the appliance with the normal household waste at the end of its
life, but hand it in at an official collection point for recycling. By doing this, you help to
preserve the environment.
©MMXVI - LEADER LIGHT – All right reserved
LEADER LIGHT s.r.o.

01 SAFETY INFORMATION

M.Gorkeho 33
052 01 Spisska Nova Ves
Slovakia
WARNING!!!
www.leaderlight.eu
Carefully read before installing, powering or servicing. Nothing to do if
anything misunderstand! Installation can be done only by a qualified
USER MANUAL
professional in accordance with relevant local codes.
01.1 Risk of eyes damage
-
Do not look directly into LED lamps.
-
Do not look into light beam from a distance of less than 40 cm (16 inches)!
01.2 Safety instructions
- Shut down power before installation or maintenance.
- Do not modify, alter, or attempt to service the LEADER LIGHT appliance. Doing
so will void the warranty.
- Appliance and recommended AC power supply must be installed by a qualified
professional in accordance with relevant local codes. Use only acceptable source
of AC power and frequency that complies with local biulding and electrical codes.
- Use only the recommended voltage source.
- Appliance always connect to earth (eltech.)!
600 mm 405 mm - Do not use or do not connect the products if the power cable, power plug or
fixtures are any way damaged, wet, or if they are overheating.
- Before removing or installing any cover or part of appliance disconnect it from AC
power.
- AC power supply must be protected against overvoltage and short circuits.
1pc.
01.3 Fire protection
1pc.
- Follow all safety restrictions.
- Thermostatic switches or fuses never to bypass.
- Device and ventilating slots never shield. Around the axis of the fitting (180°)
must be maintained space for cooling. Minimum distance from the surrounding
objects must be 100mm (4 in.).
- LEDs never direct cover with filters or other materials.
- Allowing max. ambient temperature is 40°C (104°F).
- Luminaries never use without mounting brackets. The housing never install directly
to the surface.
Non-minimum distance and / or non-use the original brackets is at your own risk!

02 PRODUCT SPECIFICATION

02.1 Technical specification
Power connection:
IP: IP20 or IP 67 on request
Ambient temp. (Ta): Standard: -30 ºC < T
Net weight: 250 W: 6,5 kg, 500 W: 13 kg, 750 W: 20 kg withou Driver
Installation: on surface/pendante with bracket
Power connection:
IP:
Control:
Ambient temp. (Ta): Standard: -30 ºC < T
Net weight: 250 W: 2,1 kg, 500 W: 3,6 kg, 750 W: 5,2 kg withou bracket
Installation: on surface or luminaire
LL SPORT 4K luminaire
use only with LL SPORT DRIVER, Input withe XLR 4 pin
< +40 ºC; Optional: +55 °C
a
LL SPORT DRIVER DMX:
AC 90 – 305 V, 47– 63 Hz;
setup time 15 ms,max. Inrush current 75 A / 240 V AC
IP20
DMX
< +40 ºC; Optional: +55 °C
a
Edition: A - 2016
!
02.2 Product description LL SPORT DRIVER
AC 90 – 305 V, DMX In DMX Out
47– 63 Hz Neutrik Neutrik
cable input 1,5 NC5F NC5M
m long
AC 90 – 305 V, DMX In DMX Out
47– 63 Hz Neutrik Neutrik
cable input 1,5 NC5F NC5M
m long
DMX Out
AC 90 – 305 V, DMX In
47– 63 Hz Neutrik Neutrik
NC5M
cable input 1,5 NC5F
m long
LL SPORT 4K Luminaire
Luminaire must be connect to Driver! Never connect direct to main power!
03 Installation
03.1 Unpacking
- Unpack carefully.
- This is electronic equipment and should be handled carefully.
- Damaged delivered package or if are any mechanical parts broken – it must be
claim immediately by the transport company. Photo pictures as evidence are
valuable for future claim.
03.2 Physical installation
- Loading capacity of bearing area has to be at least 10 times the weight of all
device clusters.
- Hairbreadth from combustible materials is 0,5m.
03.3 Connection
- Respect all SAFETY INFORMATION 01!
- Connect the ground (earth) !
- Connect the luminaire with Neutrik Speokon 4 pin to Driver lum. input.
It is not necessary to open the Driver box before power supply
- The fixture is equipped with auto-switching power supply that automatically
adjusts to any 47-63Hz AC power source from 90-305V.
- Cord plug connections:
Page 1 /2
DRIVER 250W
1 x Output to 250W luminaire
Neutrik Speakon 4 pin
NL4M
DRIVER 500W
2 x Output to 250W luminaire
Neutrik Speakon 4 pin
NL4M
DRIVER 750W
3 x Output to 250W luminaire
Neutrik Speakon 4 pin
NL4M
250 W / 500W / 750 W:
1x / 2x / 3x
cable 1,5 m long with NL4F
input to Driver
!
!
Symbol Pin Wire Colour Screw (US)
L live brown yellow or brass
N neutral blue silver
ground (earth) yellow/green green
Additional information on support@leaderlight.sk
