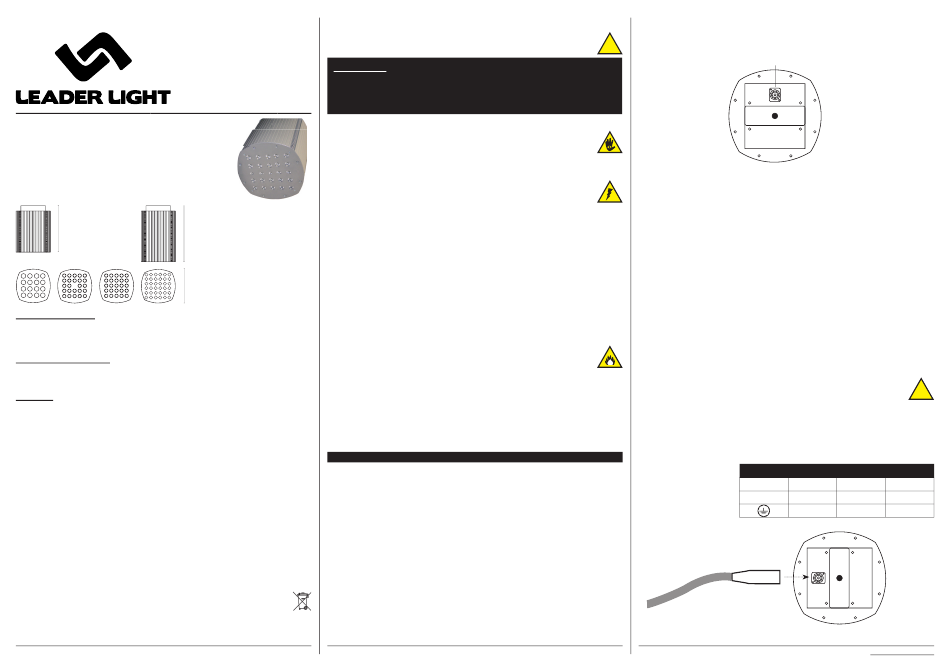

Leader Light LL HBDW PS21-NA-I20 Series User Manual

LL HBDW PS21-NA-I20 ...
COMPLIMENTS ON YOUR PURCHASE!
Dimensions
290 mm
350 mm
11.4"
13.8"
210 mm
8.3"
Package includes:
- LL HBDW PS21-NA-I20 with adjustable bracket
- User manual
Additional items needed:
- Mounting accessories as necessary
Content:
01 SAFETY INFORMATION

01.1 Risk of eyes damage

01.2 Safety instructions

01.3 Fire protection

02 PRODUCT SPECIFICATION
02.1 Technical specifi cation
02.2 Product Description
03 INSTALLATION
03.1 Unpacking
03.2 Physical Installation
03.3 Connection
04 MAINTENANCE AND SERVICE
ENVIRONMENTAL PROTECTION
Do not throw away the appliance with the normal household waste at the end of its
life, but hand it in at an offi cial collection point for recycling. By doing this, you help to
preserve the environment.
©MMXII - LEADER LIGHT – All right reserved

01 SAFETY INFORMATION

LEADER LIGHT s.r.o.
M.Gorkeho 33
052 01 Spisska Nova Ves
Slovakia
WARNING!!!
www.leaderlight.eu
Carefully read before installing, powering or servicing. Nothing to do if
anything misunderstand! Installation can be done only by a qualifi ed
USER MANUAL
professional in accordance with relevant local codes.
01.1 Risk of eyes damage
- Do not look directly into LED lamps.
- Do not look into light beam from a distance of less than 40 cm (16 inches)!
01.2 Safety instructions
- Shut down power before installation or maintenance.
- Do not modify, alter, or attempt to service the LEADER LIGHT appliance. Doing
so will void the warranty.
- Appliance and recommended AC power supply must be installed by a qualifi ed
professional in accordance with relevant local codes. Use only acceptable source
of AC power and frequency that complies with local biulding and electrical codes.
- Use only the recommended voltage source.
- Appliance always connect to earth (eltech.)!
- Do not use or do not connect the products if the power cable, power plug or
fi xtures are any way damaged, wet, or if they are overheating.
- Before removing or installing any cover or part of appliance disconnect it from AC
power.
- AC power supply must be protected against overvoltage and short circuits.
1pc.
01.3 Fire protection
1pc.
- Follow all safety restrictions.
- Thermostatic switches or fuses never to bypass.
- Device and ventilating slots never shield. Around the axis of the fi tting (180°)
must be maintained space for cooling. Minimum distance from the surrounding
objects must be 100mm (4 in.).
- LEDs never direct cover with fi lters or other materials.
- Allowing max. ambient temperature is 40°C (104°F).
- Luminaries never use without mounting brackets. The housing never install directly
to the surface.
Non-minimum distance and / or non-use the original brackets is at your own risk!

02 PRODUCT SPECIFICATION

02.1 Technical specifi cation
Power connection: 90-264V AC 47-63Hz In PowerCon connector
LED lifetime: 75.000 hours (70% lumen maintenance at T
IP: Indoor IP20
Ambient temp. (Ta): max. +40ºC
Cooling Conventional
Installation: Surface / suspended mounting with adjustable bracket
!
=25°C)
a
Edition: A - 2012
02.2 Product description
Power In with
PowerCon
03 Installation
03.1 Unpacking
- Unpack carefully.
- This is electronic equipment and should be handled carefully.
- Damaged delivered package or if are any mechanical parts broken – it must be
claim immediately by the transport company. Photo pictures as evidence are
valuable for future claim.
03.2 Physical installation
- Loading capacity of bearing area has to be at least 10 times the weight of all
device clusters.
- Hairbreadth from combustible materials is 0,5m.
03.3 Connection
- Respect all SAFETY INFORMATION 01!
- Connect the ground (earth) !
- It is not necessary to open the fi xture before power supply ! Power supply is
solved simple with PowerCon connector.
- The fi xture is equipped with auto-switching power supply that automatically
adjusts to any 47-63Hz AC power source from 90-264V.
- Cord plug connections:
Symbol Pin
L live
N neutral
ground (earth)
90-264V AC 47-63Hz In
PowerCon
Additional information on support@leaderlight.sk
Page 1 /
!
Wire Colour Screw (US)
brown yellow or brass
blue silver
yellow/green green
