Operating Instructions

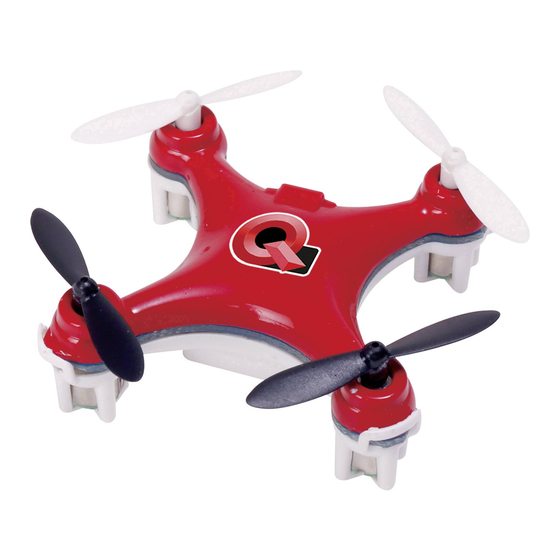

Electro-Quadrocopter "Q" RtF
Item No. 1526041

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q and is the answer not in the manual?

Questions and answers

Related Manuals for Reely Q

Summary of Contents for Reely Q

  • Page 1 Operating Instructions Electro-Quadrocopter “Q” RtF Item No. 1526041...

  • Page 2: Table Of Contents

    Table of Contents Page Introduction ................................4 Explanation of Symbols ............................4 Intended Use ...............................5 Product Description .............................5 Scope of Delivery ..............................6 Safety Notes ................................7 a) General ................................7 b) Before Commissioning ..........................7 c) During Operation ............................8 Battery and Rechargeable Battery Notes ......................9 a) Transmitter..............................9 b) Flight Battery ..............................9 Start Preparations ..............................10...
  • Page 3 Page 13. Maintenance and Repair ............................21 a) Regular Cleaning ............................21 b) Replacing the Rotors ...........................21 c) Calibration ..............................22 14. Disposal ................................22 a) Product ................................22 b) Batteries/Rechargeable Batteries ........................22 15. Declaration of Conformity (DOC) ........................23 16. Technical Data ..............................23 a) Transmitter..............................23 b) Quadrocopter ...............................23 c) USB Charger ...............................23...

  • Page 4: Introduction

    1. Introduction Dear Customer, thank you for purchasing this product. This product complies with the statutory national and European requirements. To maintain this status and to ensure safe operation, you as the user must observe these operating instructions! These operating instructions are part of this product. They contain important notes on commissioning and handling.

  • Page 5: Intended Use

    The product is intended for operation in closed rooms but may also be used outdoors in wind still conditions. The in- built electronic controls (integrated 6-axis gyro) can balance out small undesired changes to the flight altitude, but can- not remove them completely. As the "Q" quadrocopter weighs approx. 12 g, it reacts sensitively to wind or draughts.

  • Page 6: Scope Of Delivery

    5. Scope of Delivery • Pre-installed quadrocopter "Q" • Transmitter • USB charger • Two spare rotors (front) • Two spare rotors (rear) • Operating instructions Current operating instructions Download the current operating instructions via the link www.conrad.com/downloads or scan the QR code displayed.

  • Page 7: Safety Notes

    6. Safety Notes In case of damage caused by non-compliance with these operating instructions, the warranty/ guarantee will expire. We do not assume any liability for consequential damage! We do not assume any liability for property damage or personal injury caused by improper use or non-compliance with the safety instructions! In such cases the warranty/guarantee is voided.

  • Page 8: C) During Operation

    • Ensure sufficient residual capacity (battery tester) of the batteries inserted in the transmitter. If the bat- teries are empty, always replace the complete set, never individual cells only. • When the rotors are running, make sure that neither objects nor body parts are in the rotating and suction area of the rotors.

  • Page 9: Battery And Rechargeable Battery Notes

    7. Battery and Rechargeable Battery Notes Although use of batteries and rechargeable batteries in everyday life is a matter of course today, there are many dangers and problems. In particular in LiPo/LiIon batteries with high energy content (as compared to conventional NiCd or NiMH batteries), various provisions must be complied with to avoid danger of explosion and fire.

  • Page 10: Start Preparations

    • Place the model on a fire-resistant surface for charging (e.g. a plate). Keep a distance to flammable objects (use USB extension cable if required). • As the charger and the rechargeable LiPo flight battery both heat up during the charging procedure, it is necessary to ensure sufficient ventilation.

  • Page 11: B) Charge Flight Battery

    b) Charge Flight Battery A suitable USB mains unit or USB cigarette lighter adapter (neither enclosed) may be used for power supply to the enclosed USB charger; they each must have an output current of at least 500 mA. Alternatively, the USB port of a computer or USB hub with a dedicated mains unit can be used as well that can supply a current of 500 mA per port.

  • Page 12: Operating Elements Of The Transmitter

    9. Operating Elements of the Transmitter Figure 3 1 On/off switch 2 LED for function control 3 Left control stick (motor speed and yaw) 4 Right control stick (roll and nod) 5 Roll trimming 6 Nod trimming...

  • Page 13: Safety Devices

    10. Safety Devices The quadrocopter “Q” has a range of safety devices in the transmitter and flight model which protect the model from damage and/or should reduce possible damage to a minimum. The protection mechanisms are identified by LED indicators (flight model) or an acoustic warning signal (transmitter).

  • Page 14: Information For First Take-Off

    11. Information for First Take-Off a) Hover Flight For a simpler and consistent explanation of steering, classic terminology is used here as well. This comes from flight language and is widely used. Directional descriptions are always to be interpreted from the perspective of a "virtual" pilot in the model. The two black rotors are considered direction indicators.

  • Page 15: B) Yaw Function

    b) Yaw Function "Yaw" denotes the rotation of the quadrocopter around the yaw axis (vertical axis). This movement either occurs unin- tentionally due to the speed torque of the rotors or intentionally as a flight direction change. This movement is caused by speed changes of the individual rotors towards each other in the quadrocopter.

  • Page 16: D) Roll Function

    d) Roll Function "Roll" denotes the movement around the centre line which can be compared to the sideways rolling of a ball (or the sideways crawl of a crab). In this way, through lifting one side the quadrocopter moves independent of its forward direction to the side.

  • Page 17: The First Start

    12. The First Start a) Start The operation and handling of remote controlled flight models must be learned! If you have never steered such a model, start especially carefully and get used to the reactions of the model to the remote control commands first.

  • Page 18: B) Flight Movements

    • Start the rotors by slowly moving the left control stick forward. If you want to switch off the rotors again, pull the left control stick back again. • Now increase the rotating speed of quadrocopter rotors by pushing the left control lever forward slowly until the quadrocopter takes off and hovers in front of you at a height of approx.

  • Page 19: C) Trimming

    c) Trimming In the course of flight operation, it is possible the quadrocopter will not hover in place but drift off in one direction (e.g. forward). In this case, the model must be returned to the condition where the quadrocopter hovers in place by trimming.

  • Page 20: D) Flip Function

    d) Flip Function The model can perform a flip (a 360° turn). For this, put the quadrocopter into a stable hover flight at an altitude of at least 1.5 metres at sufficient distance from the pilot and any obstacles. Push the right control stick vertically down (push the control stick like a button). The transmitter will emit a control sound at an even rhythm to confirm that you have chosen flip mode.
  • Page 21 13. Maintenance and Repair a) Regular Cleaning The quadrocopter "Q" is a very simply built flight model. There are no mechanical parts that need to be lubricated or require special maintenance. However, after each flight operation, you should clean the quadrocopter of possible contamination (wool threads, hair, dust etc.).
  • Page 22 Calibration The quadrocopter "Q" is delivered calibrated perfectly ex works. After harder landings or crashes, it is possible that the quadrocopter will no longer fly as usual. In this case, you should recalibrate the quadro- copter. For this, put the quadrocopter onto a level surface ready to start. Select professional mode by pushing the left control stick several times until you can hear three control sounds.
  • Page 23 15. Declaration of Conformity (DOC) Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau, hereby declares that this product complies with directive 2014/53/EU. The complete text of the EU declaration of conformity is available under the following web address: www.conrad.com/downloads Choose a language by clicking a flag symbol and enter the item number of the product into the search field; then you may download the EU declaration of conformity in the PDF format.
  • Page 24 This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication represent the technical status at the time of printing.
