Summary of Contents for Happy Beds Rodley

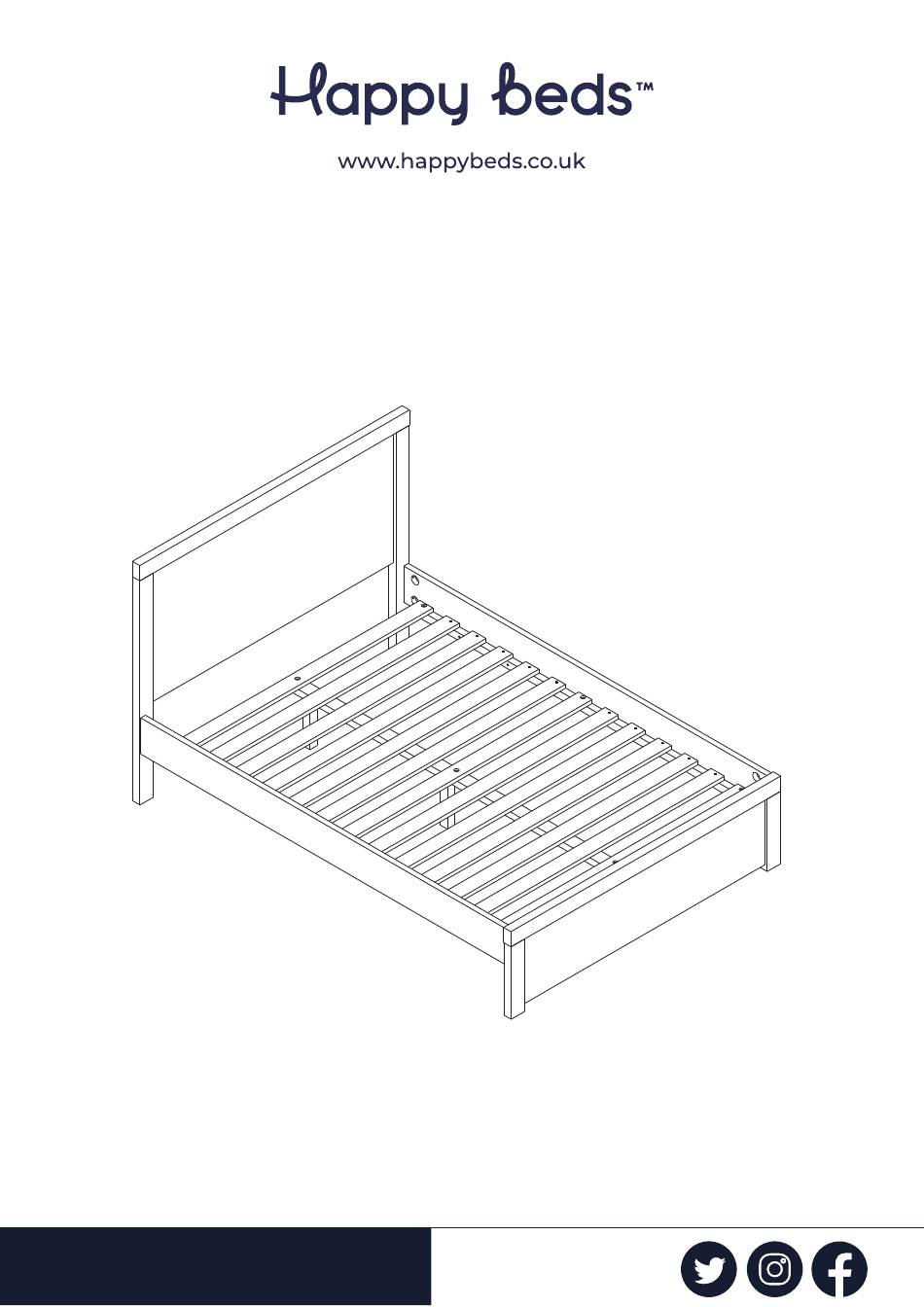

- Page 1 Assembly Instructions Rodley Standard Bed @ h a p p yb e d s www . h a p py b e d s . c o . u k @ h a p p y b e d s...
- Page 2 Thank you for purchasing with Happy Beds! Important before assembly: Please read these instructions carefully before assembling or using the product. Please check the contents of each box before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 3 w w w . h a p p y b e d s . c o . u k @ h a p p yb e d s...
- Page 4 No Part List No Part List Side rails 2 pcs Inner panel for headboard 1 pc End & central wooden slats LH headboard leg 1 pc 3 pcs RH headboard leg 1 pc Normal wooden slats 10 pcs Centre support rail Top rail for headboard 1 pc 1 pc...
- Page 5 Step 1: 6 pcs Dowel (Ø8x30mm) Step 2: Cam bolt 13 pcs Page 7 of 12...
- Page 6 Step 3: 6 pcs Cam lock Step 4: Cam lock 7 pcs Page 8 of 12...
- Page 7 Step 5: Threaded stud 8 pcs (M8x90mm) Step 6: 8 pcs Dowel (Ø8x30mm) Page 9 of 12...
- Page 8 Step 7 : Spring washer for M8 stud Nuts for M8 stud 8 pcs 8 pcs Spanner for M8 nuts 1 pc Half-moon bracket 8 pcs 8 pcs Flat washer for M8 stud X mm Y mm P G E Page 10 of 12...
- Page 9 Step 8: Allen key for 9 pcs 20 pcs Bolts (M8x25mm) M8 bolts Spring Washer for 1 pc 9 pcs M8 bolts Flat Washer for 9 pcs M8 bolts Page 11 of 12...
-
Page 10: General Care And Maintenance
Technical Specifications Overall Dimensions (LWH cm) Double: 200.8 x 143 x 110 King: 210.8 x 158 x 110 Internal Dimensions (LW cm) Double: 193 x 137 K ing: 203 x 153 Distance between slats (cm) Double: 70.5 King: 79 Slat Dimension (cm) Double: 136.7 x 7 x 1.8 King: 151.7 x 7 x 1.8...
