Happy Beds Rodley Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Happy Beds Manuals
  4. Indoor Furnishing
  5. Rodley
  6. Assembly instructions manual

Happy Beds Rodley Assembly Instructions Manual

Ottoman bed
Hide thumbs Also See for Rodley:

Advertisement

Quick Links

Download this manual
Assembly Instructions

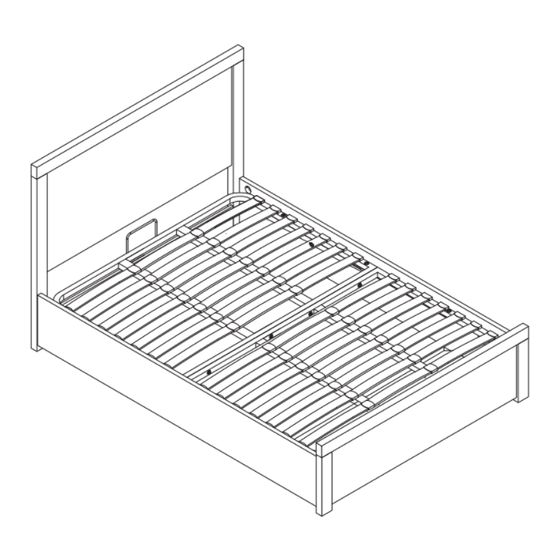

Rodley Ottoman Bed
Small Double Size
Single Size
Double Size
King Size
Super King Size
@ h a p p yb e d s
w w w . h a p p y b e d s . c o . u k
@ h a p p y b e d s

Advertisement

loading
Need help?

Need help?

Do you have a question about the Rodley and is the answer not in the manual?

Questions and answers

Related Manuals for Happy Beds Rodley

Summary of Contents for Happy Beds Rodley

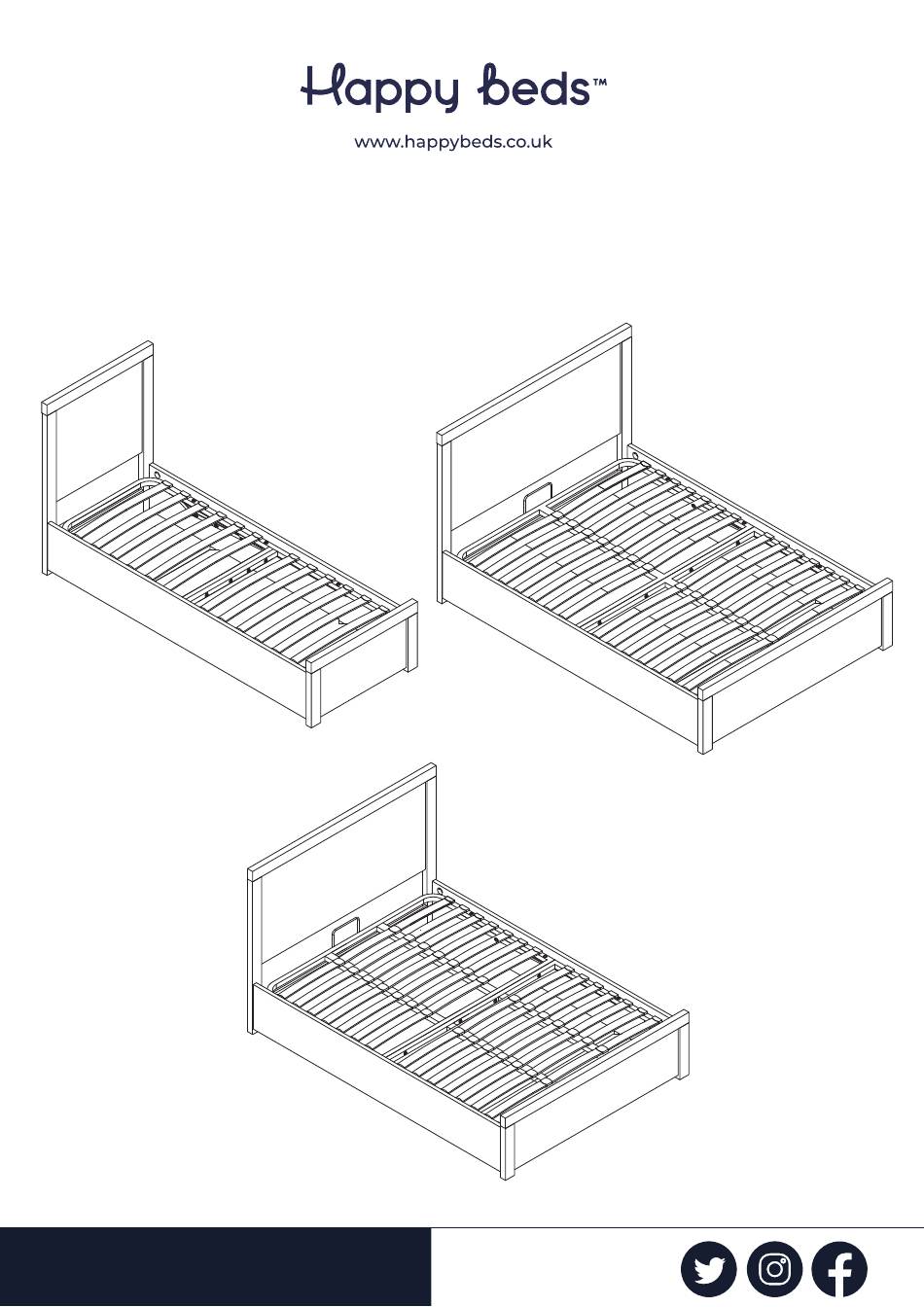

  • Page 1 Assembly Instructions Rodley Ottoman Bed Small Double Size Single Size Double Size King Size Super King Size @ h a p p yb e d s w w w . h a p p y b e d s . c o . u k...
  • Page 2 Thank you for purchasing with Happy Beds! Important before assembly: Please read these instructions carefully before assembling or using the product. Please check the contents of each box before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
  • Page 3 w w w . h a p p y b e d s . c o . u k @ h a p p yb e d s...

  • Page 4: Health And Safety

    Health & Safety: This product or some parts of this product will be heavy. Please use an assistant when lifting. Please keep small parts out of reach of children. Always use on a level, even surface. DO NOT jump on the product or any of its parts. DO NOT use this product if any parts are missing, damaged or worn.
  • Page 5 Part List Part List 1 pc Inner Panel For Headboard 1 pc Metal Slat Frame - Footend 1 pc LH Headboard Leg 1 pc Mattress Stopper Fabric Handle 1 pc RH Headboard Leg 1 pc Lift Mechanism - LH 1 pc Top Rail For Headboard 1 pc 1 pc...
  • Page 6 HARDWARE NEEDED FOR BED ASSEMBLY (PACK B) HARDWARE NEEDED FOR HEADBOARD ASSEMBLY (PACK A) Hardware List Hardware List Single 16 pcs 8 pcs Dowel (Ø8x30mm) Small Double Cam bolt 17 pcs Double & King Super King Threaded stud 18 pcs 8 pcs (M8x90mm) Single...
  • Page 7 Step 1: Dowel 10 pcs Step 2: 16 pcs Single Small Double Cam Bolt 17 pcs Double & King Single 18 pcs Super King Small Double Double King Super King Page 8 of 18...
  • Page 8 Step 3: 10 pcs Cam Lock Bx10 6 pcs Single Small Double Step 4: Double & King Small Double Cam Lock 7 pcs Double & King 8 pcs Super King Single Super King Page 9 of 18...
  • Page 9 Step 5: Threaded stud 8 pcs Spring Washer 4 pcs (M8x90mm) Bolts (M8x35mm) 4 pcs Flat Washer 4 pcs Allen Key 1 pc Only for Super King Size & Step 6: Dowel 8 pcs Bolts (M8x35mm) 4 pcs Flat Washer Spring Washer 4 pcs 4 pcs...
  • Page 10 Step 7: Half-moon bracket Nuts for M8 stud 8 pcs 8 pcs Flat Washer Spring Washer 8 pcs 8 pcs Spanner for M8 nut 1 pc HS G E Step 8: Flanged M8 lock-nuts 4 pcs for gas-lift piston Spanner for flanged 1 pc M8 lock-nuts Page 11 of 18...
  • Page 11 Step 9: Flat Washer Allen Key 8 pcs 1 pc Bolt (M8x35mm) 8 pcs & Step 10a: Flat Washer Nut for M8 bolt 4 pcs 8 pcs For Single Size Allen Key 1 pc Spanner 1 pc Bolts (M8x76mm) 4 pcs Page 12 of 18...
  • Page 12 Step 10b: Flat Washer Nut for M8 bolt 4 pcs 8 pcs For Small Double, Double & King Size Allen Key 1 pc Spanner 1 pc Bolts (M8x76mm) 4 pcs Step 10c: Flat Washer Nut for M8 bolt 4 pcs 8 pcs For Super King Size Allen Key...
  • Page 13 Step 11a: For Single Size Press down Step 11b: For Small Double, Double & King Size Small Double Size: x12 sets Double Size: x12 sets King Size: x14 sets Press Press down down Page 14 of 18...
  • Page 14 Step 11c: For Super King Size Press Press down down Step 12: 16 pcs 16 pcs Single Single Screw Small Double Small Double Plastic feet 20 pcs 20 pcs (Ø8x28mm) Double & King Double & King 32 pcs 32 pcs Super King Super King Single Size...
  • Page 15 Step 13: Flat Washer L Support Bracket 2 pcs 4 pcs 4 pcs Spring Washer Allen Key 1 pc Bolts (M8x16mm) 9 x4 Step 14: Flat Washer Nut for M8 bolt 6 pcs 12 pcs Allen Key Spanner 1 pc 1 pc Bolts (M8x50mm) 6 pcs...
  • Page 16 WARNING: ONLY USE THE HANDLE TO LIFT & TO AVOID ACCIDENTS LOWER THE BED FRAME TO TO ACCESS THE STORAGE AREA THE OTTOMAN FRAME MUST BE FULLY OPENED AND THEN FULLY CLOSED AFTERWARDS AVOID TRAPPING FINGERS! Note: Be very careful what you store under the bed - the top of an item, like a touch the slats or they may...

  • Page 17: General Care And Maintenance

    Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the pieces across the floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty.
