Important before assembly:
Read these instructions carefully before assembling or using the product.
Please check the contents of the boxes before attempting to assemble this product. The instructions will
have a checklist of parts and fittings.
Assemble the product as close to its intended final location/room as possible.
Health & Safety:
This product or some parts of this product will be heavy. Please use an assistant when lifting.
Please keep small parts out of reach of children.
Always use on a level, even surface.
DO NOT jump on the product or any of its parts.
DO NOT use this product if any parts are missing, damaged or worn.
DO NOT use this product unless all fixings are secured.
Further instructions are on the following pages.
Please keep these instructions for future reference.

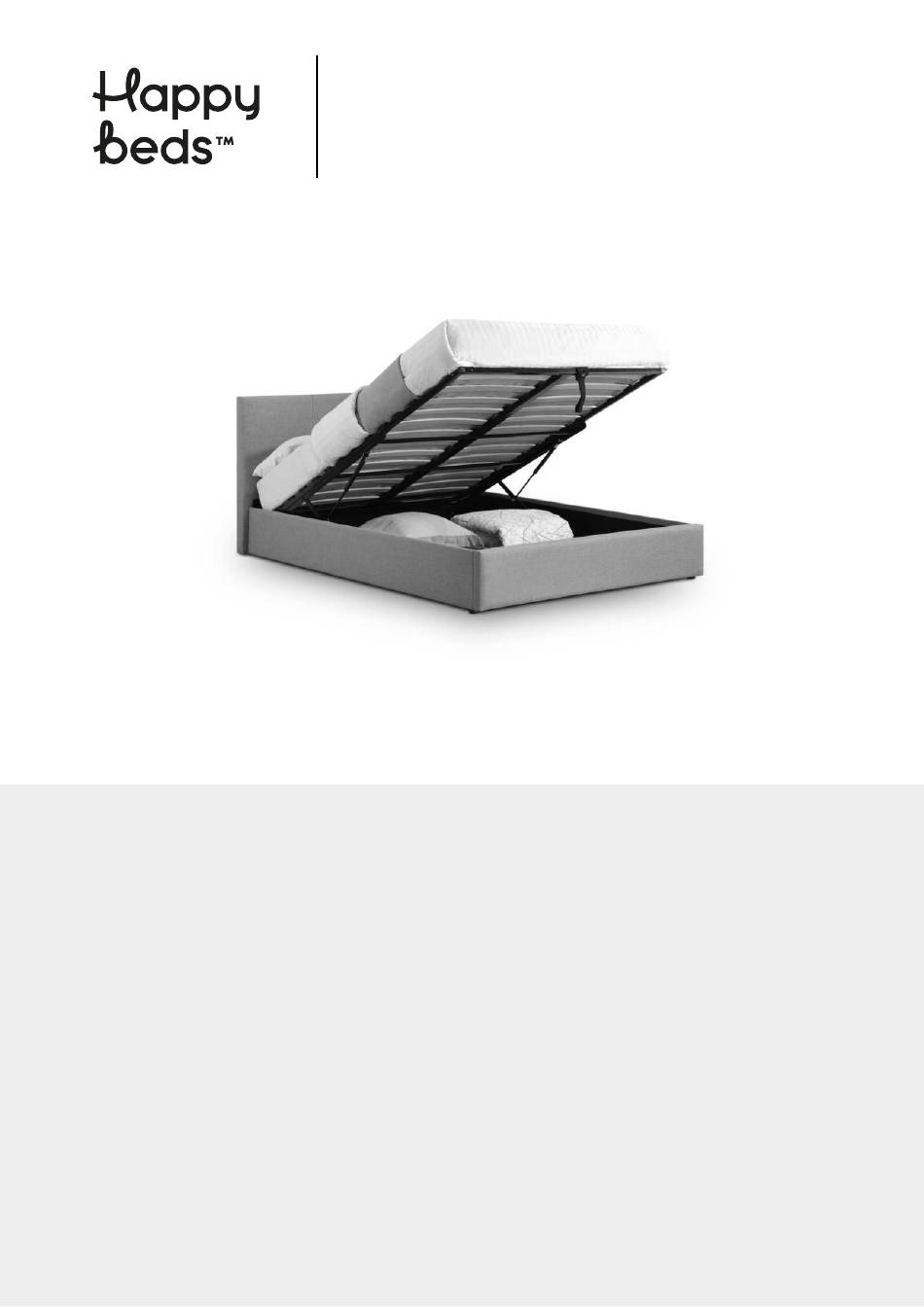

Rialto Ottoman Bed -
4ft6 & 5ft
Assembly Instructions
.
www.happybeds.co.uk
Advertisement
Related Manuals for Happy Beds Rialto
Summary of Contents for Happy Beds Rialto
- Page 1 Rialto Ottoman Bed - 4ft6 & 5ft Assembly Instructions Important before assembly: Read these instructions carefully before assembling or using the product. Please check the contents of the boxes before attempting to assemble this product. The instructions will have a checklist of parts and fittings.
- Page 2 These tools are not necessary, but may help to assemble the product. Do NOT use any power tools as this may damage the frame. (Not metal) This product or some parts of this product will be heavy. Please use an assistant when lifting. Never drag or push the pieces across a hard or stone floor as this will cause damage to the joints.
- Page 3 HARDWARE M8 x 25mm (12 PCS) NUT (2 PCS) M6 x 30mm (6 PCS) M6 x 15mm (12 PCS) M6 x 68mm (2 PCS) FLAT WASHER (12 PCS) 5mm ALLEN KEY (1 PC) SPRING WASHER (12 PCS) 4mm ALLEN KEY (1 PC) SPANNER (1 PC) PARTS...
-
Page 4: Safety Advise
Safety Advise Please take the time to carefully read through the whole of these instructions before you commence. Keep these instructions for future reference. Unpack, inspect and check off all of the contents. Please dispose of all packaging safety. Small component part could choke a child if swallowed. We strongly recommend that you keep children well away from the work area. - Page 5 Attaching side rails to headboard. & Repeat step 1 for footboard. Before tightening the bolts, please ensure the bed frame is square.
- Page 6 Fix corner brackets, then repeat for other 3 corner brackets in each corner of the bed frame. & Fix holding block on back of footboard...
- Page 7 Secure hydraulic arms Before connecting the hydraulic arm, ensure the lifting mechanism is functioning correctly - it should lift up and down freely with adequate clearance on all sides. DO NOT OVERTIGHTEN THE NUTS ! Assemble the base 3&4...
- Page 8 Attach non-woven fabric dust cover rst, then adjustable legs. Assemble slats...
- Page 9 Attach belt to the metal frame by loop-on method as shown, pull tight after loop-on. Place the mattress onto the frame. (MATTRESS NOT INCLUDED) Notes: It is imperative that the bed is aligned squarely to prevent the frame from catching on and damaging the upholstered side rails. Please use extra caution when opening and closing the bed, ensure a similar spacing on each side of the frame.
- Page 10 Important for Ottoman and other gas lift beds Please follow these final steps to ensure the best experience with your new bed • Please ensure the pistons are fitted to the bed frame. • Please place the mattress on top of the bed frame. •...
-
Page 11: General Care And Maintenance
Please dispose of all packaging safely. General Care & Maintenance Wipe clean with a slightly damp cloth. Avoid the use of all household cleaners and abrasives. Periodically check all screw & fixings to ensure they are secure. When moving your product, carefully lift into place. Never drag or push the product across the floor as this will cause damage to the joints.
