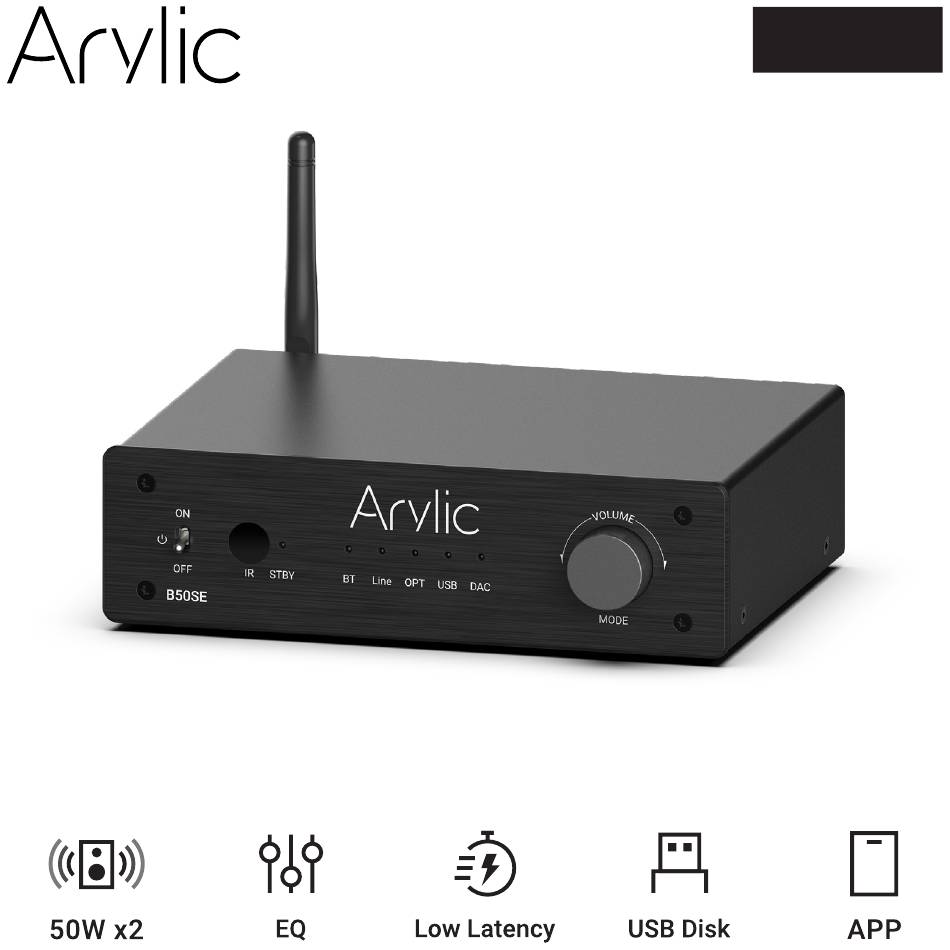

- Page 1 B50SE User's Manual Wireless Stereo Amplifier...
-
Page 3: Table Of Contents
Table of contents 1. Introduction ............................1 2. What's in the box ...........................1 3. Interface ...............................2 4. Remote Controller ..........................3 5. Installation .............................4 6. Connection ............................5 6.1 Passive Speakers ..........................5 6.2 Line in .............................6 6.3 Optical in ............................6 6.4 USB Disk Drive ..........................7 6.5 Connect to PC ..........................7 7. -
Page 4: Introduction
B50SE also support USB disk drive playback with resume playback function and direct connect to PC as DAC. You can control B50SE with remote controller or with our free mobile application for both Android and iOS system, that lets you have full control on the device plus user friendly EQ system. -
Page 5: Interface
3. Interface Turn on/off power of device. IR sensor: For IR remote controller to control the device. Status LEDs: LEDs indicate current status/input source. When BT LED is flashing, it indicates the device is in BT Receiver (RX) mode and is waiting for connection. - Page 6 12 13 DC input: Please use the power adaptor comes with the package, using other power adaptor might damage the device. Speaker out banana plug: For connection to 4-8ohm passive speakers. Line input connector: For connection to device with line output. Subwoofer output connector: For connection to active subwoofer.
-
Page 7: Remote Controller
4. Remote Controller... -
Page 8: Installation
5. Installation Install both antennas to the device and plug in the power adaptor. (Please make sure power is off before connecting.) DC input 6. Connection 6.1 Passive Speakers Use speaker cable to connect the device to your passive speakers. Speaker... -
Page 9: Line In
6.2 Line in Connect any playback device with Audio out/Line out/AUX out to Line in using an RCA cable. Line in 6.3 Optical in Connect any playback device with Optical out to Optical in using an optical cable. Optical in... -
Page 10: Usb Disk Drive
6.4 USB Disk Drive Plug in USB disk drive to the USB Host to play music. 6.5 Connect to PC Connect PC with a USB Type-C cable. Please make sure this cable is a Data link cable and not just a charging cable, or else your PC will not recognize the device. -
Page 11: Usage
In your BT transmitter device (Mobile Phone, Pad, TV) you can search for a Bluetooth device name “B50SE XXXX” (XXXX is the serial number) and connect to it. Once connected, the BT LED will stay on which indicates the connection is successful and you can start playing music from the connected device and hear the sound coming out of the connected passive speakers. -
Page 12: Line In Mode
7.2 Line in Mode You can connect any analog device with line out to B50SE. You will need to switch to Line in mode with the Mode button on the device, use the remote controller or in the Go Control APP. The Line LED will turn on when B50 is Line in mode. -
Page 13: Usb Disk Drive Playback Mode
If you have many music files and you want to play them, you can store them in a USB disk drive and playback from B50SE. Just plug in the USB disk drive with music files and B50SE will auto switch to USB Mode and playback the music. -
Page 14: Usb Dac Mode
Some charging cable is only for battery charging and does not contain data link to transfer data. You will need to select B50SE as the sound output device in your PC for it work. Look for the device name call “Up2Stream USB Audio” and connect to it. -
Page 15: Mobile Application
9. Mobile Application Go Control is a user-friendly control application for B50SE. You can easily take control of the device without complicate configuration, Go Control will automatically detect close by B50SE device and connect to it. Go Control lets you do playback... -
Page 16: Specification
10. Specification Bluetooth Bluetooth Standard Codec AAC, SBC Amplifier Amplifier Power 50W x2 @ 24V 4Ω / 30W x2 @ 24V 8Ω Speaker Impedance 4-8Ω Frequency Response 20Hz to 20kHz THD+N <0.1% @ 1W 1kHz >93dB @ Max Power Audio I/O Line in Analog RCA, Max 2Vrms input Optical in... - Page 18 ©Copyright 2023 by Arylic. All Rights Reserved. The information contained in this guide is believed to be accurate and reliable. Arylic assumes no responsibility for any errors contained in this guide. Arylic reserves the rights to make changes in the specifications and/or design of the above mentioned product without prior notice.
