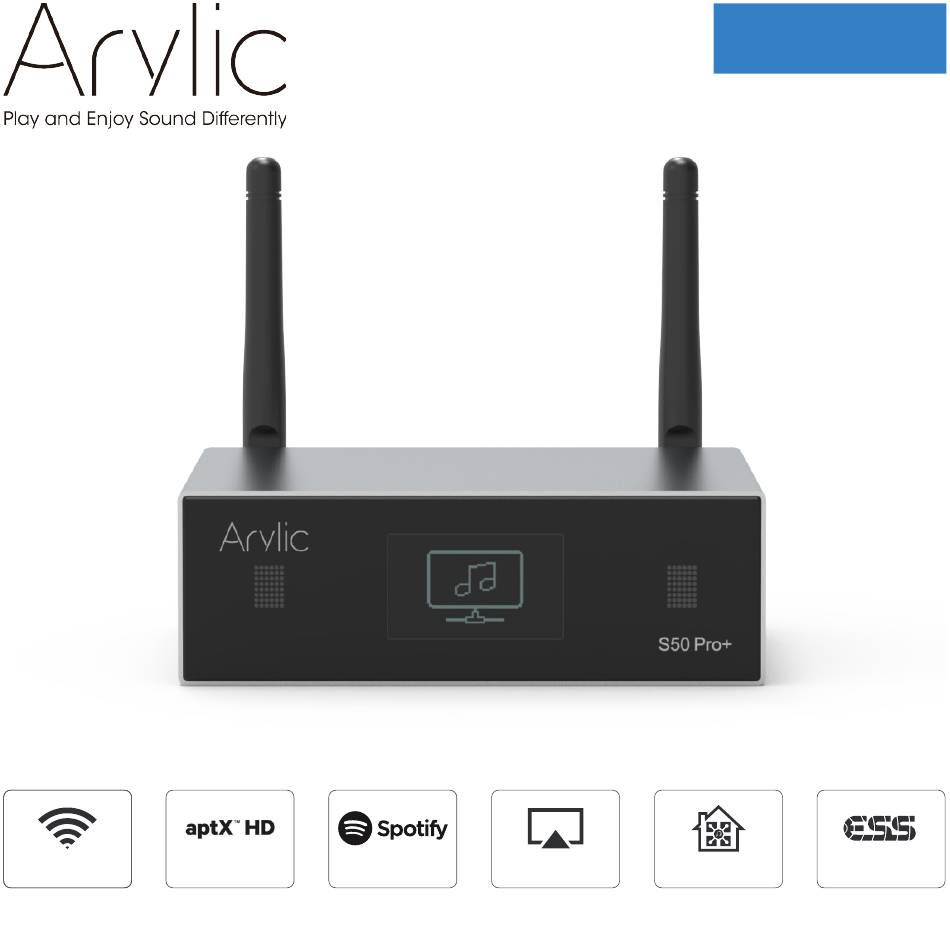

- Page 1 S50 Pro+ User's Manual Wireless Streaming Preamplifier WiFi aptX HD Spotify AirPlay Multi-Room ESS SABRE www.arylic.com...
-
Page 3: Table Of Contents
Table of Contents 1. Introduction ..............................1 2. What's in the box .............................1 3. Main Features ............................2 4. Specification ............................3 5. Interface..............................4 6. Remote controller ............................5 7. Connection diagram ..........................6 8. How to use...............................6 8.1 App download ............................6 8.2 Connection ............................7 8.2.1 Option 1 - Connection via app ....................7 8.2.2 Option 2 - Connection via LAN ....................9 8.2.3 Option 3 - Bluetooth pair ......................9... -
Page 4: Introduction
1. Introduction S50 Pro+ is a highend audio streaming preamplifier with network and Bluetooth aptX HD connectivity. Applying S50 Pro+ to your current stereo system will enable you to stream music from your smart device, USB, NAS or streaming services, such as Spotify, Tidal or Qobuz in high resolution by 4STREAM App, AirPlay, Bluetooth or other third party compatible apps. -
Page 5: Main Features
3. Main Features - Streaming music via network without distance limitation or Bluetooth5.0 up to 15 meters. - Bluetooth 5.0 aptX HD for true high resolution music. - Spotify connect, Airplay, Qplay, DLNA, UPnP streaming protocols supported. - Support streaming source from online services, smart device memory, USB pen drive, NAS, Bluetooth and line in. -
Page 6: Specification
4. Specification Wireless network IEEE802.11 b/g/n 2.4G Ethernet Single 10/100M RJ45 Connectivity Bluetooth 5.0 Qualcomm aptX-HD USB Host Play music from USB pen drive Frequency response 20Hz to 20kHz Coaxial output Digital output Optical output Analog output 1x RCA, 1x Subwoofer Audio input 1x RCA, 1x Optical in Power supply... -
Page 7: Interface
5. Interface LED: To show the device status. Display Panel: Display status info. IR Receiver: For remote control. Trigger: 12V trigger output to use with other device. Reset: Short press to switch source input. Quickly press twice to reset WiFi/Bluetooth connection. Quickly Press three times to do factory reset. -
Page 8: Remote Controller
6. Remote Controller... -
Page 9: Connection Diagram
7. Connection Diagram Analog device Active Subwoofer Analog device Digital device audio Audio RCA output Audio RCA input Coax/Optical input Smart Phone Smart Tablet Smart Phone Smart Tablet Digital device audio Optical output Windows PC iMAC Windows PC iMAC BT Connnect Wi-Fi Connnect Wi-Fi DC input... -
Page 10: Connection
8.2 Connection 8.2.1 Connection via app 1. Power the device. 2. Connect your mobile devices to your network. 3. Go for mobile device WLAN settings> Connect mobile device to hotspot SoundSystem_xxxx you will see a WiFi logo .(short press the reset button if the hotspot is not found). - Page 11 *Attention for Android users. Different Brand Mobile Phones May ask you to Allow to Use SoundSystem WiFi Network, Please Choose yes, If not, You may Not Able to Set up Successfully.
-
Page 12: Option 2 - Connection Via Lan
8.2.2 Connection via LAN Plug in the wired cable to the RJ45 Ethernet, the device will show on the app in about 10 seconds. (Note: The mobile phone and the device must be in the same network) 8.2.3 Bluethooth To use Bluetooth, please swtich to bluetooth via app or by remote controller, then find bluetooth device SoundSystem from your phone bluetooth setting and pair it . -
Page 13: App Features
8.3 App Features 8.3.1 Device setting Rename: Change the device name. Speaker info: Display device information like IP address, Mac address, SSID, firmware version, factory reset, etc. Alarm Clock: Setup up to 4 different alarm clocks with music of your choice. Preset Content: 10 Preset content buttons. -
Page 14: To Play Music From Nas
8.3.3 To Play Music From NAS Please note that our system only support NAS with DLNA feature. 8.3.4 To Play Line in Mode Connect the AUX cables to the TV or other audio sources. Choose line in mode on the application or remote control. 8.3.5 To Play Bluetooth Mode Choose the Bluetooth mode on the application or remote control, the LED will change to blue. -
Page 15: Streaming Services
8.4 Streaming Services To use the online streaming services, iHeartRadio, Spotify, Tidal, Qobuz and Deezer may need to register account at the service provider platform. 8.4.1 Spotify To use Spotify, you have to own spotify premium account. You will find the device in the device list on the Spotify application and choose the device you want to play. NOTE: one Spotify account can only streaming to one device at a time. -
Page 16: Airplay
8.4.2 AirPlay The Device Supports AirPlay1, You can Choose the AirPlay and Play Music. 8.4.3 Qplay Our Devices Support QQ Music using the Qplay protocol, you have to turn on the Qplay in the QQ Music player setting and then find the device in the Qplay list. 8.5 Multiroom and Multizone Users can group multiple rooms and zones on the Master... -
Page 17: Left And Right Channel
8.6 Left and Right Channel Users can choose the right channel or left channel or stereo mode on the application, or choose left channel on device A and choose right channel on device B, and group them together and play in sync to make stereo. 8.7 Preset There are 6 buttons on the remote control, users can preset play lists (Only the lists with speaker icon can preset) on... -
Page 18: Restore Factory Setting
8.9 Restore Factory Setting Two methods to restore device to factory setting Method 1: Quickly press the reset button 3 times to restore factory settings. Method 2: Go for "App setting - speaker info - restore factory setting" 8.10 Firmware Update The application will notify you in app when there is a new fireware version available. -
Page 19: To Play Music From Windows Pc Via Foobar2000
9.2 To Play Music From Windows PC via Foobar2000 Our Devices Support UPnP Protocol, With the Popular Foobar2000, You can Play Music from Windows PC to Our Devices. Please follow the steps below: 1. Download the Foobar2000 and install it. 2. -
Page 20: Web Player Interface
10. Web Player Interface You can access the web player interface by entering the ip address of the device to a web broswer. *You can find the device ip address by clicking on device setup icon, then select Speaker Info. You can control the volume, Play/Pause, previous/next song, repeat and shuffle function for songs or station you currently playing or access the preset songs/stations you have setup. - Page 21 In the setup menu, you can do couple of things: * When entering the setup interface, a admin password is required. The default password is: admin - Manual update the device firmware - Change the Device Name - Setup WiFi connection - Setup Static IP Address - Change Admin password **If you want to setup the WiFi connection for the first time without using other method.
-
Page 22: Faq
Q: Do your devices support airplay and third-party DLNA apps? A: Yes. They support airplay and third-party apps like foobar2000, musicbee... Q: How many zones can you group in one system? A: 12 rooms is the maximum, while 8 zones are recommended. Q: What distance can your wireless audio system cover? A: Once the system is connected to your WiFi router, you can stream your music anywhere there is a WiFi signal. - Page 24 The information contained in this guide is believed to be accurate and reliable. Arylic assumes no responsibility for any errors contained in this guide. Arylic reserves the rights to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this guide may also not fully represent the product that you are using and they are for illustration purposed.
