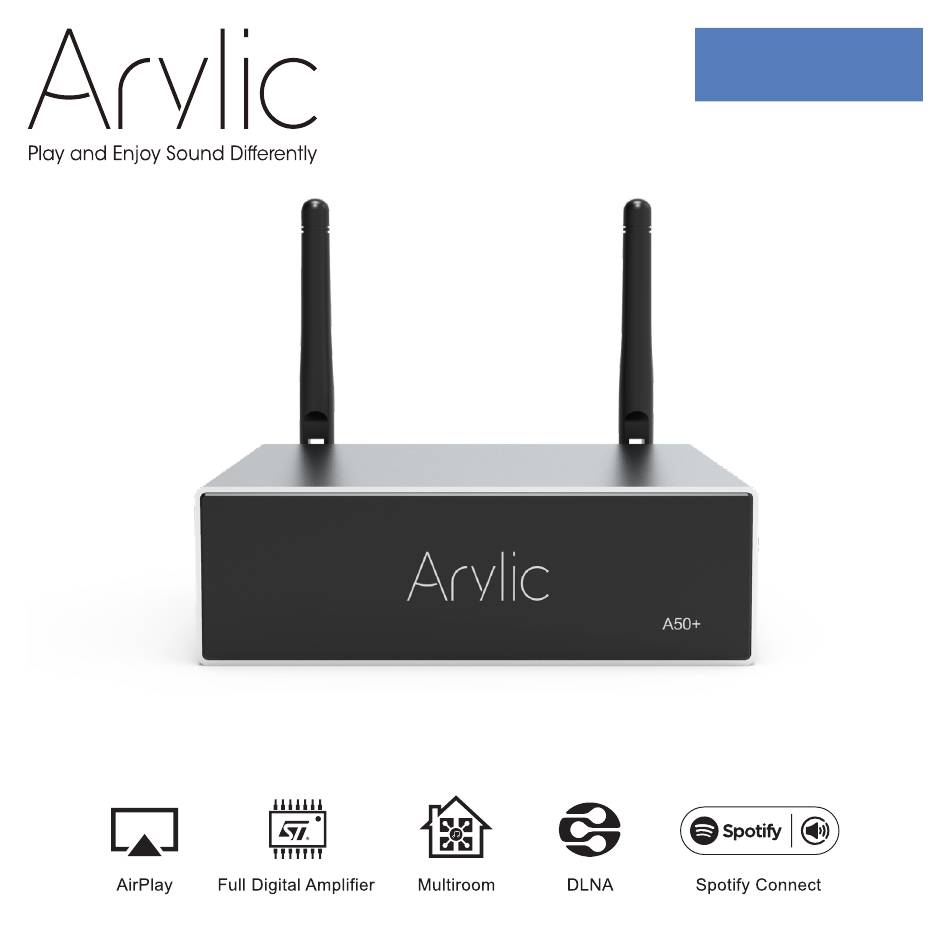

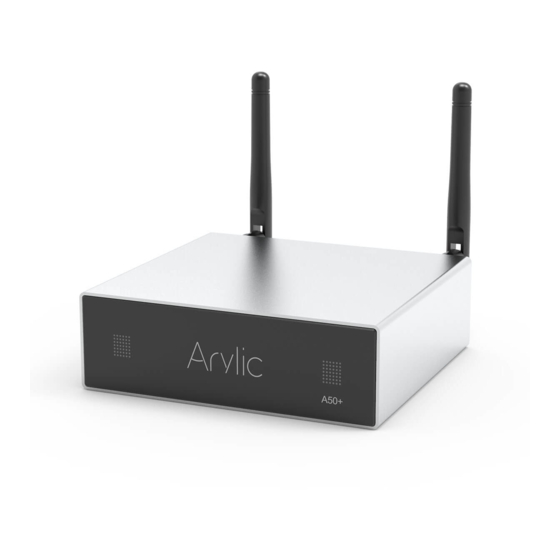

- Page 1 A50+ User's Manual Wireless Multiroom Full Digital HiFi Amplifier www.arylic.com...
-
Page 3: Table Of Contents
Table of contents 1. Introduction .................................... 1 2. What's in the box .................................. 1 3. Main Features ..................................2 4. Specification ................................... 3 5. Interface ....................................4 6. Remote controller ................................5 7. Connection diagram ................................6 8. How to use ....................................6 8.1 App download ................................ -
Page 4: Introduction
1. Introduction A50+ is a WiFi and Bluetooth 5.0 amplifier. Adding A50+ to your current stereo system will enable you to stream music from your smart device, USB, NAS or streaming services, such as Spotify, Tidal, Deezer, Qobuz, Amazon Music and others by 4STREAM App, AirPlay, Bluetooth or other DLNA apps. Adding more units to your home audio system can set up a wireless multiroom or multizone whole house audio system, it will give you totally new and great experience to play and enjoy your music. -
Page 5: Main Features
3. Main Features - 50Wx2CH@4ohm, 30Wx2CH@8ohm full digital amplifier. - Streaming music via network without distance limitation or Bluetooth5.0 up to 15 meters. - Bluetooth for true high resolution music. - Spotify connect, Airplay, Qplay, DLNA, UPnP streaming protocols supported. - Support streaming source from online services, smart device memory, USB pen drive, NAS, Bluetooth and line in. -
Page 6: Specification
4. Specification Wireless network IEEE802.11 b/g/n 2.4G 10/100M RJ45 Connectivity Bluetooth USB Host Play USB Music Micro USB Connect to PC Frequency Response 20Hz to 20KHz Power Input 24V/4.16A Audio Input USB 2.0, Analog RCA, Digital SPDIF Optical Audio Output Speaker out 24V 4ohm 50W *2 Speaker Power... -
Page 7: Interface
5.Interface A50+ 1. LED: To show device status. 2. IR Receiver: For remote controller. 3. Bluetooth Antenna: Used to pair with mobile devices. 4. Micro USB: For connection to PC to work as USB DAC. 5. Mode button: Short press once: Switch input mode; Long press: Switch on/off;... -
Page 8: Remote Controller
6. Remote controller... -
Page 9: Connection Diagram
7. Connection diagram Analog device RCA Output Active Subwoofer RCA Smart Phone Smart Tablet Smart Phone Smart Tablet Digital device audio Optical Output Left Right Windows PC iMac Windows PC iMac BT Connnect Passive Speaker Wi-Fi Connnect DC input Connect to USB Ethernet RJ 45 iMac / Windows PC connect to network... -
Page 10: Connection
8.2 Connection 8.2.1 First time usage & BLE WiFi Setup 1) Hold the MODE button then plug in the power cable. 2) The LED light will start flashing, release the button and wait till the LED flash slowly. 3) Make sure your mobile has connected to your home network using 2.4G and your GPS and Bluetooth is on. 4) Open 4Stream APP, for Android device, the system will ask for permission to use GPS data &... -
Page 11: Connection Via Lan
*Attention for Android users Different brand mobile phones may ask you to allow to use SoundSystem WiFi network, please choose yes, if not, you may not able to set up successfully. It may also ask you to authorize other things, please choose yes or it may affect your use. 8.2.2 Connection via LAN Plug in the wired cable to the RJ45 Ethernet, the device will show on the app in about 10 seconds. -
Page 12: App Features
8.3 App features 8.3.1 Device setting Rename: To customize the device name. Speaker info: You will check the device information like Mac ID, device IP, SSID, etc. Preset content: You can access your 10 preset contents here. Sleep timer: Countdown timer to turn the device to sleep mode. -
Page 13: To Play Music From Nas
8.3.3 To play music from NAS Please note that our system only support NAS with DLNA feature. 8.3.4 To play line in mode - Connect the Aux 3.5mm cables to the TV or other audio sources - Choose line in mode on the application or remote control 8.3.5 To play Bluetooth mode - C h o o s e t h e B l u e t o o t h m o d e o n t h e... -
Page 14: To Play Music From Usb Disk Drive
8.3.6 To play music from USB disk drive - Plugin USB disk drive with mp3 files - Goto My Music and select USB Disk 8.4 Streaming services To use the online streaming services, iHeartRadio, Spotify, Tidal, Qobuz and Deezer may need to register account at the service provider platform. -
Page 15: Airplay
8.4.2 AirPlay The device supports AirPlay1, you can choose the AirPlay and play music 8.4.3 Qplay Our devices support QQ music using the Qplay protocol, you have to turn on the Qplay in the QQ music player setting and then find the device in the Qplay list. -
Page 16: Multiroom And Multizone
8.5 Multiroom and Multizone Users can group multiroom and multizone on the Application, for example you can group device 1,2,3 and 4 together and play same music in sync, or group device 1 and 2 as zone A and device 3 and 4 as zone B, and play different music in zone A and zone B. -
Page 17: Left And Right Channel
8.6 Left and right channel Users can choose the right channel or left channel or stereo mode on the application, or choose left channel on device A and choose right channel on device B, and group them together and play in sync to make stereo. -
Page 18: Restore Factory Setting
8.9 Restore factory setting Two methods to restore device to factory setting Method 1 – Quickly press the mode button 3 times on the device. Method 2 – Go for "App setting-speaker info-restore factory setting". 8.10 Firmware update The application will notify you in app when there is a new fireware version available.It's recommended to update fireware whenever available as this might not only correct bugs or improve security,but also can add new features or services. -
Page 19: To Play Music From Windows Pc Via Foobar2000
9.2 To play music from Windows PC via Foobar2000 Our devices support UPnP protocol, with the popular foobar2000, you can play music from Windows PC to our devices. Please follow the steps below: 1. Download the foobar2000 and install it. 2. -
Page 21: Usb Audio
Music Noise Suppressor, Virtual Bass, Stereo Widener, Exciter, 10 bands EQ, Configure output channel and PIN configs. After editing the audio effects, you can save the changes to the device so the tuned effects will remain. You can get more. information from our website www.arylic.com or from the Up2 Stream DSP Tool manual. -
Page 22: Faq
Q: Do your devices support airplay and third-party DLNA apps? A: Yes. They support airplay and third-party apps like BubbleUPNP... Q: How many zones can you group in one system? A: 12 rooms is the maximum, while 8 zones are recommended. Q: What distance can your wireless audio system cover? A: Once the system is connected to your WiFi router, you can stream your music anywhere there is a WiFi signal. - Page 23 Scan the QR codes below for more www.arylic.com 4STREAM App Facebook: arylicme YouTube:Arylic Support and After Service : info@arylic.com...
- Page 24 The information contained in this guide is believed to be accurate and reliable. Arylic assumes no responsibility for any errors contained in this guide. Arylic reserves the rights to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this guide may also not fully represent the product that you are using and they are for illustration purposed.
