- Page 1 User's Manual B50 Bluetooth Stereo Amplifier with Audio Transmitter. aptX HD 50W x2 HDMI ARC Audio TX...
-
Page 3: Table Of Contents
Table of contents 1. Introduction ............................1 2. What's in the box ...........................1 3. Interface ...............................2 4. Remote Controller ..........................3 5. Installation .............................4 6. Connection ............................5 6.1 Passive Speakers ..........................5 6.2 Phono in ............................6 6.3 Line in .............................7 6.4 Optical in ............................7 6.5 HDMI ARC ............................8 6.6 USB Disk Drive ..........................8 6.7 Connect to PC ..........................9... -
Page 4: Introduction

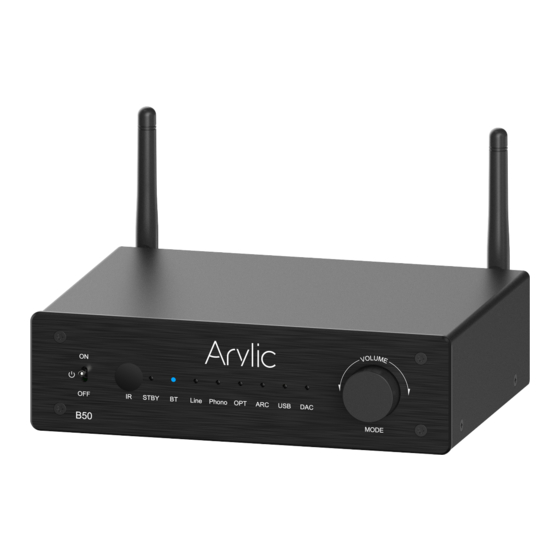

Arylic B50 is a BT wireless stereo amplifier with the ability to transmit your music wirelessly to BT speakers. B50 not only can receive music from your mobile, but also has analog and digital inputs, it comes with phono input for use with turntable which needs higher amplification, TV ARC input for use with TV. If you have many music files stored in USB disk drive, you can also play them with resume playback function. -
Page 5: Interface
3. Interface 11 12 13 16 17... - Page 6 3. Interface Power switch: To turn on/off device. IR sensor: For IR remote controller to control the device. Status LEDs: LEDs indicate current status/input source. When BT LED is flashing, it indicates the device is in BT receiver (RX) mode and is waiting for connection.
-
Page 7: Remote Controller
4. Remote Controller... -
Page 8: Installation
5. Installation Install both antennas to the device and plug in the power adaptor. 6. Connection 6.1 Passive Speakers Use speaker cable to connect the device to your passive speakers. -
Page 9: Phono In
6.2 Phono in Connect the turntable Audio out to the Phono in RCA connectors. If your turntable has GND socket, you can connect it to the GND socket on the device. This is optional, if your turntable doesn’t have GND socket, you can ignore it. *Do not connect other device Line out to Phono in, it will create very loud voice and might damage the device and connected speakers. -
Page 10: Line In
6.3 Line in Connect any playback device with Audio out/Line out/AUX out to Line in using an RCA cable. 6.4 Optical in Connect any playback device with Optical out to Optical in using an optical cable. -
Page 11: Hdmi Arc
6.5 HDMI ARC If you TV has HDMI ARC port, you can use a HDMI cable to connect it to the ARC port on the device. 9.6 USB Disk Drive Plug in USB disk drive to the USB Host to play music. -
Page 12: Connect To Pc
When in Bluetooth receiver mode, the BT LED will be flashing which indicates it is waiting for connection. In your BT transmitter device (mobile phone, pad, TV) you can search for a Bluetooth device name “B50 XXXX” (XXXX is the serial number) and connect to it. -
Page 13: Bluetooth Transmitter Mode
You can connect up to 2 devices at the same time, once the first device has been connected, press the Reset button on the back of the device or press the BT button on the remote controller to enter pairing mode for the second device. -
Page 14: Line In Mode
7.3 Line in Mode You can connect any analog device with line out to play music from B50. You will need to switch to Link in mode with the Mode button on the device, use the remote controller or in the Go Connect APP. The Line LED will turn on when you in Line in mode. -
Page 15: Phono In Mode
7.4 Phono in Mode B50 is also a turntable amplifier, you can connect your turntable to the Phono in connectors and the GND connector to play music. Press the Mode button on the device, use the remote controller or in the Go Connect APP to switch to Phono in mode. -
Page 16: Hdmi Arc Mode
If you have many music files and you want to play them, you can store them in a USB disk drive and playback from B50. Just plug in the USB disk drive with music files and B50 will auto switch to USB Mode and playback the music. -
Page 17: Usb Dac Mode
You will need to select B50 as the sound output device in your PC for it work. Look for the device name call “Up2Stream USB Audio” and connect to it. Same as other input modes, you can stream your PC audio to other connected Bluetooth device. -
Page 18: Acpwrokbench (Sell Separately)
9. ACPWrokBench (Sell Separately) ACPWorkbench is a windows application that allows you to tune B50 audio effects conveniently, including Music Noise Suppressor, Virtual Bass, Stereo Widener, Exciter, 10 bands EQ and many more. When tuning, it will have real-time feedback and you can save and export the changes you made for use in another B50 device. -
Page 19: Specification
10. Specification Bluetooth Bluetooth Standard Transmit 2x Bluetooth TX, able to connect up to 2 Bluetooth speaker or earbuds Receive 2x Bluetooth RX, able to connect up to 2 Bluetooth transmitter device Codec APTX HD, APTX, AAC, SBC Amplifier 24V 4ohm 50W *2 Amplifier Power 24V 8ohm 30W *2 Speaker Impedance... - Page 22 ©Copyright 2023 by Arylic. All Rights Reserved. The information contained in this guide is believed to be accurate and reliable. Arylic assumes no responsibility for any errors contained in this guide. Arylic reserves the rights to make changes in the specifications and/or design of the above mentioned product without prior notice.
