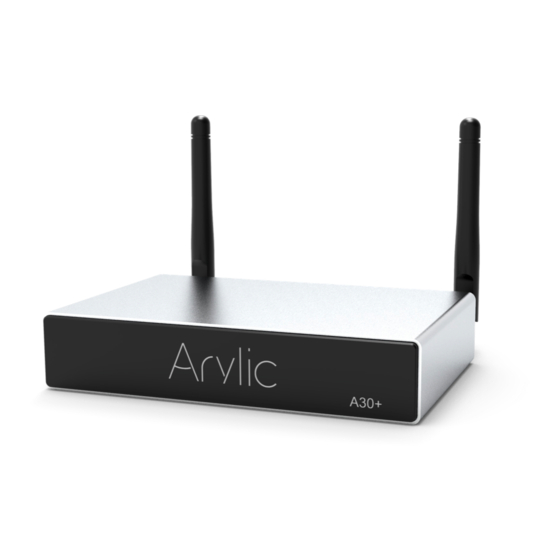

Arylic A30+ User Manual

Arylic A30+ User Manual

Wireless streaming amplifier
Hide thumbs Also See for A30+:

Advertisement

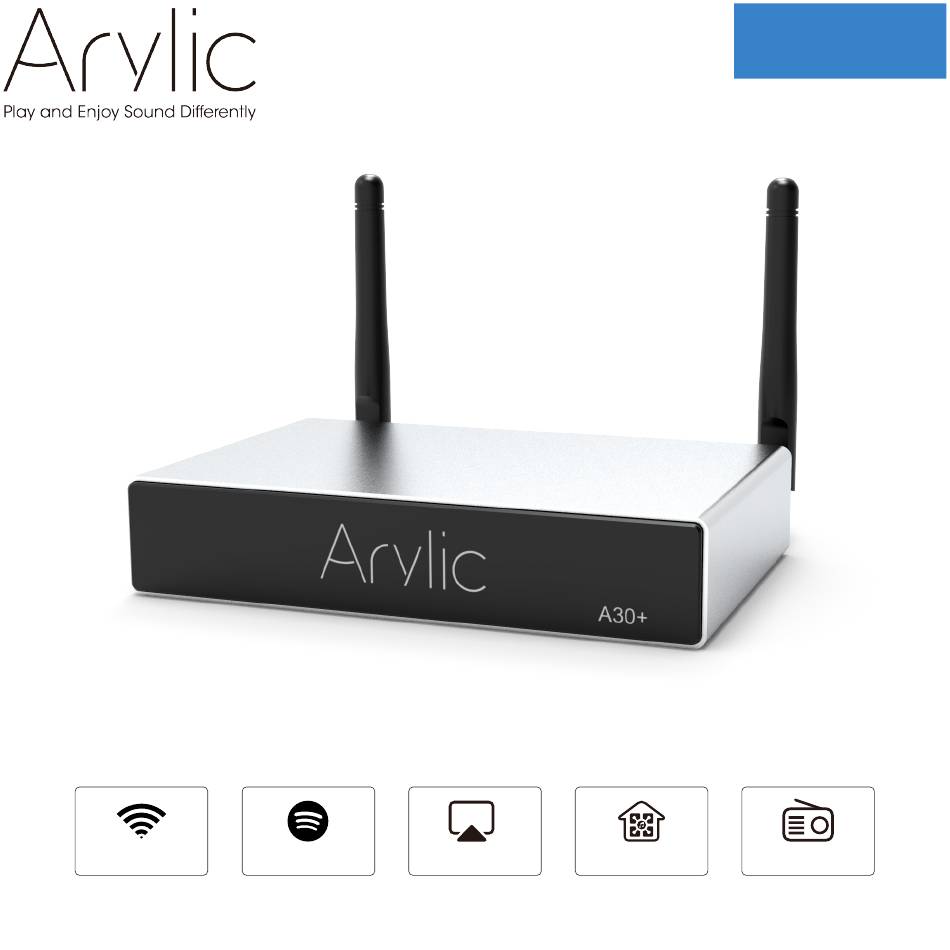

A30+
User's Manual
Wireless Streaming Amplifier
Wireless
Spotify
AirPlay
Multi-Room
Internet Radio
www.arylic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A30+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Arylic A30+

  • Page 1 A30+ User's Manual Wireless Streaming Amplifier Wireless Spotify AirPlay Multi-Room Internet Radio www.arylic.com...
  • Page 3: Table Of Contents

    Table of Contents 1. Introduction ..................................1 2. What's in the Box ................................1 3. Main Features .................................2 4. Specification ..................................3 5. Interface...................................4 6. Remote controller ................................5 7. Connection diagram ................................6 8. How to Use ..................................6 8.1 App Download ................................6 8.2 Connection ................................7 8.2.1 Option 1 - Connection via App .........................7 8.2.2 Option 2 - Connection via LAN ........................8 8.2.3 Option 3 - Bluetooth pair ..........................8...
  • Page 4: Introduction

    1. Introduction A30+ is a WiFi and Bluetooth 5.0 stereo amplifier. By adding A30+ to your current stereo system will enable you to stream music from your smart device, USB, NAS or online streaming services such as Spotify, Tidal, Qobuz and many more using our free to download 4Stream APP, Airplay or DLNA apps.
  • Page 5: Main Features

    3. Main Features Streaming music via network without distance limitation or Bluetooth5.0 up to 15 meters. Bluetooth for true high resolution music. Spotify connect, Airplay, Qplay, DLNA, UPnP streaming protocols supported. Support streaming source from online services, smart device memory, USB pen drive, NAS, Bluetooth and line in. Multiroom and multizone streaming enabled by mutiple units connected in same network.
  • Page 6: Specification

    4. Specification Wireless network IEEE802.11 b/g/n 2.4G Ethernet Single 10/100M RJ45 Connectivity USB Host Play USB music Micro USB Connect PC as external DAC Power Input 18V/4A Audio Input 3.5mm Line in Frequency response 20Hz to 20kHz Speaker Power 2x35W@4Ω load at 18V, 2x18W@8Ω load at 18V THD+N 0.03% @1kHz Speaker Impedance...
  • Page 7: Interface

    5. Interface LED: To show the device status. IR Receiver: For remote control. WiFi Antenna connector: To connect antenna for WiFi. RESET: Short press once: Switch input mode; Long Press: Switch on/off; Short Press twice: Re-pair Wifi or Bluetooth in Wifi or Bluetooth mode; Short Press three times: Restore to factory settings.
  • Page 8: Remote Controller

    6. Remote controller...
  • Page 9: Connection Diagram

    7. Connection diagram Analog device Smart Phone Smart Tablet Audio input 3.5mm AUX Smart Phone Smart Tablet Connect to USB pen drive Windows PC iMAC Windows PC iMAC BT Connnect Wi-Fi Connnect DC input Ethernet RJ 45 Windows PC Wi-Fi Connect to network Left Right...
  • Page 10: Connection

    8.2 Connection There is another way to setup Wifi if the above 8.2.1 First time usage & BLE WiFi Setup method has failed: 1) Hold the POWER button then plug in the power cable. 1. Hold the POWER button then plug in the power cable. 2) The LED light will start flashing, release the button and 2.
  • Page 11: Option 2 - Connection Via Lan

    8.2.2 Connection via LAN Plug in the wired cable to the RJ45 Ethernet, the device will show on the app in about 10 seconds. (Note: The mobile phone and the device must be in the same network) 8.2.3 Bluethooth To use Bluetooth, please swtich to bluetooth via app or by remote controller, then find bluetooth device SoundSystem_ XXXX from your phone bluetooth setting and pair it .
  • Page 12: App Features

    8.3 App Features 8.3.1 Device setting Rename: Change the device name. Speaker info: Display device information like IP address, Mac address, SSID, firmware version, factory reset, etc. Alarm Clock: Setup up to 4 different alarm clocks with music of your choice. Preset Content: 10 Preset content buttons.
  • Page 13: To Play Music From Nas

    8.3.3 To Play Music From NAS Please note that our system only support NAS with DLNA feature. 8.3.4 To Play Line in Mode Connect the AUX cables to the TV or other audio sources. Choose line in mode on the application or remote control. 8.3.5 To Play Bluetooth Mode Choose the Bluetooth mode on the application or remote control, the LED will change to blue.
  • Page 14: Streaming Services

    8.4 Streaming Services To use the online streaming services, iHeartRadio, Spotify, Tidal, Qobuz and Deezer may need to register account at the service provider platform. 8.4.1 Spotify To use Spotify, you have to own spotify premium account. You will find the device in the device list on the Spotify application and choose the device you want to play. NOTE: one Spotify account can only streaming to one device at a time.
  • Page 15: Airplay

    8.4.2 AirPlay The Device Supports AirPlay1, You can Choose the AirPlay and Play Music.
  • Page 16: Qplay

    8.4.3 Qplay Our Devices Support QQ Music using the Qplay protocol, you have to turn on the Qplay in the QQ Music player setting and then find the device in the Qplay list. 8.5 Multiroom and Multizone Users can group multiple rooms and zones on the application. For example, you can group devices 1, 2 and 3 to play the same music in sync, or group devices 1 and 2 as zone A and devices 3 and 4 as zone B, and play different music in zones A and B.
  • Page 17: Add / Remove Device To Multiroom

    8.5.1 Add / Remove Device to Multiroom In order to add device to multiroom function, click on the “+” mark of the device you want to be the master device. A list of available devices will pop out and you can select the device you want to add as slave device. Click the Done button when finished.
  • Page 18: Left And Right Channel

    8.6 Left and Right Channel Users can choose the right channel or left channel or stereo mode on the application, or choose left channel on device A and choose right channel on device B, and group them together and play in sync to make stereo. 8.7 Preset There are 6 buttons on the remote control, users can preset play lists (Only the lists with speaker icon can preset) on...
  • Page 19: Restore Factory Setting

    8.9 Restore Factory Setting Two methods to restore device to factory setting Method 1: Quickly press the reset button 3 times to restore factory settings. Method 2: Go for "App setting - speaker info - restore factory setting" 8.10 Firmware Update The application will notify you in app when there is a new fireware version available.
  • Page 20: Play On Pc

    9. Play on PC There are Several Tools to Play Music from the PC 9.1 To Play Music From iTunes on Mac and Windows PC Our devices can stream audio sources from local storage, media library in Mac and Windows PC and online services from iTunes.
  • Page 22: Usb Audio

    9.3 USB Audio Connect the device to your PC with USB cable (make sure it’s a data cable including the signal wires). The PC will automatically discover a USB sound card, and when you select it as the system main output, the PC will send the audio output to the device in digital (44.1KHz/16bits).
  • Page 23: Faq

    Q: Do your devices support airplay and third-party DLNA apps? A: Yes. They support airplay and third - party apps like Bubble UPNP... Q: How many zones can you group in one system? A: 12 rooms is the maximum, while 8 zones are recommended. Q: What distance can your wireless audio system cover? A: Once the system is connected to your WiFi router, you can stream your music anywhere there is a WiFi signal.
  • Page 24 The information contained in this guide is believed to be accurate and reliable. Arylic assumes no responsibility for any errors contained in this guide. Arylic reserves the rights to make changes in the specifications and/or design of the above mentioned product without prior notice. The diagrams contained in this guide may also not fully represent the product that you are using and they are for illustration purposed.
