CyberPower PS900AVRLCD User Manual

YOUR ULTIMATE ALLY IN POWER
USER MANUAL
8
6
5
1
3
2
4
8

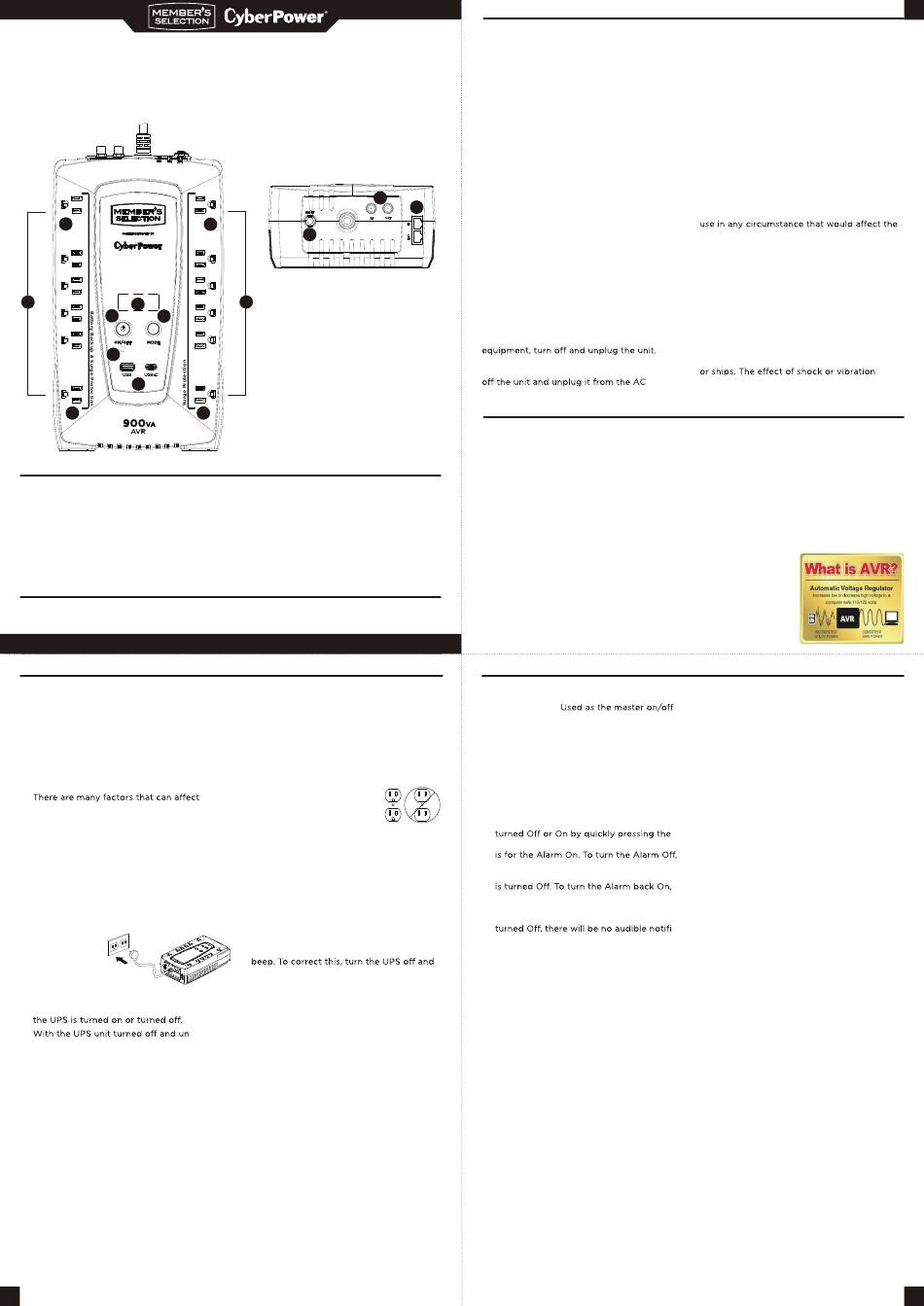

FEATURES
1. Power Switch
2. Power On Indicator
3. Mode Switch
4. USB Charging Ports
5. LCD Module Display
6. Battery and Surge Protected Outlets
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
INSTALLING YOUR UPS SYSTEM
DETERMINE THE POWER
REQUIREMENTS OF YOUR EQUIPMENT
1. Ensure that the equipment plugged into the
UPS does not exceed the UPS unit's rated
capacity. If the rated capacities of the unit
are exceeded, an overload condition may
occur and cause the UPS unit to shut down
or the circuit breaker to trip.
2.
the amount of power that your electronic
equipment will require. For optimal system
performance keep the load below 80% of
the unit's rated capacity.
HARDWARE INSTALLATION GUIDE
1. Your new UPS may be used immediately
upon receipt. However, after receiving a
new UPS, to ensure the battery's maximum
charge capacity, it is recommended that
you charge the
battery for at
least 8 hours.
Your UPS is
equipped with
PLUG IN
an auto-charge
feature. When
the UPS is plugged into an AC outlet, the
battery will automatically charge whether
2.
plugged, connect your computer, monitor,
and any other peripherals requiring battery
backup into the battery power supplied
outlets. Plug the other peripheral equip-
ment (e.g., printer, scanner, speakers, etc.)
into the full-time surge protection outlets.
DO NOT plug a laser printer, paper shred-
der, copier, space heater, vacuum cleaner,
sump pump, or other large electrical
device into the "Battery and Surge Pro-
tected Outlets." The power demands of
these devices will overload and possibly
damage the unit.
3
PS900AVRLCD
8
9
7
8
7. Full-Time Surge Protected Outlets
8. Widely Spaced Outlets
9. Circuit Breaker
10. Coax Protection
11. Communication Protection Ports
- continued
3. To protect the network, connect a network
cable from the wall jack outlet to the IN
jack of the UPS. Then connect network
cable from the OUT jack on the UPS to the
computer or network device.
4. Plug the UPS into a 2 pole,
3 wire grounded receptacle
(wall outlet). Make sure the
wall branch outlet is pro-
tected by a fuse or circuit
breaker and does not service equipment
with large electrical demands (e.g., air con-
ditioner, refrigerator, copier, etc.). The war-
ranty prohibits the use of extension cords,
outlet strips, and surge strips in conjunction
with the UPS unit.
5. Press the power switch to turn the unit on.
The Power On indicator light will illuminate
green and the unit will "beep" once.
6. If an overload is detected, an audible alarm
will sound and the unit will emit one long
unplug at least one piece of equipment
from the battery power supplied outlets.
Make sure the circuit breaker is depressed
and then turn the UPS on.
7. To maintain optimal battery charge, leave
the UPS plugged into an AC outlet at all
-
times.
8. To store the UPS for an extended period
of time, cover it and store with the battery
fully charged. While in storage, recharge
the battery every three months to ensure
optimal battery life.
9. Ensure the wall outlet and UPS are locat-
ed near the equipment being attached for
proper accessibility.
IMPORTANT SAFETY WARNINGS
This manual contains important safety instructions. Please read and follow all instructions carefully
during installation and operation of the unit. Read this manual thoroughly before attempting to
unpack, install, or operate your UPS.
CAUTION! To prevent the risk of fire or
electric shock, install in a temperature and
humidity controlled indoor area free of
conductive contaminants. (Please see
specifications for acceptable temperature
and humidity range).
CAUTION! To reduce the risk of electric
shock, do not remove the cover. There are
no user-serviceable parts inside.
10
CAUTION! Servicing of batteries should
11
be performed or supervised by personnel
knowledgeable of batteries and the required
precautions. Keep unauthorized personnel
away from batteries.
CAUTION! Hazardous live parts inside can be
energized by the battery even when the AC
input power is disconnected.
CAUTION! The UPS must be connected to an
AC power outlet with fuse or circuit breaker
protection. Do not plug into an outlet that is
not grounded. If you need to de-energize this
CAUTION! To avoid electric shock, turn
power source before installing a computer
component.
INSTALLING YOUR UPS SYSTEM
UNPACKING
Inspect the UPS upon receipt. The box should
contain the following:
(a) UPS unit
(b) User's manual
BASIC OPERATION
1. Power Switch:
switch for equipment connected to the
battery power supplied outlets. To turn
the UPS ON, press the power button for
approximately 2 seconds - you will hear a
constant tone (1 second) - and release after
a short beep.
To turn the UPS OFF, press the power
button for approximately 2 seconds - you
will hear a constant tone (1 second) - and
release after two short beeps.
Alarm setting: The audible alarm can be
POWER button twice. The default setting
quickly press the power button twice. You
will hear two short beeps when the Alarm
quickly press the power button twice. You
will hear a single short beep when the
Alarm is turned On. *When the Alarm is
cation when the UPS reaches a low battery
state.
2. Power On Indicator: This LED is illuminated
when the utility power is normal and the
UPS outlets are providing power, free of
surges and spikes.
3. Mode Switch: Press the Mode Switch for
approximately 3 seconds to enter setup
mode to select three functions: Utility High
Voltage Range, Utility Low Voltage Range,
and LCD sleep ON/OFF. When a function is
selected, press Mode Switch for 3 seconds
to view options. When an option is select-
ed, wait for 8 seconds for the setting to
be confirmed. After the setting has been
confirmed, the LCD screen will leave setup
mode and go back to status display. If there
is no action for 8 seconds during setup,
the LCD will also leave setup mode and go
back to the status display.
a. Utility High Voltage Range: Adjust the
value of high voltage range.
b. Utility Low Voltage Range: Adjust the
value of low voltage range.
c. LCD: L1/L0 (ON/OFF):
* When LCD is set to L1, LCD will be
always ON. When LCD is set to L0, LCD
will dim if untouched for 1 minute.
* In battery mode, LCD is always on
regardless if the setting is L1 or L0.
(SAVE THESE INSTRUCTIONS)
CAUTION! Not for use in a computer
room as defined in the Standard for the
Protection of Electronic Computer/Data
Processing Equipment, ANSI/NFPA 75.
CAUTION! To reduce the risk of fire,
connect only to a circuit provided with
20 amperes maximum branch circuit over
current protection in accordance with the
National Electric Code, ANSI/NFPA 70.
CAUTION! DO NOT USE FOR MEDICAL
OR LIFE SUPPORT EQUIPMENT! DO NOT
operation and safety of life support equip-
ment, medical applications, or patient care.
CAUTION! DO NOT USE WITH OR NEAR
AQUARIUMS! To reduce the risk of fire
or electric shock, do not use with or near
an aquarium. Condensation from the
aquarium can cause the unit to short out.
CAUTION! DO NOT USE THE UPS ON ANY
TRANSPORTATION! To reduce the risk of
fire or electric shock, do not use the unit
on any transportation such as airplanes
caused during transit and the damp
environment can cause the unit to short out.
AUTOMATIC VOLTAGE REGULATOR
The PS900AVRLCD stabilizes inconsistent utility
power to nominal levels that are safe for equip-
ment. Unstable utility power can be damaging to
important data and hardware. With Automatic
Voltage Regulation (AVR), damaging voltage
levels are corrected to safe levels. AVR auto-
matically increases low or decreases high utility
power to a consistent and safe 110/120 volts.
4. USB Charging Ports: The USB Power ports
(Type A and Type C) provide DC 5V 2.1A
power output.
5. LCD Module Display: LCD display shows
all the UPS information using icons and
messages. For more information, please
review the "Definitions for Illuminated LCD
Indicators" section.
6. Battery and Surge Protected Outlets: The
unit has six battery powered and surge
protected outlets to ensure temporary
uninterrupted operation of your equip-
ment during a power failure. (DO NOT plug
a laser printer, paper shredder, copier,
space heater, vacuum cleaner, sump pump,
or other large electrical device into the
"Battery and Surge Protected Outlets."
The power demands of these devices will
overload and possibly damage the unit.)
7. Full-Time Surge Protected Outlets: The
unit has six surge suppression outlets.
-
8. Widely-Spaced Outlets: The UPS unit
has four widely-spaced outlets. AC pow-
er adapters can be plugged into the UPS
without overlapping or blocking adjacent
outlets.
9. Circuit Breaker: Located on the side of the
UPS, the circuit breaker provides overload
and fault protection.
10. Coax Protection: The Coax/Cable/DSS
(RG6) protection ports will protect any
cable modem, CATV converter, or DSS
receiver.
11. Communication Protection Ports: Com-
munication protection ports (RJ11/RJ45)
will protect any standard modem, fax, or
telephone line.
