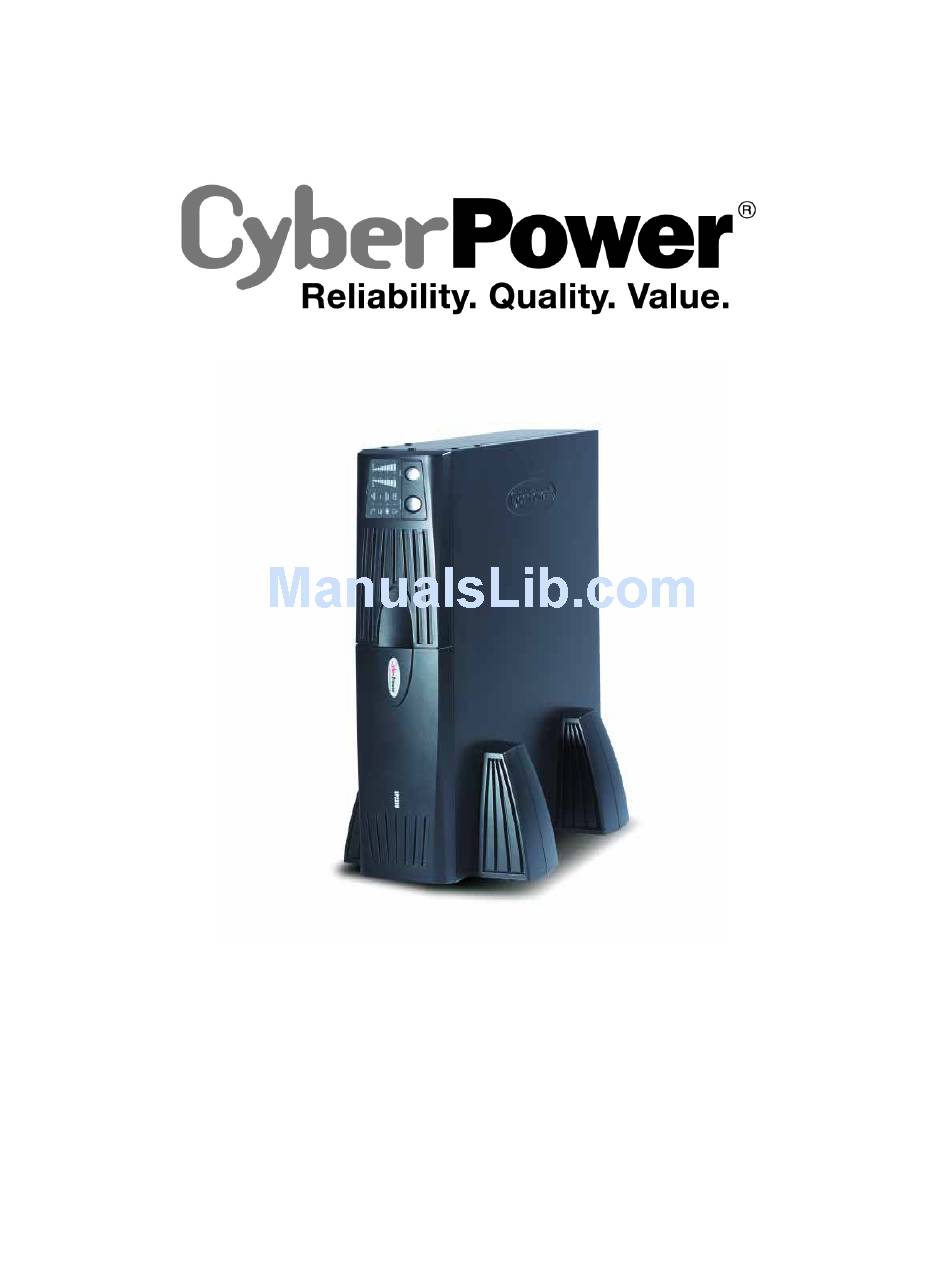

- Page 1 User’s Manual Professional Rack Mount UPS PR1500 / PR2200 K01-1500S0A-04...
-
Page 2: Table Of Contents
PRODUCT REGISTRATION ........................12 1 YEAR LIMITED WARRANTY ......................12 CONFORMANCE APPROVALS ......................15 Thank you for purchasing a CyberPower Systems Product. To enjoy all the features and benefits of this Uninterruptible Power System (UPS), please read and follow all installation and operation instructions completely. This UPS is designed to provide guaranteed power protection for connected electronic equipment. -
Page 3: Important Safety Warnings
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems does not sell products for life support or medical applications. DO NOT use in any circumstance that would affect operation or safety of any life support equipment, with any medical applications, or patient care. -
Page 4: Basic Operation
Serial Cable then connect the USB to your computer. 3. With the UPS unit off and unplugged, connect your computer, monitor, and any externally powered data storage device (Zip drive, Jazz drive, Tape drive, etc…) into the battery power supplied outlets. DO NOT plug a laser printer, copier, space heater, vacuum, paper shredder or other large electrical device into the UPS. - Page 5 Test Switch Professional Rack Mount UPS performs a self-test automatically. When powered on. When the UPS passes the test, it returns to on-line operation. If the UPS fails the self-test, please recharge the battery for hours and perform another self-test. If it fails after recharging the battery, please replace the battery.
-
Page 6: Rear Panel Description
REAR PANEL DESCRIPTION USB Port Through USB communication port to manage software Circuit Breaker Reset for Overload Protection Resettable circuit breakers provide optimal overload protection. Battery Backup and surge Protection Outlets The UPS provides four battery powered, surge protected outlets connected equipment and insures temporary uninterrupted operation... - Page 7 Dual Serial Ports Professional Rack Mount UPS provides two serial ports to allow connection and communication between the UPS and two computers. This allows the simultaneous shutdown of two computer systems. The Primary computer (with PowerPanel Business Edition installed) is the computer that you will use to control the UPS and make any changes to the operation of the UPS.
-
Page 8: Battery Replacement
Battery replacement Contact your dealer or call the number in this manual for information on battery replacement. The order numbers for the battery are BA-PR1500 for PR1500; BA-PR2200 for PR2200 Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. Service the battery under the supervision of personnel knowledgeable of batteries and their precautions. -
Page 9: Battery Replacement Procedure
BATTERY REPLACEMENT PROCEDURE: Remove the two retaining screws of Remove the right side the cable protection cover then front panel. remove the cover. Disconnect the black and Remove the four retaining screws. red cable. Pull the battery pack out from the unit. Slide a new battery pack into the unit. -
Page 10: Definitions For Led Indicators
On/Off Check Battery is illuminated, Flash contact CyberPower Systems for battery replacement information. Weak Battery- Recharge the battery for at least 8 hours. If On/Of On/Off Check Battery is illuminated, Flash contact CyberPower Systems for battery replacement information. 9 ... -
Page 11: Troubleshooting
Recharge the battery by leaving the UPS plugged in perform expected at least 4 hours. runtime. Battery is slightly worn out. Contact CyberPower about replacement batteries at tech@cyberpowersystems.com The UPS will not The on/off switch is designed Turn the UPS off. Wait 10 seconds and then turn the turn on. -
Page 12: Technical Specifications
Technical specifications Model PR1500 PR2200 Capacity(VA)/(Watt) 1500VA/1000W 2200VA/1500W Input Voltage Range 85-150Vac Frequency Range 47-63Hz Output On battery Output Voltage Pure sine wave at 120Vac+/-7% Transfer time(Typical) 60Hz Overload protection Internet Ready On Utility: Circuit Breaker; On Battery: Internal Current Limiting... -
Page 13: Product Registration
1 YEAR LIMITED WARRANTY Read the following terms and conditions carefully before using the CyberPower PR1500/PR2200 (the "Product"). By using the Product you consent to be bound by and become a party to the terms and conditions of this Limited Warranty and Connected Equipment Guarantee (together referred to as this "Warranty"). - Page 14 CyberPower will inspect and examine the Product. If the Product is defective in material or workmanship, CyberPower will repair or replace it at CyberPower's expense, or, if CyberPower is unable to or decides not to repair or replace the Product (if defective) within a reasonable time, CyberPower will refund to you the full purchase price you paid for the Product (purchase receipt showing price paid is required).
- Page 15 High Risk Activities or with aquariums. CyberPower does not authorize use of any Product in any High Risk Activities or with Aquariums. ANY SUCH USE IS IMPROPER AND IS A MISUSE OF THE PRODUCT.
-
Page 16: Conformance Approvals
CONORMANCE APPROVALS Conformance Approvals FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. - Page 17 16 ...
- Page 18 CyberPower Systems B.V. Flight Forum 3545,5657DW Eindhoven,The Netherlands Tel: +31 (0)40 2348170 Fax: +31 (0)40 2340314 Website: http://eu.cyberpowersystems.com/ E-mail: sales@cyberpower-eu.com Entire contents copyright © 2009 CyberPower Systems, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited. 17 ...
