Summary of Contents for CyberPower PR1500

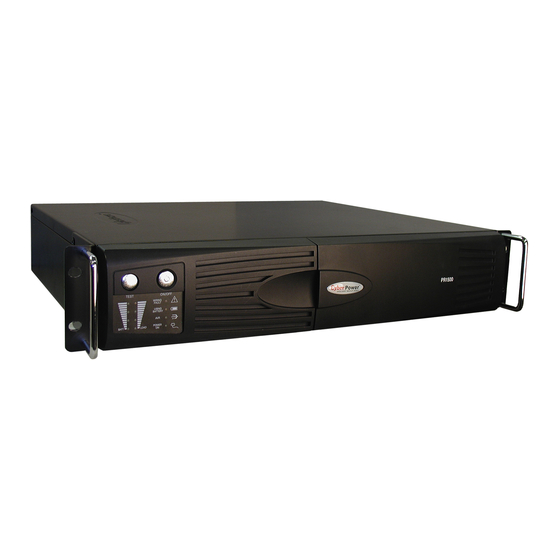

- Page 1 User’s Manual Professional Rack Mount UPS PR1500 / PR2200 ADDITIONAL INSTALLATION TIPS CAN BE FOUND AT: www.cyberpowersystems.com/support.htm...
-
Page 2: Table Of Contents
TECHNICAL SPECIFICATIONS………………………………………………….………..…..10 LIMITED WARRANTY AND POWER CONTROL GUARANTEE……………………...11 Thank you for purchasing a CyberPower Systems Product. To enjoy all the features and benefits of this Uninterruptible Power System (UPS), please read and follow all installation and operation instructions completely. This UPS is designed to provide... -
Page 3: Important Safety Warnings
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! CyberPower Systems does not sell products for life support or medical applications. DO NOT use in any circumstance that would affect operation or safety of any life support equipment, with any medical applications, or patient care. -
Page 4: Installing Your Ups System
INSTALLING YOUR UPS SYSTEM UNPACKING Inspect the UPS upon receipt. The box should contain the following: (1) UPS Unit; (1) User’s Manual for UPS; (2) Rack mount Brackets; (2) Stands; (1) Telephone Cable (1) PowerPanel Plus Software Disk; (1) User’s Manual for PowerPanel Plus (1) PowerPanel Software Disk;... -
Page 5: Basic Operation
When the led is flashed in rotation, it indicates that the UPS unit boosts input voltage. Power On Indicator This LED is illuminated when the utility condition is normal and the UPS outlets are providing “clean power”, free of surges and spikes. PR1500/ PR2200 Guaranteed Uninterruptible Power System... -
Page 6: Rear Panel Description
NOTE: When the the UPS is overloaded, two circuit breakers will be tripped to interrupt power supply to the four battery outlets and leaves the two outlets for critical loads uninterrupted. - Page 7 The secondary computer will then shutdown. Once the secondary computer has completed its shutdown, the UPS will power off.. Both PowerPanel Plus™ and PowerPanel™ will save and close any open files prior to shutting the system down. PR1500/ PR2200 Guaranteed Uninterruptible Power System...
-
Page 8: Battery Replacement And Storage
BATTERY REPLACEMENT Contact your dealer or call the number in this manual for information on battery replacement. The order numbers for the battery are BA-PR1500 for PR1500; BA-PR2200 for PR2200 Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery. - Page 9 3. Disconnect the black and red cable. 7. Recharge the unit for 4-8 hours to ensure the UPS performs expected runtime PR1500/ PR2200 Guaranteed Uninterruptible Power System 4. Remove the four retaining screws. 5. Pull the battery pack out from the unit.
-
Page 10: Definition For Illuminated Led Indicators
5 seconds, reset the circuit breaker and restart the UPS. Weak Battery- Recharge the battery for at least 8 hours. If Check Battery is illuminated, None contact CyberPower Systems for battery replacement information. Surge Protection Malfunction- Power surge has damaged the unit. Please... -
Page 11: Troubleshooting
The unit must be connected to a 110/120v 60Hz outlet. Contact CyberPower Systems about replacement batteries at tech@cyberpowersystems.com Contact CyberPower Systems at tech@cyberpowersystems.com Connect the serial cable to the UPS unit and an open serial port of your computer. You must use the cable that came with the unit. -
Page 12: Technical Specifications
Operating Temperature Operating Relative Humidity Communication PowerPanel Software Power Panel Plus Software Management Self-Test Auto-Charger Auto-Restart PR1500 PR2200 1500VA 1000W 85 -150Vac 47 - 63Hz Pure Sine Wave at 120Vac +/- 5% 60Hz +/- 1% On Utility: Circuit Breaker, On Battery: Internal Current Limiting RJ11/RJ45(One In/One Out) 2U Rack, 43.3x8.8x38.8... -
Page 13: Limited Warranty And Power Control Guarantee
Guaranteed Uninterruptible Power System LIMITED WARRANTY AND POWER CONTROL GUARANTEE In purchasing a PR1500 / PR2200 in the United States or Canada, the original end user receives a Limited Warranty and CyberPower's Power Control Guarantee from Cyber Power Systems (USA), Inc. (for ease of reading, referred to as "CyberPower"). The Limited Warranty and the Power Control Guarantee are intended to be the original end-user's exclusive rights and remedies. - Page 14 To be covered you must still be the owner of the Product at the time of the failure that results in the claim made under this Limited Warranty. Exclusive Remedies Under Limited Warranty. Your exclusive remedy and CyberPower's' sole obligations are as follows for the Product: If (a) the CyberPower Product you purchased and still own is defective in material or workmanship under this Limited Warranty or any applicable warranty imposed by law, and (b) all Limited Warranty requirements have been met, CyberPower will repair or replace the...
- Page 15 Equipment. The "Agreed Damage Amount" for all items of Initial Customer's Connected Equipment shall be the lesser of the amount determined under Clause (1) or (2) below, reduced by any amounts described in Clause (3) below: PR1500/ PR2200 Guaranteed Uninterruptible Power System...
- Page 16 CyberPower), or (c) the lowest price the same or similar items can be purchased for in the United States. 2. The aggregate ceiling amount for all Connected Equipment: CyberPower PR1500 --$250,000; PR2200--$300,000 3. The amount(s) of all payment you have or are entitled to receive from insurance, other warranties, extended warranties, or from other sources or persons for the Connected Equipment or damage to such equipment so that CyberPower’s maximum liability shall be...
- Page 17 Contact Information: CyberPower's address is 5555 12th Ave East, Suite 110, Shakopee, MN 55379 and its phone number is (952) 403-9500 CyberPower is the warrantor under this Limited Warranty. You may also contact CyberPower on the Internet at www.cyberpowersystems.com. PR1500/ PR2200 Guaranteed Uninterruptible Power System or (877) 297-6937 (toll free).
- Page 18 Entire contents copyright ©2003 CyberPower Systems, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited. PowerPanel™ and PowerPanel Plus™ are trademarks of CyberPower Systems (USA), Inc. FCC Notice Any special accessories needed for compliance must For more information, contact us at: CyberPower Systems (USA), Inc.
