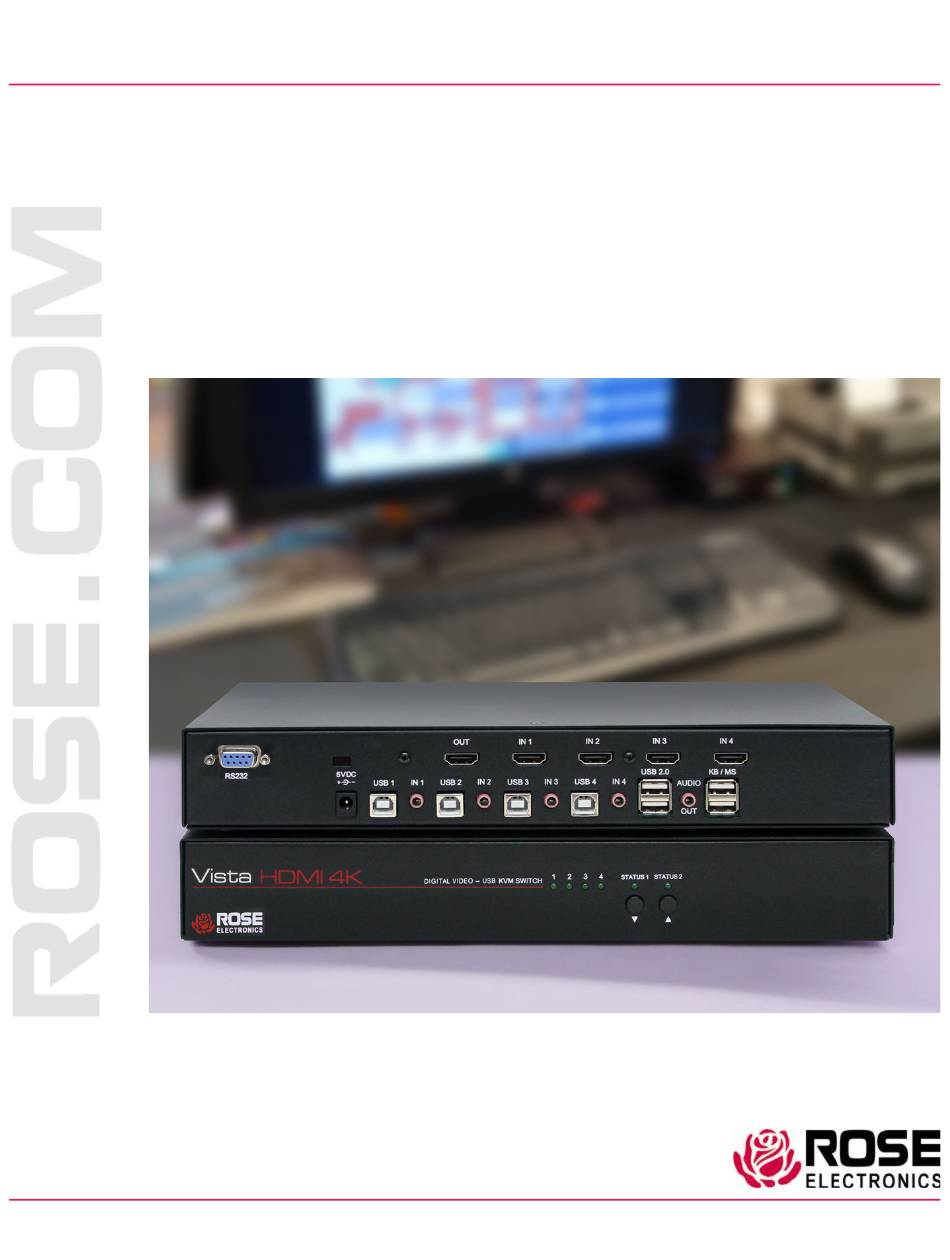

- Page 1 Vista HDMI 4K 4K Ultra HD KVM Switch with USB2.0 and Audio Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 tech-support@rose.com...
-
Page 2: Limited Warranty
Vista HDMI 4K KVM Switch to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. -
Page 3: Declarations Of Conformity
DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU. This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents Additional Items that may be required Installing the Vista HDMI 4K Switch Installing the Vista HDMI 4K Controlling the Vista HDMI 4K Control using the RS-232 port Safety Maintenance and Repair Technical Support Figures Figure 1. -
Page 5: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Rose Electronics Vista HDMI 4K KVM Switch. The Vista HDMI 4K is a 2K/4K, HDMI/USB/Audio Switch with USB2.0 sharing. The switch provides access and control to four 4K Ultra HD computers, using a USB keyboard/mouse and HDMI monitor. -
Page 6: Package Contents
CAB-SPMM010 10ft (3.0 meter) These items may be ordered separately from Rose Electronics All references to HDMI and USB cables in this document refer to the maximum recommended distances for each cable type. Maximum recommended cable distances should not be exceeded. -
Page 7: Installing The Vista Hdmi 4K Switch
INSTALLATION and OPERATION Installing the Vista HDMI 4K Switch Unpack the Vista HDMI 4K switch and check the contents of the package. If the switch is to be rackmounted, then attach a rackmount bracket (not included) to either side of the switch using the provided screw-set. -
Page 8: Installing The Vista Hdmi 4K
INSTALLATION and OPERATION Vista HDMI 4K – back panel layout Figure 2. Vista HDMI 4K back panel layout Installing the Vista HDMI 4K 1. Ensure that power is disconnected from the Vista HDMI 4K. 2. Connect the HDMI cables and USB cables (male-A to male-B) from the computers to the respective ports on the Vista HDMI 4K. -
Page 9: Controlling The Vista Hdmi 4K
Controlling the Vista HDMI 4K Front Panel Control: To switch ports using the front panel, press the UP button to navigate up and DOWN button for down. RS-232 Control: Use a male-to-female serial cable to connect a computer to the RS-232 port of the Vista HDMI 4K. -
Page 10: Control Using The Rs-232 Port
Control using the RS-232 port Controlling the Vista HDMI 4K via RS-232 requires an RS-232 card installed on your computer or a USB to RS-232 adapter. Below are instructions on how to create an RS-232 connection between a PC and the Vista HDMI 4K switch Use a terminal client software to connect the host PC or notebook to the switch. -
Page 11: Safety
Safety The Vista LC DVI KVM Switch, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. ... -
Page 12: Service And Maintenance
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 13: Appendices
APPENDICES Appendix A — Specifications Part Numbers Description KVM-4THD/4K Vista HDMI 4K, 4 Port KVM Switch, HDMI+USB2.0, 2K/4K CAB-HDMIMM006 HDMI M/M 6ft (2.0m) cable CAB-HDMIMM010 HDMI M/M 10ft (3.0m) cable CAB-USBAB006 USB-AB 6ft (2.0m) cable CAB-USBAB010 USB-AB 10ft (3.0m) cable RM-FR19 Rackmount shelf for 19”... - Page 14 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
