3. 3

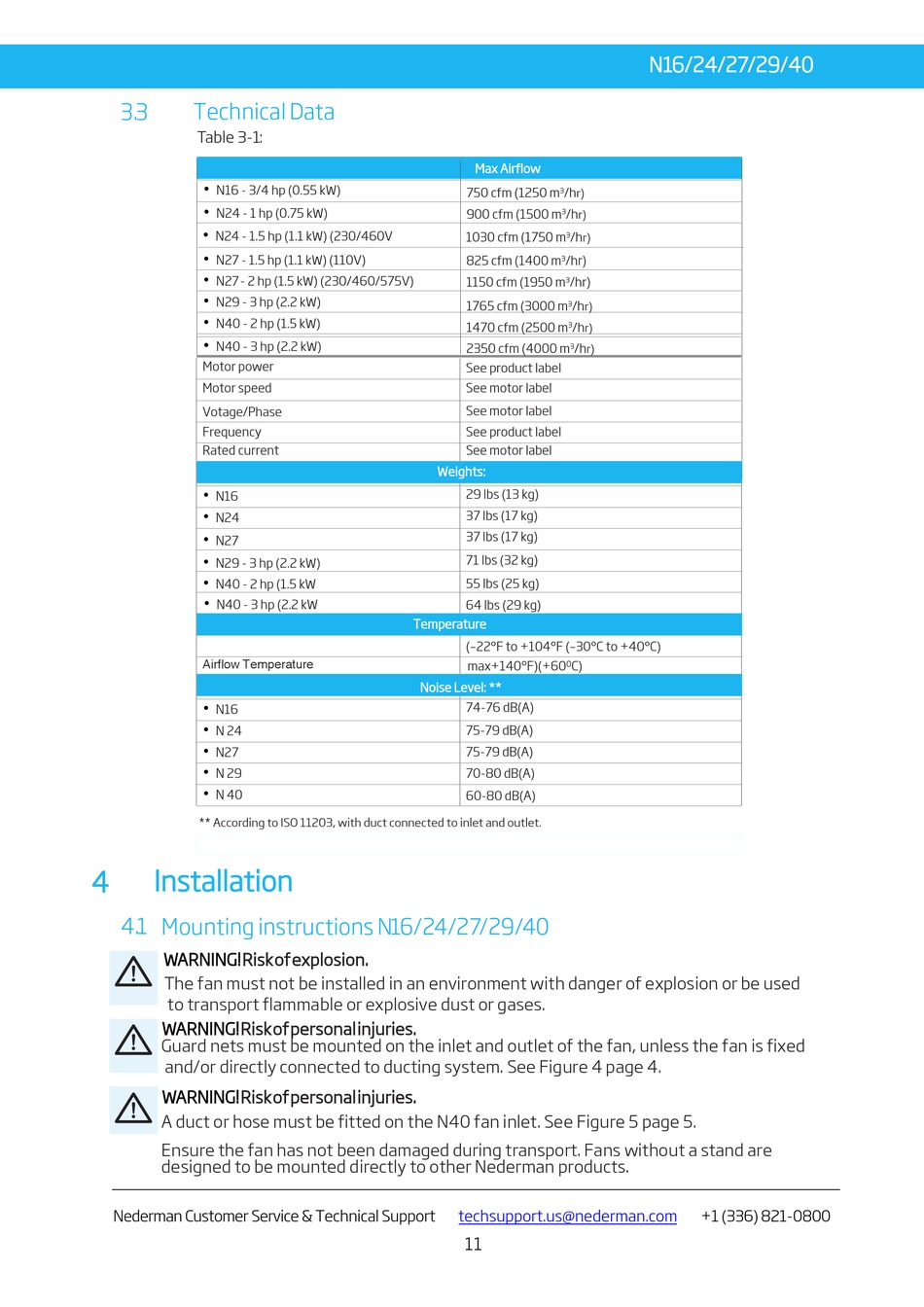

Technical Data

Table 3-1:
N16 - 3/4 hp (0.55 kW)
N24 - 1 hp (0.75 kW)
N24 - 1.5 hp (1.1 kW) (230/460V
N27 - 1.5 hp (1.1 kW) (110V)
N27 - 2 hp (1.5 kW) (230/460/575V)
N29 - 3 hp (2.2 kW)
N40 - 2 hp (1.5 kW)
N40 - 3 hp (2.2 kW)
Motor power
Motor speed
Votage/Phase
Frequency
Rated current
N16
N24
N27
N29 - 3 hp (2.2 kW)
N40 - 2 hp (1.5 kW
N40 - 3 hp (2.2 kW
T
N16
N 24
N27
N 29
N 40
** According to ISO 11203, with duct connected to inlet and outlet.

Installation

4
4. 1
Mounting instructions N16/24/27/29/40
WARNING! Risk of explosion.
The fan must not be installed in an environment with danger of explosion or be used
to transport flammable or explosive dust or gases.
WARNING! Risk of personal injuries.
Guard nets must be mounted on the inlet and outlet of the fan, unless the fan is fixed
and/or directly connected to ducting system. See Figure 4 page 4.
WARNING! Risk of personal injuries.
A duct or hose must be fitted on the N40 fan inlet. See Figure 5 page 5.
Ensure the fan has not been damaged during transport. Fans without a stand are
designed to be mounted directly to other Nederman products.
Nederman Customer Service & Technical Support
Max Airflow
750 cfm (1250 m /h r)
3
900 cfm (1500 m /h r)
3
1030 cfm (1750 m /h r)
3
825 cfm (1400 m /hr)
3
1150 cfm (1950 m /hr)
3
1765 cfm (3000 m /h
3 r)
1470 cfm (2500 m /h
3 r)
2350 cfm (4000 m /h
3 r)
See product label
See motor label
See motor label
See product label
See motor label
Weights:
29 lbs (13 kg)
37 lbs (17 kg)
37 lbs (17 kg)
71 lbs (32 kg)
55 lbs (25 kg)
64 lbs (29 kg)
Temperature
(–22°F to +104°F (–30°C to +40°C)
max+140°F)(+60 C)
0
Noise Level: **
74-76 dB(A)
75-79 dB(A)
75-79 dB(A)
70-80 dB(A)
60-80 dB(A)
