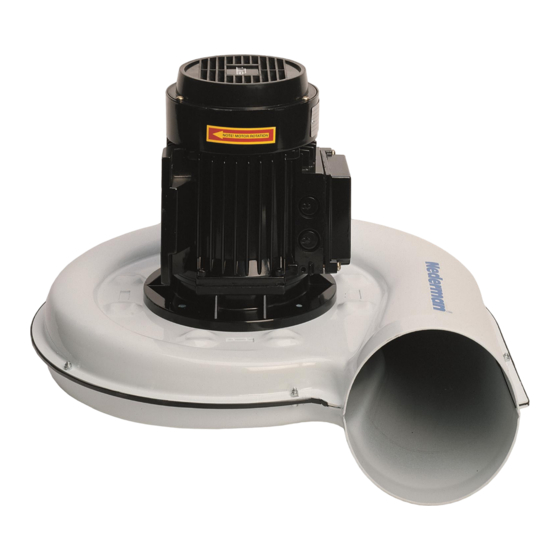

Nederman N Series Installation & Operation Manual
Hide thumbs
Also See for N Series:
- User manual (91 pages) ,
- User manual (62 pages) ,
- User manual (105 pages)
Subscribe to Our Youtube Channel
Related Manuals for Nederman N Series
Summary of Contents for Nederman N Series
- Page 1 Installation & Operation Manual Fans & Pumps N-Series Fans 16-24-27-29-40 REV.1 0523...
-
Page 2: Table Of Contents
4.1 Mounting instruction N16/24/27/29/40 ....................4.2 Electrical installation ................................5 Use N16/24/27/29/40 ................................5.1 Starting Instructions ................................. 5.2 Outdoor Use / Draining ................................ 6 Maintenance ........................................6.1 Spare Parts ......................................7 Recycling ..........................................Nederman Customer Service & Technical Support techsupport.us@nederman.com +1 (336) 821-0800... -
Page 3: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity We, AB Ph. Nederman & Co., declare under our sole responsibility that the Nederman product: N16/24/27/29/40 (Part No. **, and stated versions of **) to which this declaration relates, is in conformity with all the relevant provisions of the following directives and standards:... -
Page 4: Figures
N16/24/27/29/40 Figures 18.7" (475 mm) 6.3" (160 mm) (160 mm) N24, N27 - 13.4" (340 mm) N16 - 12.6" (320 mm) 5.5" (140 mm) 25" (635 mm) c/c 9.06" (230mm) 10.8" (275 mm) 18" (457 mm) 19" (482 mm) c/c 9.06" (230 mm) 22.9"... - Page 5 N16/24/27/29/40 Rotation direction Recommended protection class IP 68 Ø 0.2" (5 mm...
- Page 6 N16/24/27/29/40 N16 - 1 PH m³/h N16 - 3 PH m³/h...
- Page 7 N16/24/27/29/40 N24 - 1 PH m³/h N24 - 3 PH m³/h...
- Page 8 N16/24/27/29/40 N27 - 1 PH m³/h N27 - 3 PH m³/h...
- Page 9 N16/24/27/29/40 N29 - 3 PH m³/h N40 - 3 PH m³/h...
-
Page 10: Preface
N16/24/27/29/40 Preface Thank you for choosing Nederman. We are a world class supplier and developer of products and solutions for the environmental technology sector. Review all product documentation and the identification plate carefully prior to installation, use and maintenance of this product. Replace documentation immediately if lost. -
Page 11: Technical Data
A duct or hose must be fitted on the N40 fan inlet. See Figure 5 page 5. Ensure the fan has not been damaged during transport. Fans without a stand are designed to be mounted directly to other Nederman products. Nederman Customer Service & Technical Support techsupport.us@nederman.com... -
Page 12: Electrical Installation
800 N. If the fan is to be used indoors and is not mounted on another Nederman product, it is to be mounted as near the outlet in the room as possible, in order to give under pressure in the ductwork. -
Page 13: Maintenance
The product has been designed for component materials to be recycled. Different material types must be handled according to relevant local regulations. Contact the distributor or Nederman if uncertainties arise when scrapping the product at the end of its service life. - Page 14 N16/24/27/29/40 The Nederman Group is one of the World’s leading suppliers of products and solutions within the environmental technology sector focusing on industrial air filtration and recycling. These products and solutions reduce the environmental impact of industrial production and create safe and clean working environments while boosting production efficiency.
