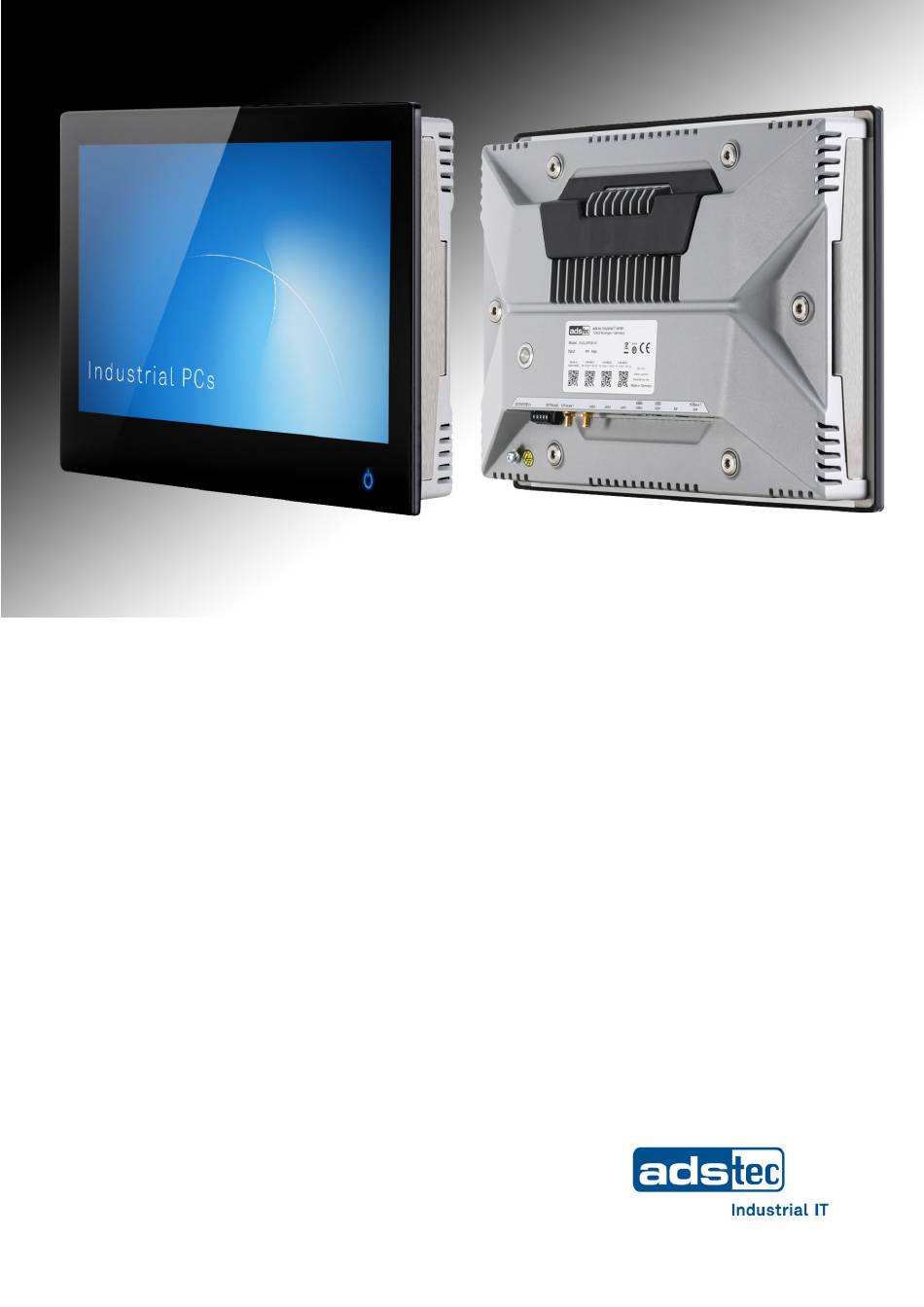

- Page 1 Translation of the original instruction manual Version 1.2 Instruction manual Industrial PCs OPC9000 series Last changed: 2022-01-20...
- Page 2 OPC9000 series − Instruction manual v1.2 Read these instructions carefully before using and store for future reference. These instructions contain important information about the product, in particular about its intended use, safety, installation, utilisation, maintenance and disposal. Hand over the instructions to the user following installation of the product, and pass the manual on to the new user if the product is resold.
-
Page 3: Table Of Contents
OPC9000 series − Instruction manual v1.2 Contents General information about documentation ................5 General information Explanation of safety instructions 1.2.1 Structure of safety instructions 1.2.2 Explanation of signal words Relevant device documentation Symbols Data, figures and modifications Trademarks Copyright General device information ...................... 9... - Page 4 OPC9000 series − Instruction manual v1.2 Commissioning ........................29 Requirements Switching the device on Configuring the device Features (some optional) ......................31 DisplayPort™ HDBaseT™ Big-LinX ® CAN card RAID system WLAN/Wi-Fi Bluetooth™ netJACK plug-in modules RS232 7.10 Wake on LAN (WoL) 7.10.1...
-
Page 5: General Information About Documentation
OPC9000 series − Instruction manual v1.2 1 General information about documentation 1.1 General information The purpose of this instruction manual is to ensure the safe and efficient use of type OPC9000− industrial PCs, hereinafter referred to as the "device". All of the safety instructions and handling instructions given in the manual must be obeyed in order to ensure that work is carried out safely. -
Page 6: Explanation Of Signal Words
OPC9000 series − Instruction manual v1.2 1.2.2 Explanation of signal words DANGER Indicates an imminent danger. If not avoided, death or severe injury will result. WARNING Indicates a possible danger. If not avoided, death or severe injury could result. CAUTION Indicates a possible danger. -
Page 7: Relevant Device Documentation
OPC9000 series − Instruction manual v1.2 1.3 Relevant device documentation The following documents are decisive to device setup and operation: • This instruction manual: contains information for installation, commissioning and operation of the device along with technical data. • Website: You can download the instruction manual as well as drivers, software, user manuals, leaflets and flyers from the Download area of our website www.ads-tec.de. -
Page 8: Trademarks
OPC9000 series − Instruction manual v1.2 1.6 Trademarks It is noted that any software and/or hardware trademarks and any company brand names mentioned in this documentation are all subject to the general trademark protection rights. Big-LinX and X-Remote are registered trademarks of ADS-TEC. -
Page 9: General Device Information
OPC9000 series − Instruction manual v1.2 2 General device information 2.1 Manufacturer and contact details The manufacturer of the device is ads-tec Industrial IT GmbH. The company is referred to in the following as ADS-TEC. ads-tec Industrial IT GmbH Heinrich-Hertz-Str.1 72622 Nürtingen... -
Page 10: Improper Use
OPC9000 series − Instruction manual v1.2 2.3 Improper use Operation other than or beyond that described for the device shall be deemed improper use. The device is not allowed to be used to control vehicles or for applications for which further approvals beyond the manufacturer's declaration are necessary, e.g. -
Page 11: Environmental Conditions
OPC9000 series − Instruction manual v1.2 2.4 Environmental conditions ATTENTION Damage caused by heat! If the device is exposed to sunlight or any other light or heat source, it can overheat and suffer damage. Do not expose the device to direct radiation by sunlight or any other light or heat source! -
Page 12: Vibration/Shock Resistance
OPC9000 series − Instruction manual v1.2 2.4.1 Vibration/shock resistance The vibration/shock resistance tests were performed as follows: Vibration near machines or conveyor belts − DUT: functional device Test standard: EN 60068-2-6 − − Deflection shape: sinusoidal Test axes: X / Y / Z −... -
Page 13: Conformity
OPC9000 series − Instruction manual v1.2 2.5 Conformity The manufacturer hereby declares that the product described in this instruction manual complies with all relevant stipulations of the following European directives: • 2011/65/EU, RoHS Directive • 2014/30/EU, EMC Directive (only devices without WLAN) •... -
Page 14: Warranty / Repairs
OPC9000 series − Instruction manual v1.2 2.6 Warranty / repairs During the device warranty period, any repairs must only be performed by the manufacturer or by service personnel that has been authorised by the manufacturer. 2.7 Limitation of liability ADS-TEC shall not be liable for personal injury, property damage or damage caused to the device as... -
Page 15: Treatment And Disposal Of Lithium Batteries
OPC9000 series − Instruction manual v1.2 2.8 Treatment and disposal of lithium batteries This device contains a lithium battery for supplying the system clock with power as long as the supply voltage is not connected. The battery has a life cycle of 3-5 years depending on which load is applied. -
Page 16: Scope Of Delivery
OPC9000 series − Instruction manual v1.2 3 Scope of delivery Check that the contents of the package are intact: If there are signs of damage, please contact the manufacturer immediately. The device must not be put into operation. Check that the contents of the package are complete and match your order: 1 x device −... -
Page 17: Mechanical Installation
OPC9000 series − Instruction manual v1.2 4 Mechanical installation 4.1 Requirements The device is intended to be installed in a recess in a wall or cabinet. • • The installation site must be accessible from the rear. • The wall can be between 1.5 and 6 mm thick. -
Page 18: Installation Recess Opc9019
OPC9000 series − Instruction manual v1.2 4.3 Installation recess OPC9019 4.4 Installation recess OPC9024 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany... -
Page 19: Device Installation - Sequence
OPC9000 series − Instruction manual v1.2 4.5 Device installation – Sequence 1. Depending on the orientation of the device, loosen, for example, the left and right clamp by turning the clamping screws clockwise (5 mm hex socket). The clamps will protrude slightly from the housing due to spring pressure. - Page 20 OPC9000 series − Instruction manual v1.2 2. Press the loosened clamps in, and insert the device into the wall recess from the front. 3. Once the device is in place, the spring tension should cause the clamps to snap over the inner edge of the wall recess.
-
Page 21: Electrical Connections
OPC9000 series − Instruction manual v1.2 5 Electrical connections 5.1 Requirements ATTENTION Damage due to electrostatic discharge! Damage to the device can be caused by electrostatic discharge. Always adhere to the safety measures applicable when handling components at risk of being •... -
Page 22: Interfaces
OPC9000 series − Instruction manual v1.2 5.3 Interfaces 5.3.1 Overview Example illustration. Position assignments may differ depending on the version: Description Protective earth (PE) connection, see section 5.2 Power supply and digital input/output, see section 5.3.2 Options at this position: −... -
Page 23: Power Supply
OPC9000 series − Instruction manual v1.2 5.3.2 Power supply Digital output 24 VDC DO DI 0V FE V+ Digital input 24 VDC Reference potential GND Functional earth (The figure shows the socket inside the device) +24 VDC ± 20% Conductor cross sections: V+ / FE / 0V: AWG 18 (≙ 0.75 mm The permissible voltage ranges and the maximum values for the power consumption can be found in Section 12 Technical Data. -
Page 24: Digital Input And Output
OPC9000 series − Instruction manual v1.2 5.3.3 Digital input and output Digital output Type 3 according to IEC61131 (no self-diagnostic function) 0 signal = 0 V (high impedance), 1 signal = 24 VDC, max. 30 mA. Reverse voltage polarity protection. -
Page 25: Can Interface
OPC9000 series − Instruction manual v1.2 5.3.4 CAN interface The optional CAN bus card features two separate CAN buses connected together via a 9-pin Sub-D connector. The connector on the power supply line assembled by the customer must have the following pin... -
Page 26: Maximum Cable Lengths
OPC9000 series − Instruction manual v1.2 5.4 Maximum cable lengths Recommendation for use: Note the maximum cable lengths for the respective application type. The maximum length of cables which can be used to connect the monitor and computer is: HDMI up to max. 15 m DisplayPort up to max. -
Page 27: Operation Of Multiple Monitors On One Opc9
OPC9000 series − Instruction manual v1.2 5.5 Operation of multiple monitors on one OPC9 5.5.1 Quantity Up to three monitors can be operated in parallel: the integrated display of the OPC9, a FullHD monitor at the DP port of the OPC9, a FullHD monitor via HDBaseT. -
Page 28: Operation Of Three Cloned Displays
OPC9000 series − Instruction manual v1.2 5.5.3 Operation of three cloned displays The Intel Graphics Control Room app enables the display of three identical desktops. ® Recommendation: The Windows display settings in this case only show a 1|2 or 1|3 clone, which does not correspond to the facts. -
Page 29: Commissioning
OPC9000 series − Instruction manual v1.2 6 Commissioning 6.1 Requirements ATTENTION Hazard due to condensation Damage to electronic components caused by condensation resulting from temperature fluctuations. Switch on the device only after it has acclimated to the ambient temperature. •... -
Page 30: Configuring The Device
OPC9000 series − Instruction manual v1.2 6.3 Configuring the device After start-up there is an icon on the Windows Desktop that can be used to call up the ADS-TEC Configuration Center. Important: To be able to configure settings, you will need to start the Configuration Center with administrator rights (right-click with mouse and select "Run as... -
Page 31: Features (Some Optional)
OPC9000 series − Instruction manual v1.2 7 Features (some optional) 7.1 DisplayPort™ The devices have a DisplayPort connection in version DisplayPort++™ (1.1) as standard for data transmission to a monitor. 7.2 HDBaseT™ With HDBaseT™, the connection between the computer and monitor is established using a LAN cable with RJ45 plugs. -
Page 32: Can Card
OPC9000 series − Instruction manual v1.2 7.4 CAN card The optional CAN bus card from PEAK features two separate CAN buses connected together via a 9-pin Sub-D connector. The two buses are galvanically isolated from each other and from the device’s electrical system. -
Page 33: Raid System
OPC9000 series − Instruction manual v1.2 7.5 RAID system The device supports two separate SSD mass storage devices that can be used together with the help of RAID technology (RAID = redundant array of independent disks). To use this function, two type M.2 2242 Key M SSD cards with a SATA interface are required. -
Page 34: Netjack Plug-In Modules
OPC9000 series − Instruction manual v1.2 7.8 netJACK plug-in modules The netJACK plug-in modules from Hilscher make it possible to connect the device with all common fieldbus and real-time Ethernet systems, such as PROFIBUS DP, PROFINET IO, CANopen ® ®... - Page 35 OPC9000 series − Instruction manual v1.2 7.9 RS232 Hardware configuration (figure shows socket in the device) Seen from the IPC9: Pin 2 Receive Data Input Pin 3 Transmit Data Output Pin 5 Ground – Reference potential Configuration of the driver “WhlHsUart”...
-
Page 36: Wake On Lan (Wol)
OPC9000 series − Instruction manual v1.2 7.10 Wake on LAN (WoL) This function can be used for event-driven start-up of "sleeping" computers on the local network, such as for running updates at night. The interfaces LAN1 … LAN 3 are available for this purpose:... -
Page 37: Settings In The Operating System (Windows 10)
OPC9000 series − Instruction manual v1.2 7.10.2 Settings in the operating system (Windows 10) In Device Manager under Network adapters, open the properties dialogue box of the Ethernet controller for the LAN connector being used (the example here is for LAN1): Make the following settings on the "Advanced"... - Page 38 OPC9000 series − Instruction manual v1.2 3. Disable "Wake on Link Settings": 4. On the Power Management tab: "Allow the device to wake the computer": © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany...
-
Page 39: Software / Driver Installation
OPC9000 series − Instruction manual v1.2 8 Software / driver installation 8.1 Initial installation of the operating system The devices are delivered with a pre-installed operating system depending on the client's specifications. If the mass storage has been reformatted, the operating system can be reinstalled by using one of the existing interfaces (alternatively via USB or PXE). -
Page 40: Maintenance
OPC9000 series − Instruction manual v1.2 10 Maintenance CAUTION Burns and scaring due to hot surfaces Touching hot surfaces can cause burns. In addition, unexpected contact can lead to uncontrolled movements due to startling. Allow the unit to cool down before servicing. -
Page 41: Removing The Device
OPC9000 series − Instruction manual v1.2 10.1 Removing the device ATTENTION Depending on the installation situation, have a person hold the front of the device, if needed to prevent it from falling down after the clamps are loosened. 1. Loosen the clamping screws by turning counter- clockwise (5 mm hex socket). -
Page 42: Opening And Closing The Service Slot
OPC9000 series − Instruction manual v1.2 10.2 Opening and closing the service slot ATTENTION Damage due to electrostatic discharge! Damage to the device can be caused by electrostatic discharge. Always adhere to the safety measures applicable when handling components at risk of being •... -
Page 43: Replacing The Bios Battery
OPC9000 series − Instruction manual v1.2 10.3 Replacing the BIOS battery The BIOS battery has a life cycle of 3-5 years depending on the load applied. Recommendation for use: To prevent unexpected plant downtime, as a precaution the BIOS battery should be replaced within the scope of the maintenance plan (e.g. -
Page 44: Installing Or Removing Ssd Cards
OPC9000 series − Instruction manual v1.2 10.4 Installing or removing SSD cards Format: SSD cards with the format M.2 2242 Key M can be used. Interface: depending on the slot, SATA or NVMe cards can be used (see figure below). -
Page 45: Removing And Installing The Hilscher Netjack Module
OPC9000 series − Instruction manual v1.2 10.5 Removing and installing the Hilscher netJACK module 10.5.1 Removal Fully pull the pull tab out using a tool such as a flat-nose pliers. Pull the module out approx. 5 mm. Then, lift the module a bit to lift the metal brackets out of the circuit board. -
Page 46: Installation
OPC9000 series − Instruction manual v1.2 10.5.2 Installation • For modules in their original packaging: Remove the ESD protective cardboard packaging. Never touch the contacts! Move the pull-out tab to a middle position. • • Insert the module so that the contacts point towards the circuit board. -
Page 47: Fyi: Fixing The Module To The Circuit Board
OPC9000 series − Instruction manual v1.2 10.5.3 FYI: Fixing the module to the circuit board The module is clamped onto the circuit board with four metal brackets. The metal brackets must be inserted into the recesses in the circuit board: ... -
Page 48: Dimensional Drawings
OPC9000 series − Instruction manual v1.2 11 Dimensional drawings The dimensions of the wall recesses for installation can be found in Section 4 Mechanical installation. 11.1 OPC9016 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany... -
Page 49: Opc9019
OPC9000 series − Instruction manual v1.2 11.2 OPC9019 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany... -
Page 50: Opc9024
OPC9000 series − Instruction manual v1.2 11.3 OPC9024 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany... -
Page 51: Technical Data
OPC9000 series − Instruction manual v1.2 12 Technical data OPC9016 OPC9019 OPC9024 Display 15.6“ TFT Full HD 18.5“ TFT Full HD 23.8“ TFT Full HD Brightness 450 Nits (typ.) 500 Nits (typ.) 250 Nits (typ.) Contrast ratio 800:1 (typ.) 1000:1 (typ.) 1000:1 (typ.) - Page 52 OPC9000 series − Instruction manual v1.2 OPC9016 OPC9019 OPC9024 Vibration/shock See Section 2.4.1 "Environmental conditions" resistance Class A (industrial sector) as per EN 61000-6-2/4 Dimensions See section 11 "Dimensional drawings" Operating system Windows 10 IoT Enterprise 2019 LTSC Weight Approx. 5.0 kg Approx.
-
Page 53: Service & Support
OPC9000 series − Instruction manual v1.2 13 Service & support ADS-TEC and its partner companies offer you comprehensive maintenance and support services, ensuring quick and competent support should you have any questions or concerns with regard to ADS- TEC products and equipment.
