adstec OPW9000 Series Instruction Manual

Industrial web panels

Advertisement

Quick Links

Translation of the original instruction manual
Version 1.1.4
Last changed: 2024-10-29
Instruction manual
Industrial Web Panels
OPW9000 series

Advertisement

loading
Need help?

Need help?

Do you have a question about the OPW9000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for adstec OPW9000 Series

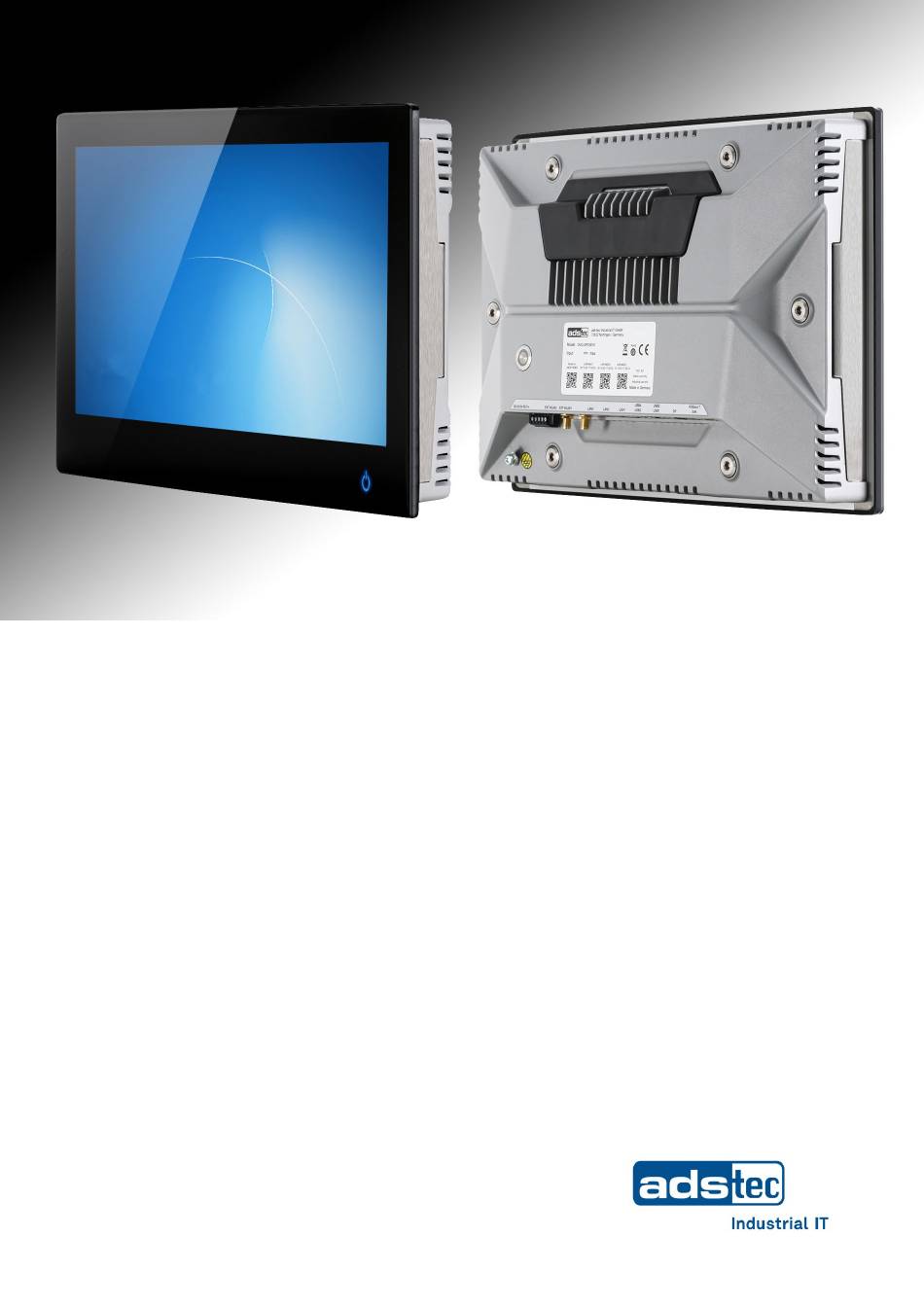

  • Page 1 Translation of the original instruction manual Version 1.1.4 Instruction manual Industrial Web Panels OPW9000 series Last changed: 2024-10-29...
  • Page 2 OPW9000 series − Instruction manual v1.1.4 Read these instructions carefully before using and store for future reference. These instructions contain important information about the product, in particular about its intended use, safety, installation, utilisation, maintenance and disposal. Hand over the instructions to the user following installation of the product, and pass the manual on to the new user if the product is resold.
  • Page 3 OPW9000 series − Instruction manual v1.1.4 Contents General information about documentation ................5 General information Explanation of safety instructions 1.2.1 Structure of safety instructions 1.2.2 Explanation of signal words Relevant device documentation Symbols Data, figures and modifications Trademarks Copyright General device information ...................... 9...
  • Page 4 OPW9000 series − Instruction manual v1.1.4 10 Dimensional drawings ......................34 10.1 OPW9016 10.2 OPW9019 10.3 OPW9024 11 Technical data ........................37 12 Service & support ........................38 12.1 ADS-TEC support 12.2 Company address © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany...
  • Page 5 OPW9000 series − Instruction manual v1.1.4 1 General information about documentation 1.1 General information The purpose of this instruction manual is to ensure the safe and efficient use of type OPW9000− industrial Web Panels, hereinafter referred to as the "device".
  • Page 6 OPW9000 series − Instruction manual v1.1.4 1.2.2 Explanation of signal words DANGER Indicates an imminent danger. If not avoided, death or severe injury will result. WARNING Indicates a possible danger. If not avoided, death or severe injury could result. CAUTION Indicates a possible danger.
  • Page 7 OPW9000 series − Instruction manual v1.1.4 1.3 Relevant device documentation The following documents are decisive to device setup and operation: • This instruction manual: contains information for installation, commissioning and operation of the device along with technical data. • Website: You can download the instruction manual as well as drivers, software, user manuals, leaflets and flyers from the Download area of our website www.ads-tec.com...
  • Page 8 OPW9000 series − Instruction manual v1.1.4 1.6 Trademarks It is noted that any software and/or hardware trademarks and any company brand names mentioned in this documentation are all subject to the general trademark protection rights. Big-LinX and X-Remote are registered trademarks of ADS-TEC.
  • Page 9 OPW9000 series − Instruction manual v1.1.4 2 General device information 2.1 Manufacturer and contact details The manufacturer of the device is ads-tec Industrial IT GmbH. The company is referred to in the following as ADS-TEC. ads-tec Industrial IT GmbH Heinrich-Hertz-Str.1 72622 Nürtingen...
  • Page 10 OPW9000 series − Instruction manual v1.1.4 2.3 Improper use Operation other than or beyond that described for the device shall be deemed improper use. The device is not allowed to be used to control vehicles or for applications for which further approvals beyond the manufacturer's declaration are necessary, e.g.
  • Page 11 OPW9000 series − Instruction manual v1.1.4 2.4 Environmental conditions ATTENTION Damage caused by heat If the device is exposed to sunlight or any other light or heat source, it can overheat and suffer damage.  Do not expose the device to direct radiation by sunlight or any other light or heat source.
  • Page 12 OPW9000 series − Instruction manual v1.1.4 2.4.1 Vibration/shock resistance The vibration/shock resistance tests were performed as follows: Vibration near machines or conveyor belts − DUT: functional device Test standard: EN 60068-2-6 − − Deflection shape: sinusoidal Test axes: X / Y / Z −...
  • Page 13 OPW9000 series − Instruction manual v1.1.4 2.5 Conformity The manufacturer hereby declares that the product described in this instruction manual complies with all relevant stipulations of the following European directives: • 2011/65/EU RoHS Directive • 2014/30/EU EMC Directive • EC 1907/2006 REACH Regulation The device is a Class A device (industrial sector).
  • Page 14 OPW9000 series − Instruction manual v1.1.4 2.6 Warranty / repairs During the device warranty period, any repairs must only be performed by the manufacturer or by service personnel that has been authorised by the manufacturer. 2.7 Limitation of liability ADS-TEC shall not be liable for personal injury, property damage or damage caused to the device as...
  • Page 15 OPW9000 series − Instruction manual v1.1.4 3 Scope of delivery Check that the contents of the package are intact: If there are signs of damage, please contact the manufacturer immediately. The device must not be put into operation. Check that the contents of the package are complete and match your order: 1 x device −...
  • Page 16 OPW9000 series − Instruction manual v1.1.4 4 Mechanical installation 4.1 Requirements The device is intended to be installed in a recess in a wall or cabinet. • • The installation site must be accessible from the rear. • The wall can be between 1.5 and 6 mm thick.
  • Page 17 OPW9000 series − Instruction manual v1.1.4 4.3 Installation recess OPW9019 4.4 Installation recess OPW9024 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany...
  • Page 18 OPW9000 series − Instruction manual v1.1.4 4.5 Device installation – Sequence 1. Depending on the orientation of the device, loosen, for example, the left and right clamp by turning the clamping screws clockwise (5 mm hex socket). The clamps will protrude slightly from the housing due to spring pressure.
  • Page 19 OPW9000 series − Instruction manual v1.1.4 2. Press the loosened clamps in, and insert the device into the wall recess from the front. 3. Once the device is in place, the spring tension should cause the clamps to snap over the inner edge of the wall recess.
  • Page 20 OPW9000 series − Instruction manual v1.1.4 5 Electrical connections 5.1 Requirements ATTENTION Damage due to electrostatic discharge! Damage to the device can be caused by electrostatic discharge. Always adhere to the safety measures applicable when handling components at risk of being •...
  • Page 21 OPW9000 series − Instruction manual v1.1.4 5.3 Interfaces 5.3.1 Overview Protective earth (PE), see chapter 5.2. Power supply, see chapter 5.3.2 2 x LAN RJ45 (via internal Ethernet switch) 4 x USB 3.0 type A (via internal USB hub) Factory Default Button 5.3.2 Power supply...
  • Page 22 OPW9000 series − Instruction manual v1.1.4 6 Commissioning 6.1 Requirements ATTENTION Hazard due to condensation Damage to electronic components caused by condensation resulting from temperature fluctuations. Switch on the device only after it has acclimated to the ambient temperature. •...
  • Page 23 OPW9000 series − Instruction manual v1.1.4 6.2 Configuring the device Step 1: Apply power supply -> 3-pin plug The device starts. The Configuration Wizard opens at the first start. After setting the browser URL, the entered URL opens directly. Power Supply...
  • Page 24 OPW9000 series − Instruction manual v1.1.4 Step 3: Enter user name and password (admin; admin) Login Screen Step 4: Config Wizard opens Step 4.1: Set language (choose between German and English) Language selection Config Wizard Step 4.2: If you have an existing configuration file, you can upload it here.
  • Page 25 OPW9000 series − Instruction manual v1.1.4 Step 4.3: Assign new password -> Password is reset to “admin” after resetting the device. Password assignment Config Wizard Step 4.4: In this step, you can configure the interface via which the Internet is to be reached...
  • Page 26 OPW9000 series − Instruction manual v1.1.4 Step 4.5: Date and time If the device has direct Internet access, select the time source: “Time server” and use the suggested time server. For your own time servers, enter their IP addresses. If you do not have access to time servers, select “Manual”.
  • Page 27 OPW9000 series − Instruction manual v1.1.4 Step 4.7: Browser In the last step of the Config Wizard, enter your web panel URL. From this moment on, the device switches to the specified URL page and can only be switched back to the configuration page by restarting (step 2)
  • Page 28 OPW9000 series − Instruction manual v1.1.4 Further settings: © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany...
  • Page 29 OPW9000 series − Instruction manual v1.1.4 Tip: To be able to spontaneously switch between configuration and display while working as a developer, tick the box next to "Enable left/right swipe gesture to switch to config mode": Swipe from top right to bottom left: Switch to configuration mode.
  • Page 30 OPW9000 series − Instruction manual v1.1.4 7 Features (optional) 7.1 Big-LinX ® Big-LinX is a versatile and scalable platform for different IoT applications. To establish a connection to the Big-LinX cloud, insert the • Big-LinX smart card into the slot labelled SIM.
  • Page 31 OPW9000 series − Instruction manual v1.1.4 9 Maintenance CAUTION Burns and scaring due to hot surfaces Touching hot surfaces can cause burns. In addition, unexpected contact can lead to uncontrolled movements due to startling. Allow the unit to cool down before servicing.
  • Page 32 OPW9000 series − Instruction manual v1.1.4 9.1 Removing the device ATTENTION Depending on the installation situation, have a person hold the front of the device, if needed to prevent it from falling down after the clamps are loosened. 1. Loosen the clamping screws by turning counter- clockwise (5 mm hex socket).
  • Page 33 OPW9000 series − Instruction manual v1.1.4 9.2 Opening and closing the service slot ATTENTION Damage due to electrostatic discharge! Damage to the device can be caused by electrostatic discharge. Always adhere to the safety measures applicable when handling components at risk of being •...
  • Page 34 OPW9000 series − Instruction manual v1.1.4 10 Dimensional drawings The dimensions of the wall recesses for installation can be found in Section 4 Mechanical installation. 10.1 OPW9016 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany...
  • Page 35 OPW9000 series − Instruction manual v1.1.4 10.2 OPW9019 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany...
  • Page 36 OPW9000 series − Instruction manual v1.1.4 10.3 OPW9024 © ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany...
  • Page 37 OPW9000 series − Instruction manual v1.1.4 11 Technical data OPW9016 OPW9019 OPW9024 Display 15.6“ TFT Full HD 18.5“ TFT Full HD 23.8“ TFT Full HD Brightness 450 Nits (typ.) 500 Nits (typ.) 250 Nits (typ.) Contrast ratio 800:1 (typ.) 1000:1 (typ.) 1000:1 (typ.)
  • Page 38 OPW9000 series − Instruction manual v1.1.4 12 Service & support ADS-TEC and its partner companies offer you comprehensive maintenance and support services, ensuring quick and competent support should you have any questions or concerns with regard to ADS- TEC products and equipment.
