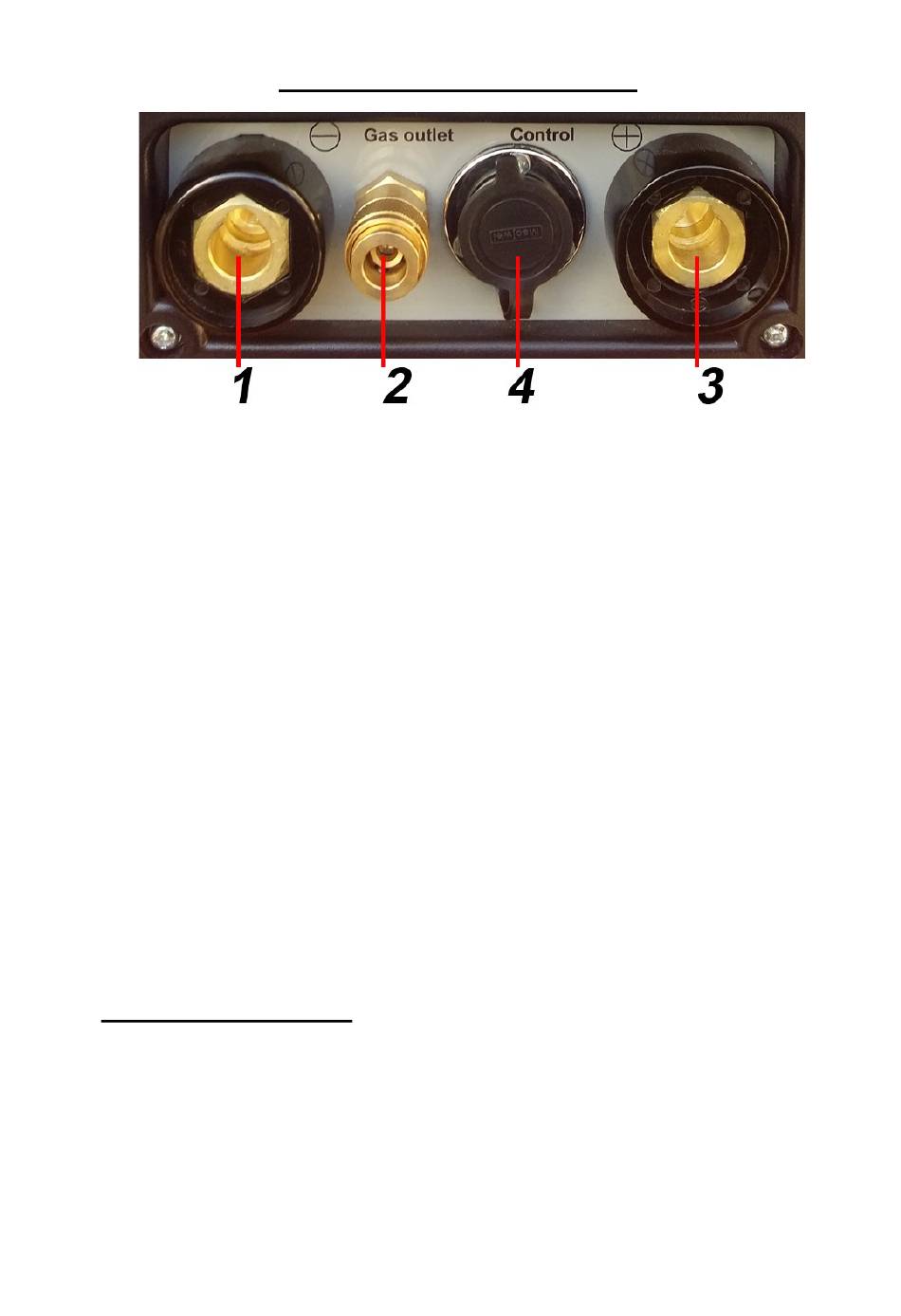

1. Negative power connector -
Connect TIG Torch Dinze to power connector by inserting and twisting until Tight
ENSURE TIG TORCH IS FITTED TO NEGATIVE CONNECTOR OTHERWISE YOU
WILL EXPERIENCE TUNGSTEN BURNBACK
2. Gas outlet - Quick release type
Connect the torch gas hose
3. Positive power connector +
Connect the earth lead to by inserting and twisting until Tight and the earth
clamp to work/bench
4. Torch control socket 7-Pin
Connect torch control plug
To avoid a High Frequency shock, keep the TIG torch in good condition and replace if any
of the insulation is damaged.
Connect the gas input hose to gas regulator and use 'Pure Argon' Gas, available from local
suppliers. Set gas flow/pressure to 8 LPM. Make sure gas bottle is secured to avoid injury.
Remote Foot Pedal connection.
Disconnect TIG Torch switch plug from torch control socket (Fig2.4) and connect plug from
foot pedal.
Connections for TIG (GTAW) Welding
Fig 2
