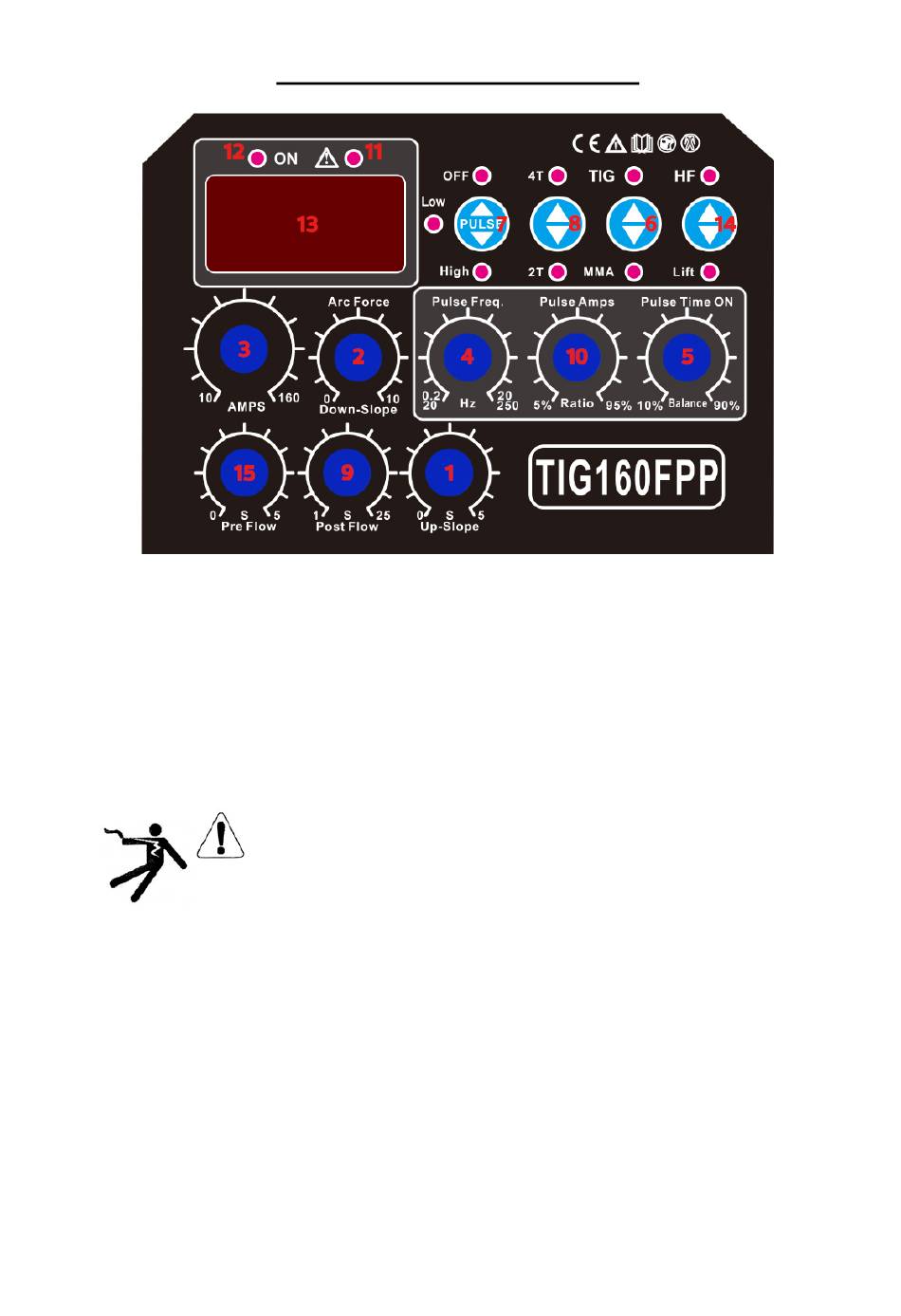

1. Fit MMA electrode holder to + terminal on machine
2. Fit earth lead to - terminal on machine and to work piece
3. Select MMA (stick) on front panel
4. Place electrode in holder
5. Select desired welding current with selector knob
6. Select desired MMA Arc Force 0 - 100
7. Strike arc and weld
WARNING!
ELECTRIC
SHOCK CAN KILL
When machine is switched to MMA mode, output terminals are always live, take care and do
not touch electrode and earth by person at same time, otherwise electric shock will occur.
Welding in STICK MMA (SMAW) Mode
