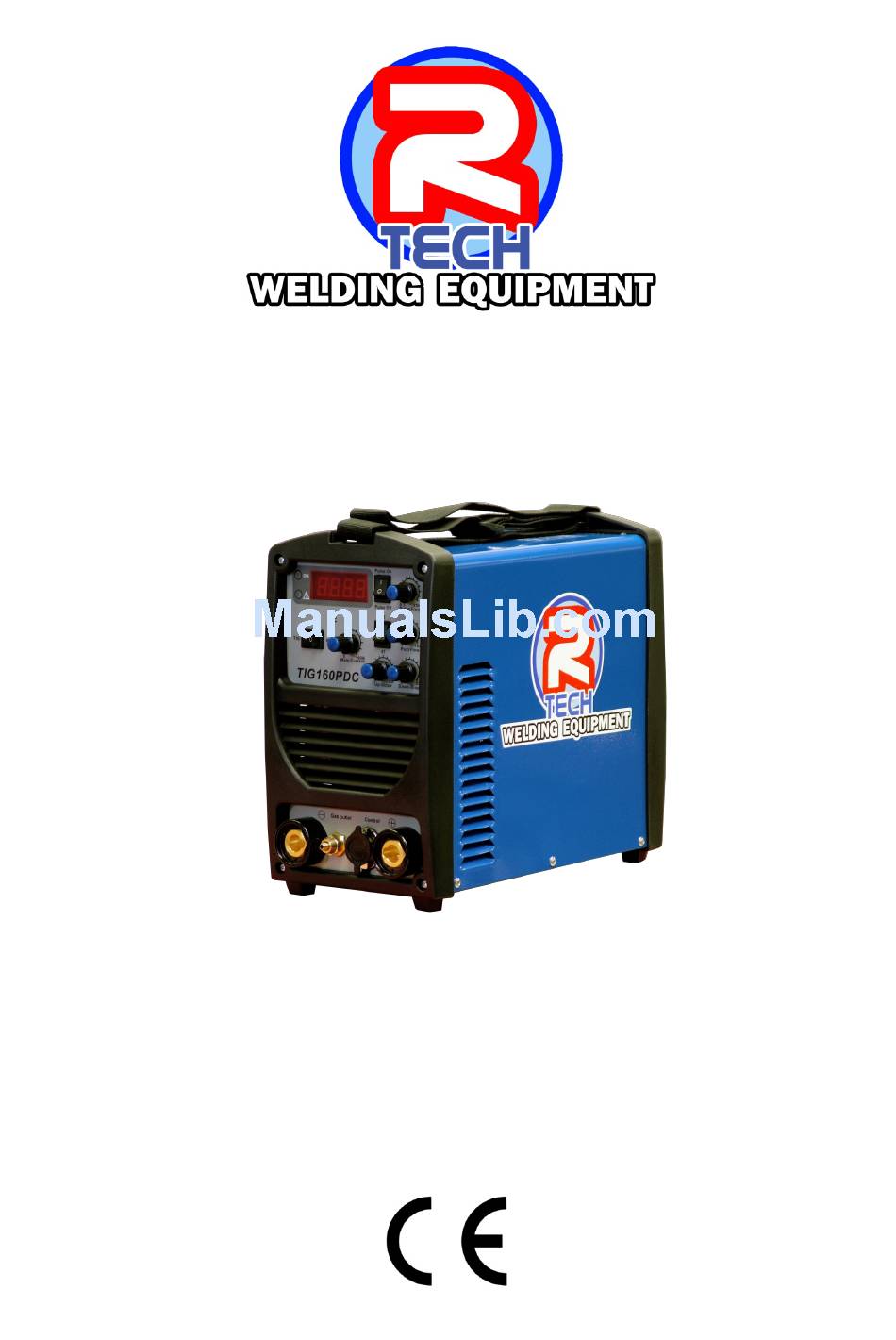

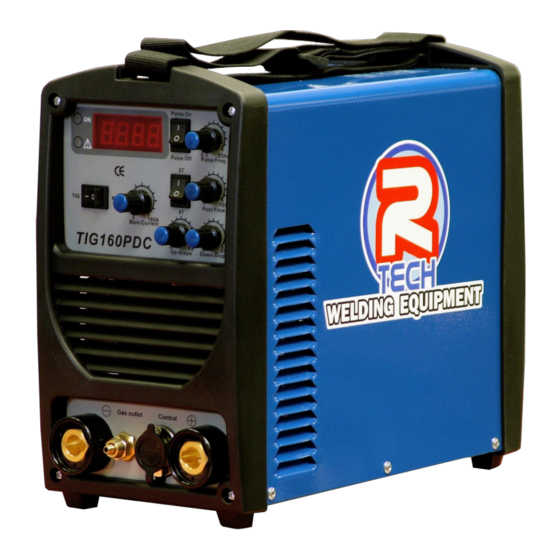

- Page 1 Tel: 01452 733933 Fax 01452 733939 TIG160PDC DC TIG WELDER OPERATION INSTRUCTIONS Version 2014-1...
- Page 3 The Tig160PDC has many benefits over traditional TIG welders, including pulse welding, slope up/down and an industrial 35% duty cycle. We want you to take pride in operating our Tig160PDC as much pride as we have taken in making this product for you.
- Page 4 Welding Capability – Duty Cycle The R-Tech Tig160PDC is rated at 160 Amps at 35% duty cycle on a ten minute basis. If the duty cycle is exceeded a thermal protector will shut machine off until the machine cools.
-
Page 5: Safety Precautions
Safety Precautions Read entire section before starting installation WARNING! Electric Shock can kill – Only qualified personnel should perform this installation. Turn off input power at the fuse box before working on this equipment. Do not touch electrically live parts. Always connect the machine to an earthed mains supply as per national recommended standards. -
Page 6: Electrical Installation
Electrical Installation WARNING! ELECTRIC SHOCK CAN KILL Machine grounding and High Frequency Interference Protection This welder must be grounded to earth. See national electrical codes fro proper grounding methods. The high frequency generator being similar to a radio transmitter may cause interference to radio, TV and other electronic equipment. - Page 7 Allow machine to sit for 5 minutes minimum to allow the power capacitors to discharge before working inside this equipment. Do not touch electrically live parts The TIG160PDC Inverter Tig Welder requires a 240V 50/60Hz 13amp fused supply. It comes with a 2 metre mains cable attached.
- Page 8 Connections for Tig160PDC Rear machine connections Fig 1 1. Mains input cable Fit required plug as per your electrical installation 2. On/Off Switch 3. Gas input connector Connect input gas hose ensuring connection is tight 4. Earth for chassis If experiencing localized interference when using machine, connect workbench to this point...
-
Page 9: Connections For Tig (Gtaw) Welding
Connections for TIG (GTAW) Welding Fig 2 1. Negative power connector - Connect Tig Torch Dinze to power connector by inserting and twisting until tight 2. Gas outlet Connect the torch gas hose 3. Positive power connector + Connect the earth lead to by inserting and twisting until tight and the earth clamp to work/bench 4. -
Page 10: Connections For Stick Mma (Smaw) Welding
Connections for STICK MMA (SMAW) Welding Fig 3 1. Negative power connector - Connect the earth lead to by inserting and twisting until tight and the earth clamp to work/bench. 2. Gas Outlet – NOT used in MMA mode 3. Positive power connector + Connect the electrode holder by inserting and twisting until tight 4. -
Page 11: Controls And Settings
Controls and settings Fig 4 1. Up slope Adjustment 0-5 seconds. The main welding current raises from minimum amperage to main current selected in time selected when weld started 2. Down slope Down-Slope adjustment 0-5 seconds. The main welding current decreases from main amperage to minimum amperage in time selected when weld finished 3. - Page 12 7. Pulse On/Off switch This turns the pulse welding on and off. 8. 2/4 Way selector switch 2/4 Step trigger mode switch – tig welding can either be done in 2 or 4 step mode. When the trigger mode is in the 2 step position the following sequence will occur Press and hold the Tig torch switch to start sequence.
- Page 13 Press and hold the tig torch switch to start sequence. The machine will open gas valve to start flow of shield gas, after a 0.5 seconds pre-flow time to purge air from torch hose the welding output of machine will be turned on and the arc will be started.
-
Page 14: Operating Machine
Operating machine SAFETY PRECAUTIONS WARNING! ELECTRIC SHOCK CAN KILL Do not touch electrically live parts or electrode with skin or wet clothing. Insulate yourself from work and ground Always wear dry insulating gloves WARNING! FUMES AND GASES can be dangerous Keep your head out of fumes &... -
Page 15: Welding In Tig Mode - With Pulse
Welding in TIG mode – No Pulse 1. Connect the Tig Torch to machine, connect earth lead to machine & work piece. 2. Set the TIG/MMA switch to TIG 3. Set Pulse Switch to Off position 4. Select 2 or 4 way torch operation 5. -
Page 16: Welding In Stick Mma (Smaw) Mode
Welding in STICK MMA (SMAW) Mode 1. Fit MMA electrode holder to machine 2. Fit earth lead to machine and to work piece 3. Select MMA on MMA/TIG switch 4. Place electrode in holder 5. Select desired welding base current 6. -
Page 17: Maintenance
5. The fan motor has sealed bearings which requires no maintenance Troubleshooting Service & repair should only be performed by R-Tech welding trained personnel. Un-authorised repairs performed on this welding equipment may result in danger or injury to the technician and machine operator and will invalidate your warranty. -
Page 18: Tig Welding Problems
• Machine keeps overheating - Warning light is lit on machine Check if fan is running – if not contact R-Tech for repair Check the cooling vents for obstruction, blow out machine with clean dry low pressure air supply. Check for adequate ventilation around machine •... - Page 19 • Poor weld penetration Check condition of earth lead and clamp and ensure clamp is connection via a clean area on work piece Check condition of TIG torch, try other TIG torch • Machine stuck on minimum amps when welding although higher amperage has been Make sure machine has not been set to 4-way operation as when in this mode when you press torch switch you get minimum amps and when you let go of switch machine will go to maximum amps set.
- Page 20 • No HF when torch trigger pressed, no blue spark between HF points Examine and clean HF points with clean dry low pressure air line HF PCB faulty – Contact R-Tech for repair MMA Stick welding problems • Stick electrode ‘blasts off’ when arc is struck...
