Rose electronics CTP-4P Specifications

Caretaker Plus

Features and Benefits

Simultaneous inputs accepted from all computers
Units can be linked together if more than 8 users
need access to a connected peripheral
Available in serial (RS232) or parallel (Centronics)
Each port can automatically send a "form-feed"
Up to two megabyte buffer option
Serial units have programmable baud rate and flow
control
Noise protection feature prevents computers being
powered on or off from generating spurious data
Mode, data, busy, and error LEDs show data activity
and status
Power-up self-test and error display show any
hardware problems
Unlimited technical support
Rack mount kits available
Made in the USA
Buffered automatic switch
Available in four or eight-port models
Serial or parallel versions
Compatible with most serial and parallel devices
Up to 2MB buffer memory
The Caretaker™ Plus Advantage . . .
The Caretaker Plus makes it possible for you to connect
up to eight computers or terminals to a common printer,
plotter, or other serial or parallel device.
Designed with your needs in mind, the Caretaker Plus
uses commonly available cables, is compatible with all
computers, printers, and plotters, and has up to 2MB of
buffered memory. The buffered memory allows multiple
computers to simultaneously send data to the unit for
fast, efficient printer sharing.
Serial models support BAUD rates up to 19,200 BAUD
(RS422 optional)
Parallel models support standard Centronics parallel
(DB25 parallel optional)
Accessing the shared device is simply done by sending
data to the unit. The data is sent to the device in the
order it was received. There is no easier way to share a
common peripheral than with the Caretaker Plus.
Easy installation, easy expansion, and easy
maintenance...everything you've come to expect in
Rose Electronics products. Call us today to discuss your
printer or device sharing application.

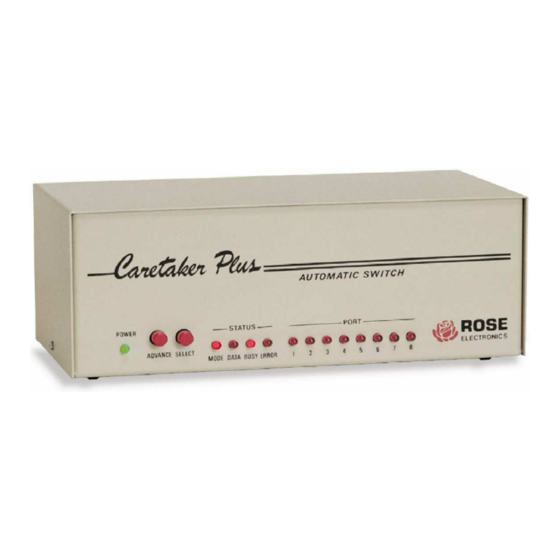

Advance and select buttons for
Configuration, Status indicators
Show mode, busy, select and error
Automatic Switch
W W W . R O S E . C O M
