MasterSwitch

Features and Benefits

Uses standard RS232 serial and parallel Centronics
interfaces
Used for printer sharing, modem sharing, data
collection, machine control, and serial networking
Three model lines to choose from:
MS-Series – 5 or 9 ports, all serial, all parallel, or
mixed serial and parallel
U-Series – 3, 6, or 9 ports, each port programmable
as serial or parallel, input or output
N-Series – 4, 8, 12, or 16 serial ports and 1 parallel
port, supports file transfer at 115.2K
Dynamically allocated buffer expandable to four
megabytes
Over 20 commands for controlling the flow of data
Menus for configuration, port connection and access,
and job control
Supplied with MasterLink™ utility disk
Advanced queue system controls access and priority
of multiple inputs to multiple outputs
From the job control menu you can view all jobs in
queue and cancel, hold, or release them
All configuration parameters can be saved in
non-volatile memory
Made in the USA
Our most powerful serial and
parallel data switch
Connects multiple inputs to multiple outputs
Up to 4 Megabyte buffer memory
Combined automatic and code activated
switching functions
The MasterSwitch™ Advantage . . .

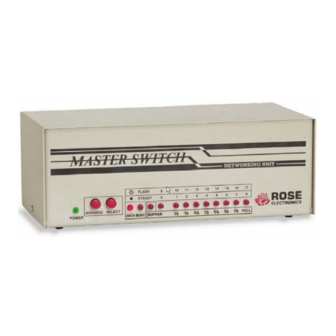

The MasterSwitch is a very versatile product that
offers unmatched speed, power, and flexibility for
PC and peripheral sharing. The MasterSwitch can
manage up to seventeen ports for inter-connecting
your computers and peripherals.
The MasterSwitch accepts over 20 commands for
controlling the flow of data. It can also be used
automatically or controlled by interactive menus.
Switching applications include; office automation,
CAD/CAM, machine control, data collection, data
communications, telecommunications, retail point-
of-sale, and others.
The features of the MasterSwitch make it possible
for this intelligent data switch to tackle the most
demanding applications. With three model lines to
choose from, each chainable for future expansion,
there is a unit to meet your needs.
When it comes to managing peripherals and
computer access, nothing comes close to the Rose
MasterSwitch. Contact our sales department for
more information.
Over 20 commands
Control flow of data
W W W . R O S E . C O M
