Summary of Contents for Trac Vac 865

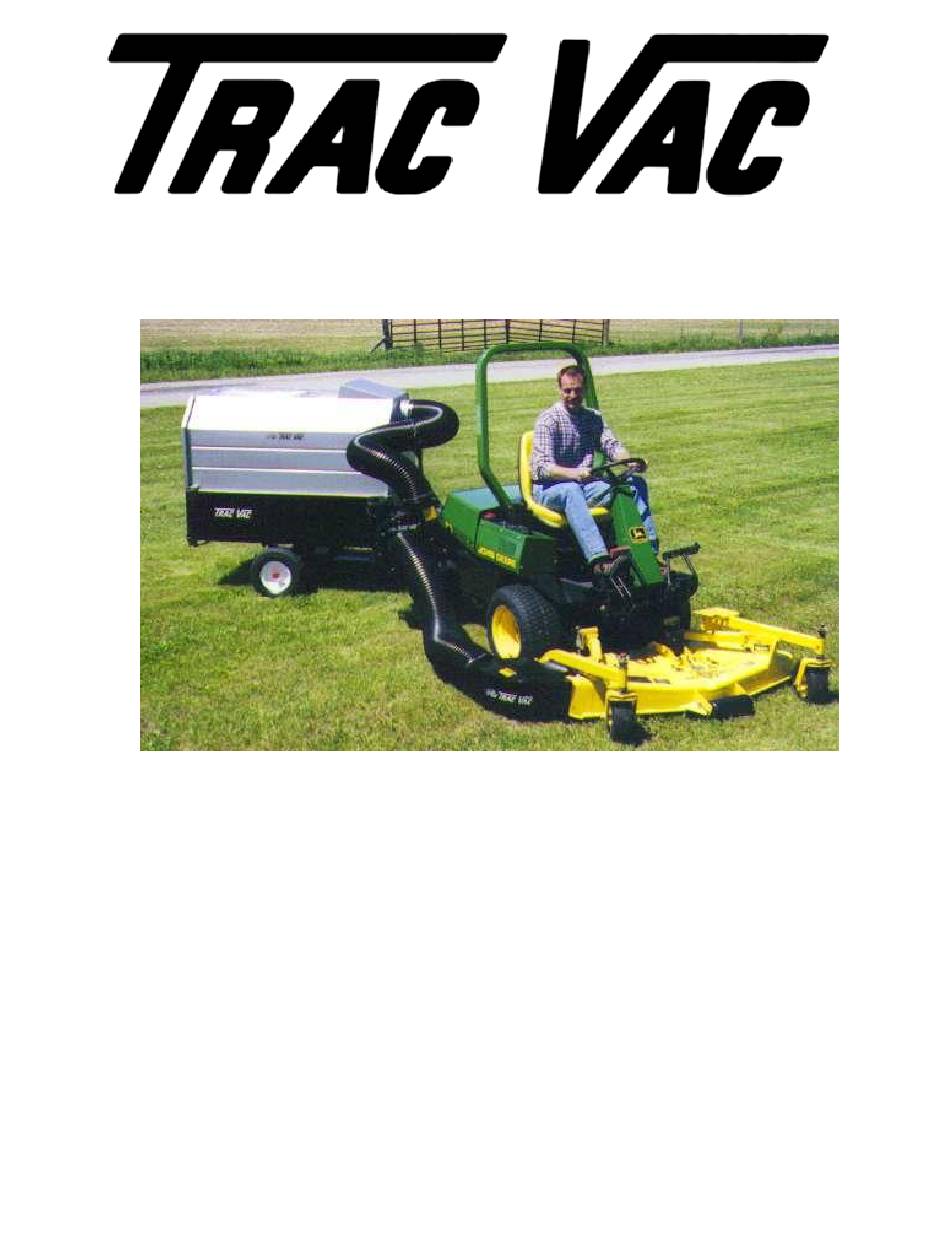

- Page 1 Model 865/865R Operating and Assembly Manual Midwest Equipment Manufacturing, Inc. 5225 Serum Plant Road Thorntown, IN 46071 08-02-16...
-
Page 2: Safety Rules
SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. This symbol means Attention!!!!! It is used to point out safety precautions. ▪... - Page 3 Model 865 Trac-Vac Parts List PART NO. DESCRIPTION Frame, RH 86510-1 Frame, LH 86509-1 Frame, Elec. 86511-1 Engine, 305CC Briggs 86022 Engine, 305CC Briggs Elec. 86026 Engine, 9HP Robin (Subaru) 86028 Turbine Housing 86030 Turbine Housing, LH 18030 86040 Turbine...
- Page 4 MODEL 865 TRAC VAC ASSEMBLY INSTRUCTIONS Attach hitch and drawbar to tractor. Refer to application guide for mounting instructions. Attach engine frame (1) by inserting tube on frame into receiving tube on hitch. Secure with 5/8” bent pull pin (16).
- Page 5 Model 280 Cart Cover Assembly Instructions NOTE: Do not tighten any bolts until the end of construction. Place front on sides with flanges on Place side panels on end with decal Place screen without latch, (front outward and about a foot apart at outside .
- Page 6 Model 348/368L Cart Covers Model 280/348L Cart Cover Model 280/368L Cart Cover Key Part No. Description Part No. Description 28047 Side Panel 28059 Side Panel 28030 Front Panel 28035 Front Panel Tailgate Tailgate 28236 28238 Deflector Deflector 28232 28235 Front Screen Front Screen 28242 28240...
-
Page 7: Before Each Use
MAINTENANCE DANGER: The Trac-Vac was built to be operated according to the rules for safe operation in this manual. Carelessness or error on the part of the operator can result in serious injury. This unit is capable of amputating fingers or hands and throwing objects. Failure to comply with the safety instructions could result in serious injury or death. - Page 8 PALMOR TAPERED DUMP CARTS NOTE: USE 580 INSTRUCTION SHEET WHEN ASSEMBLING FOR MODEL 580 APPLICATION Model 348-X Model 368-X 10 cubic foot 18 cubic foot Description Description Item Part No. Item Part No. Cart Body Cart Body 58120 88120 (only on 348) 58052 Axle Holder Brace --------...
-
Page 9: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Engine fails to start 1. Spark plug wire disconnected 1. Connect wire to spark plug 2. Fuel tank empty 2. Fill tank with clean fuel 3. Faulty spark plug 3. Clean, adjust gap or replace Loss of power or 1. - Page 10 5. When storing a unit with Rubbermaid containers, remove containers, remove clevis pin from top support, and rotate top around to completely open. TRAC VAC WARRANTY POLICY Midwest Equipment Manufacturing, Inc. will repair or replace, free of charge, any part, or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 day’s for commercial and rental use.
