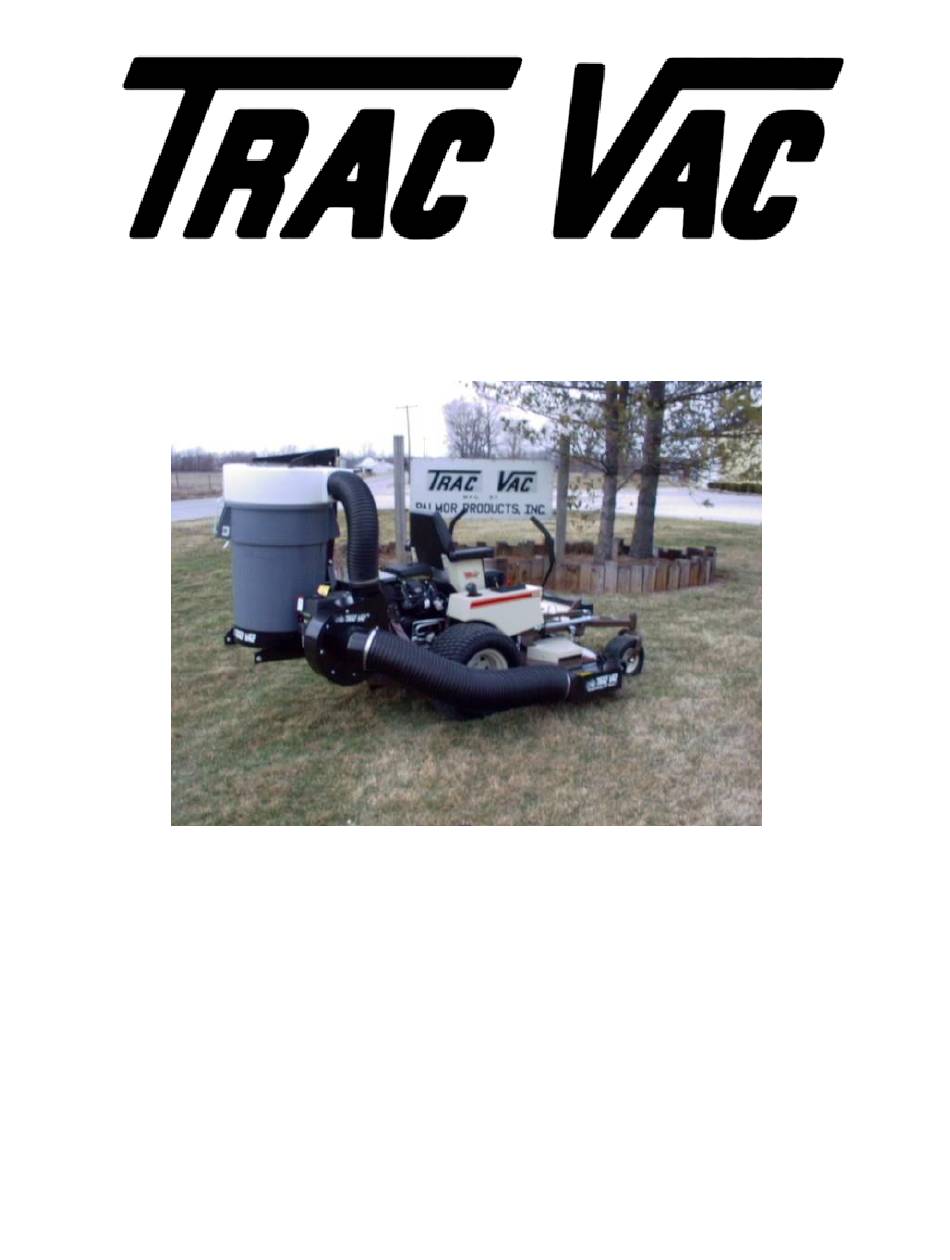

- Page 1 Model 462-ZIC/ZH/ZPRO Operating and Assembly Manual Midwest Equipment Mfg. 5225 Serum Plant Road Thorntown, IN 46071 12-14-16...
-
Page 2: Safety Rules
SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. This symbol means Attention!!!!! It is used to point out safety precautions. ▪... - Page 3 Model 462-Z/ZH/ZPRO/ZK Trac-Vac Parts List Part No. Description 56102 6" Band Clamp 46267 Heavy Frame, RH 46103 Hose, 6" x 36" 56021 *Engine, 5.5 HP Briggs 18119 8" Band Clamp 56022 *Engine, 5.5 HP Honda 86101 Hose, 8" x 60" 56018 *Engine, 6.5 HP Briggs Pro 46244 Engine Plate Extension 56014 *Engine, 6 HP Robin/Subaru...
- Page 4 Trac-Vac Model 462-ZIC/ZH/ZPRO/ZK Accessories: 6-04-12...
- Page 5 Fig. 1 Fig. 2 Fig. 3 Eyebolt (2x) 5/16" Freenut (2x) 5/16" Whizlock Nut (2x) Fig. 4 Fig. 5 Fig. 6 3/8" x 2 1/8" Clevis Pin 1/2" x 2 1/2" Hexbolt 1/4" x 1/2" Truss Head (2x) 1/4" Whizlock Nut (2x) Not Pictured 1/2"...
- Page 6 1/2" x 2 1/2" Hexbolt 1/2" Nylon Locknut 3/8" x 2 1/4" Clevis Pin 1/8" Cotter Pin Note: Bunch a few ribs of the hose up behind the hose clamp. This will make a good tight seal between hose and top. Fig.
- Page 7 4. Mount air turbine assembly onto frame (1) with four 5/16” x 1 1/4” hexbolts, 5/16” flatwashers and 5/16” locknuts. Trap the exhaust shield between the engine and the engine plate as shown. Note: some applications require rotating the engine assembly 90...
-
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Engine fails to start 1. Spark plug wire disconnected 1. Connect wire to spark plug 2. Fuel tank empty 2. Fill tank with clean fuel 3. Faulty spark plug 3. Clean, adjust gap or replace Loss of power or erratic operation 1. - Page 9 When storing a unit with Rubbermaid containers, leave containers latched to top. Store inside a clean dry area, when not in use. TRAC VAC WARRANTY POLICY Midwest Equipment Mfg. will repair or replace, free of charge, any part, or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 day’s for commercial and rental use.
