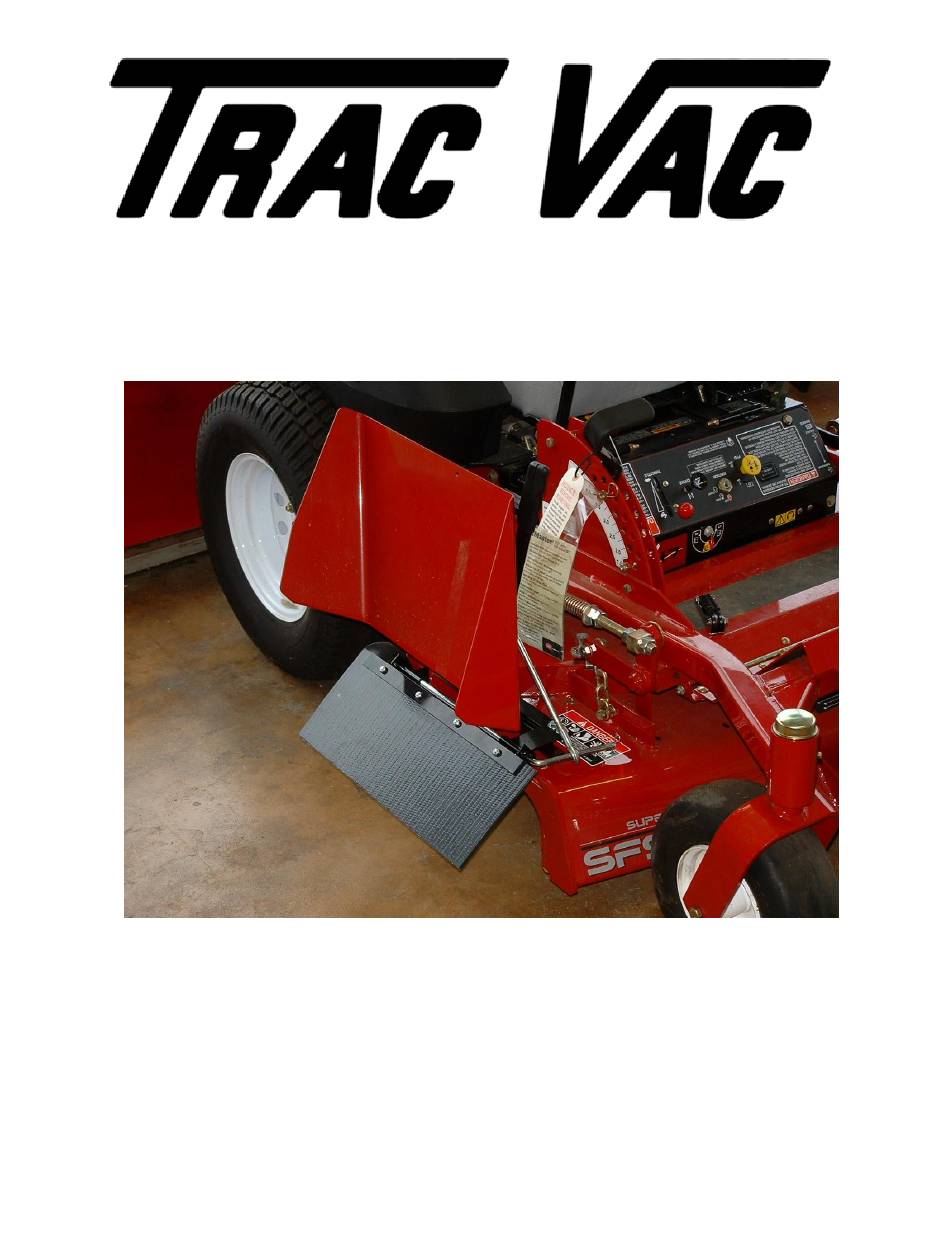

- Page 1 DS200 Discharge Shield Instruction Manual Midwest Equipment Mfg. 5225 Serum Plant Road Thorntown, IN 46071 5-16-11...
- Page 2 DS200 PARTS BEAK DOWN PART NO. DESCRIPTION DESCRIPTION DS11010 Pivot Ass'y Hairpin Cotter DS11021 Rubber Flap 5/16"-18 x 1 1/2" HHC DS11030 Flap Support 5/16" USS Flatwasher DS11040 Linkage 5/16"-18 Whizlock Nut DS11060 Pivot Pin 5/16"-18 Locknut DS11080 Control Handle 1/4"-20 X 1"...
- Page 3 Part No. DS200 Fig. A The Diverter Mounting Instructions STEP 1: Bolt the Diverter Shield and Support to the Pivot Assembly as shown in Fig. A. STEP 2: Bolt the angle mount flange to the control handle assembly as illustrated in Fig. B with hardware provided and tighten.
- Page 4 TRAC VAC WARRANTY POLICY Midwest Equipment Mfg. will repair or replace, free of charge, any part, or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 day’s for commercial and rental use.
