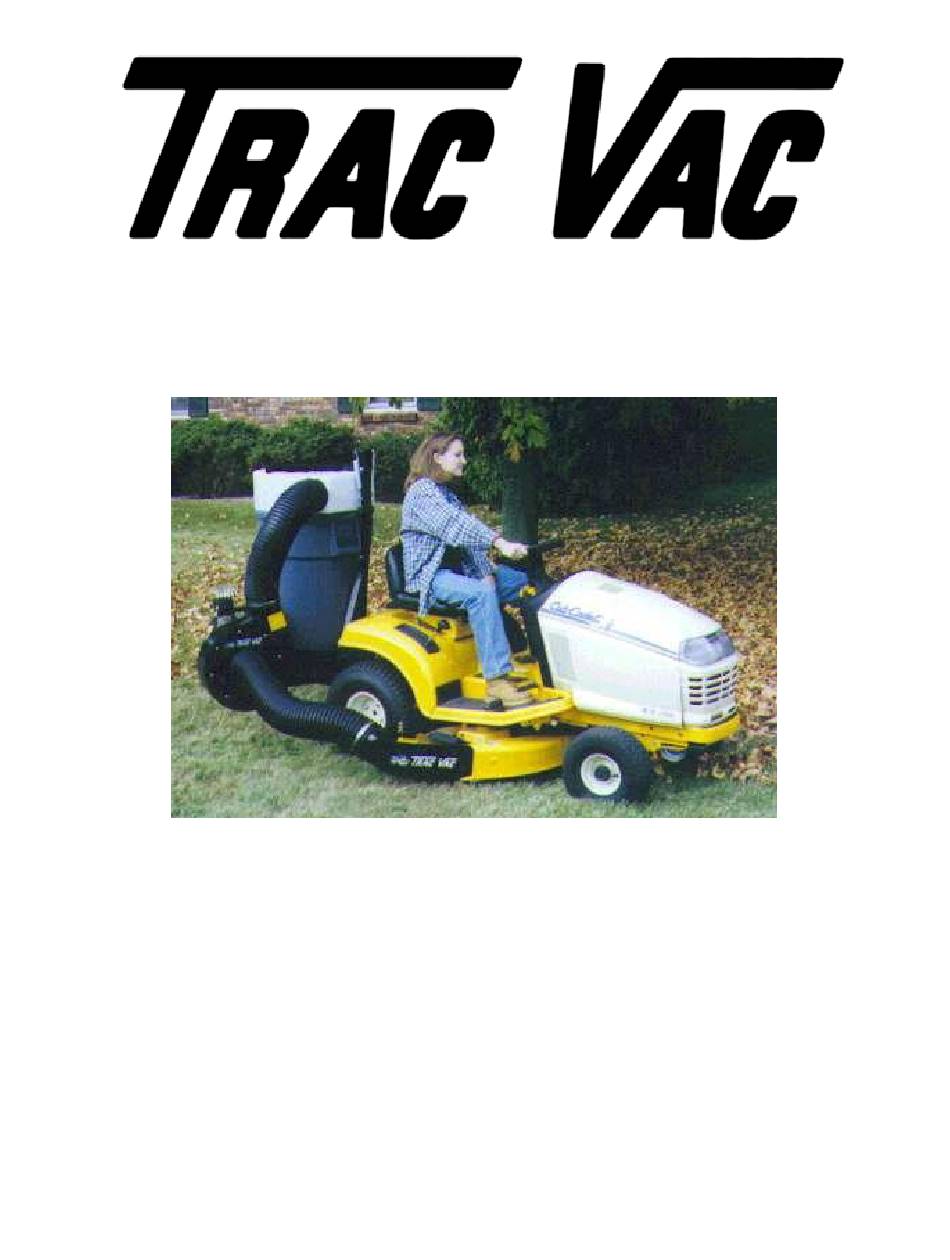

- Page 1 Model 462 IC/H/PRO/EL Operating and Assembly Manual Midwest Equipment Manufacturing, Inc. 5225 Serum Plant Road Thorntown, IN 46071 03-08-12...
-
Page 2: Safety Rules
SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. This symbol means Attention!!!!! It is used to point out safety precautions. ▪... - Page 3 Model 462-IC/H/PRO/K/EL Part No. Description Qty. 46250 Frame, RH 46251 Frame, LH 46252 Frame, Electric 56021 Engine, 5.5 HP Briggs Intek IC 56018 Engine, 6.5 HP Briggs Intek Pro 56022 Engine, 5.5 HP Honda 56017 Engine, 206CC Briggs Intek Elec. 56030 Turbine Housing (5.5 Briggs, Honda, El.) 46242...
- Page 4 Trac-Vac Model 462-IC/H/PRO/K/EL 6-02-12...
- Page 5 3/8" x 2 1/2" Hexbolt (2x) 5/8" x 1 1/2" Carriage Bolt 3/8" x 1" Hexbolt 5/8" Hexnut 5/8" Split Lockwasher 3/8" Whizlock (3x) Locktab Fig. 1 Fig. 2 Fig. 3 Eyebolt (2x) 5/16" Freenut (2x) 5/16" Whizlock Nut (2x) Fig.
- Page 6 3/8" x 2 1/4" Clevis Pin 1/8" Cotter Pin Note: Bunch a few ribs of the hose up behind the hose clamp. This will make a good tight seal between hose and top. Fig. 10 Fig. 11 Fig. 12 Cut hose to fit Fig.
- Page 7 Model 462-IC/H/PRO/K Assembly Instructions: 1. Mount hitch (26) to tractor. Each different tractor has its own specific hitch so the look and method of attachment may be slightly different than pictured, but the hitch should always be mounted with the lip upward. Many come with specific instructions in the box with the hitch.
- Page 8 11. Attach intake hose (25) to inlet on blower housing with 8” band clamp (24). (Fig. 12) 12. Attach chute to mower deck. The chutes are also deck specific so your chute may look and attach differently than what is pictured. Usually the chutes require mounting an adapter to the deck to accept the bracket on the chute or for the chute to pin into it.
-
Page 9: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Engine fails to start 1. Spark plug wire disconnected 1. Connect wire to spark plug 2. Fuel tank empty 2. Fill tank with clean fuel 3. Faulty spark plug 3. Clean, adjust gap or replace Loss of power or erratic operation 1. - Page 10 4. Clean tires and check pressure. Raising and supporting unit with weight off tires is recommended. 5. When storing a unit with Rubbermaid containers, leave containers latched to top. TRAC VAC WARRANTY POLICY Midwest Equipment Manufacturing, Inc. will repair or replace, free of charge, any part, or parts that are defective in material or workmanship or both for a period of one year residential use, and 90 day’s for commercial and rental use.
