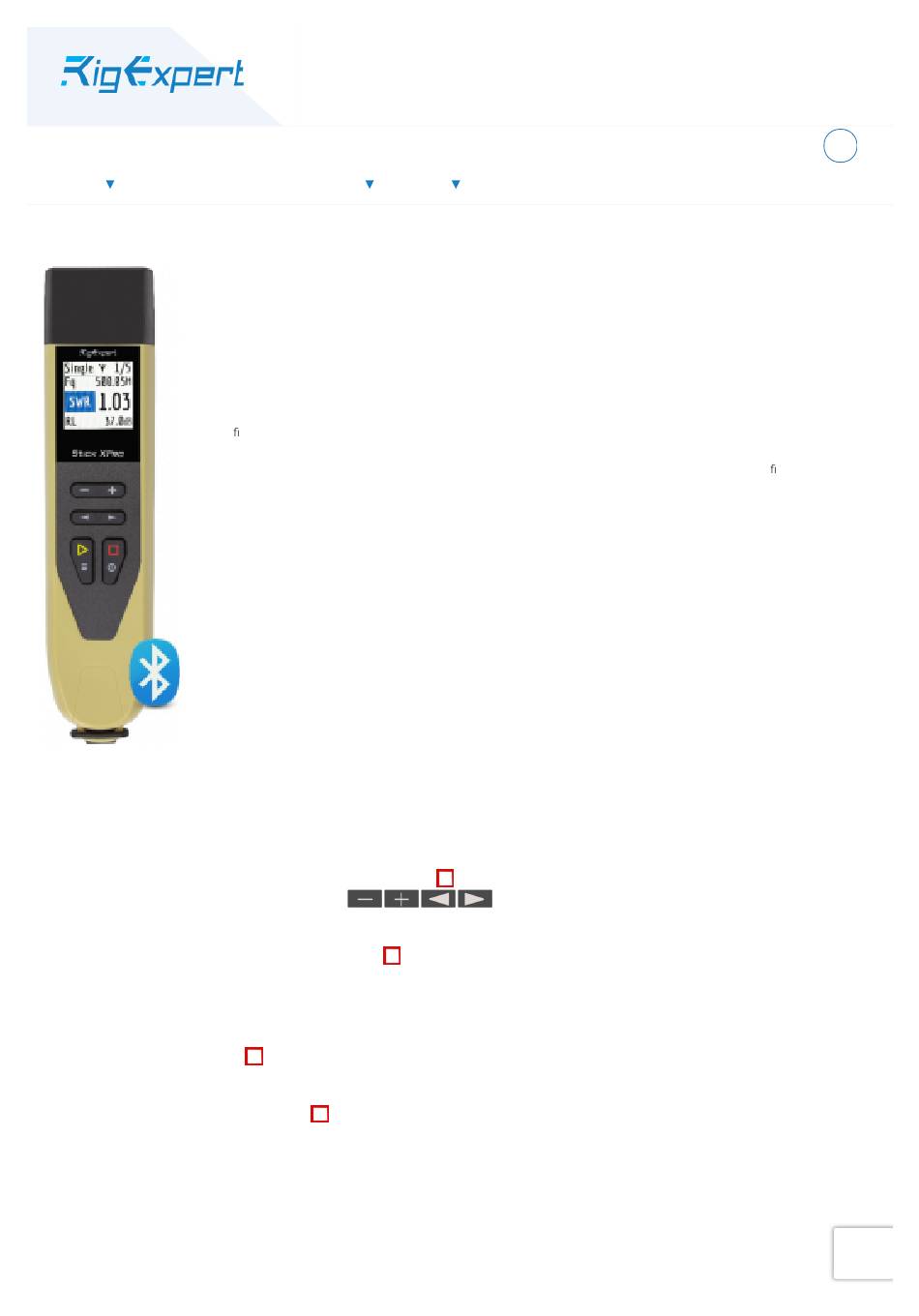

RigExpert Stick XPro.
Users Manual
The Stick XPro is a vector analyzer for antennas and cables. It enables users to measure different parameters of antennas, cables,
lines, lters, and more within the frequency range of 100 kHz to 1000 MHz.
The compact and lightweight design of the Stick XPro analyzer makes it ideal for use both at home and in the eld.
The main parameters of the Stick XPro analyzer:
Operating frequency: 100 kHz – 1000 MHz
Size: 185 * 40 * 33 mm (7,3 in x 1,6 in x 1,3 in)
Weight: 185 grams (6.5 Oz) (unpacked, with battery installed)
Type of antenna connector: N-type
Number of Enter Keys: 6
Display: color TFT, 220 * 220 pixels.
Type of battery used: Li-ion 18650 (included)
PC Connector Type: USB 2.0 Type-C
Charging Port Type: USB Type-C
Bluetooth Availability: Yes, Bluetooth ver. 4.2 BLE Single-mode, Class B
Battery Charge Time: 3 hours.
RF Power: -10 dBm (at 50 Ohm load)
Minimum frequency step: 1 kHz
Operating temperature: -20...40 °C (-4...104 °F)
key a screen with the main menu of the analyzer is available for the user.
key.
User's Manual | RigExpert™
HAM Radio Sponsorship
Company
Turning on the analyzer.
key. – when connecting the analyzer to a PC via a USB cable (the analyzer will
Important! At the same time, the analyzer will turn on and activate the
key.
Main menu.
