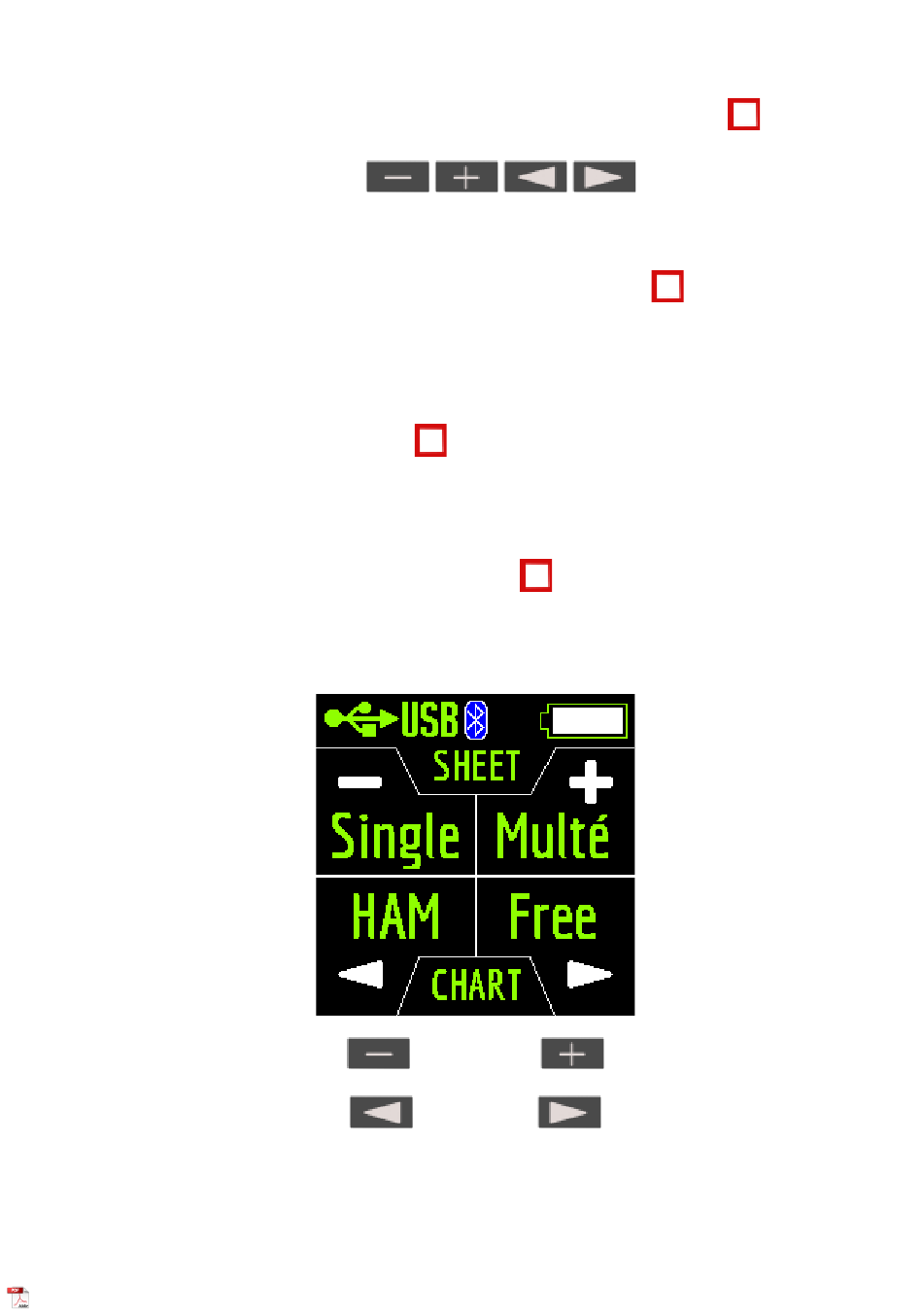

Turning on the analyzer.
The Stick Pro analyzer can be turned on in several ways: - by pressing the
key. - when
connecting the analyzer to a PC via a USB cable (the analyzer will turn on automatically). -
by long-pressing one of the keys :
Important! At the same
time, the analyzer will turn on and activate the measurement mode to which the pressed
key corresponds.
You can turn off the analyzer from any mode by long pressing the
key.

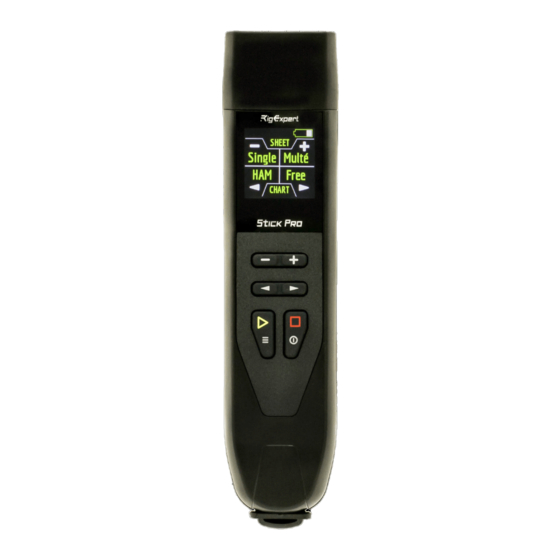

Main menu.
After turning on the analyzer, using the
key a screen with the main menu of the analyzer
is available for the user.
Important! Unlike the Stick Pro analyzer, the Stick Pro analyzer has three main screens with
menus.
Screen switching is carried out by short pressing of
key.
In addition to service information, at the top of the screen (battery charge, the indication of
connection to a PC, charger, Bluetooth connection), the screen displays 4 main measuring
functions of the analyzer:
Singe Multé
HAM Free
The Singe and Multé modes display the measurement result as numbers, while the HAM
and Free modes display the measurement results as numbers and charts.
Advertisement
Related Manuals for RigExpert Stick Pro
Summary of Contents for RigExpert Stick Pro
- Page 1 Turning on the analyzer. The Stick Pro analyzer can be turned on in several ways: - by pressing the key. - when connecting the analyzer to a PC via a USB cable (the analyzer will turn on automatically). - by long-pressing one of the keys :...
- Page 2 Bound TDR R&X RLoss The TDR, R&X and RLoss modes display the result in the form of charts and numbers, and the Bound mode in the form of numbers and color indication. StubT cLen cImp cLoss The cImp and cLoss modes display the result in the form of charts and numbers, and StubT and cLen mode in the form of numbers and color indication.
- Page 3 (Single, Multé, HAM, Free and others). By pressing the key, you can switch to the corresponding measurement mode. On the thirteenth screen when you press the key, you will enter the Settings menu. Single mode. Single is a measurement of all parameters. The mode is started by pressing the key.
- Page 4 Important! Sometimes inductance or capacitance values are displayed with a minus sign. It would seem to be contrary to the laws of physics. But no, in RigExpert analyzers, the minus sign next to the value indicates how much inductance or capacitance you need to add to the circuit in order to compensate for the reactive component of the impedance.
- Page 5 - SWR from 1.1 to 1.15 - SWR from 1.15 to 1.3 - SWR from 1.3 to 1.7 - SWR from 1.7 to 3.0 The SWR over 3 analyzer in Multé mode ignores. If, after scanning, the analyzer didn't find a single resonance, then this means that either your antenna has a minimum SWR of more than 3, or the antenna or coaxial cable is damaged.
- Page 6 A long press of the key will bring up the Help menu. HAM mode. This mode allows you to measure and display the SWR antenna chart on the analyzer screen on one of the fixed HAM radio bands such as: 2.2 km, 630 m, 160 m, 80 m, 60 m, 40 m, 30 m, 20 m, 17 m, 15 m, 12 m, 11 m, 10 m, 6 m, 2 m, 70 cm.
- Page 7 In HAM mode, the SWR icon and the range over which the measurement is carried out are displayed at the top of the screen. In the center of the screen, a chart of the SWR values for the range is displayed. The value of the minimum SWR found and the frequency at which this value was found are displayed at the bottom of the screen.
- Page 8 Free mode. This is a classic SWR measurement mode with plotting in a user-defined frequency band. This mode is useful for survey measurement of the antenna in a wide frequency range or for measuring the SWR in a very narrow predetermined area. In Free mode, the following is displayed on the analyzer screen: at the top of the screen: the value of the center frequency of the measurement and the •...
- Page 9 keys select the cursor position to change units, tens, hundreds, thousands of kilohertz, and the keys change the value. Setting the measurement bandwidth by pressing the keys. The minimum bandwidth is 10 kHz. A quick double press of the key will cause a measurement in a loop. To stop click key.
