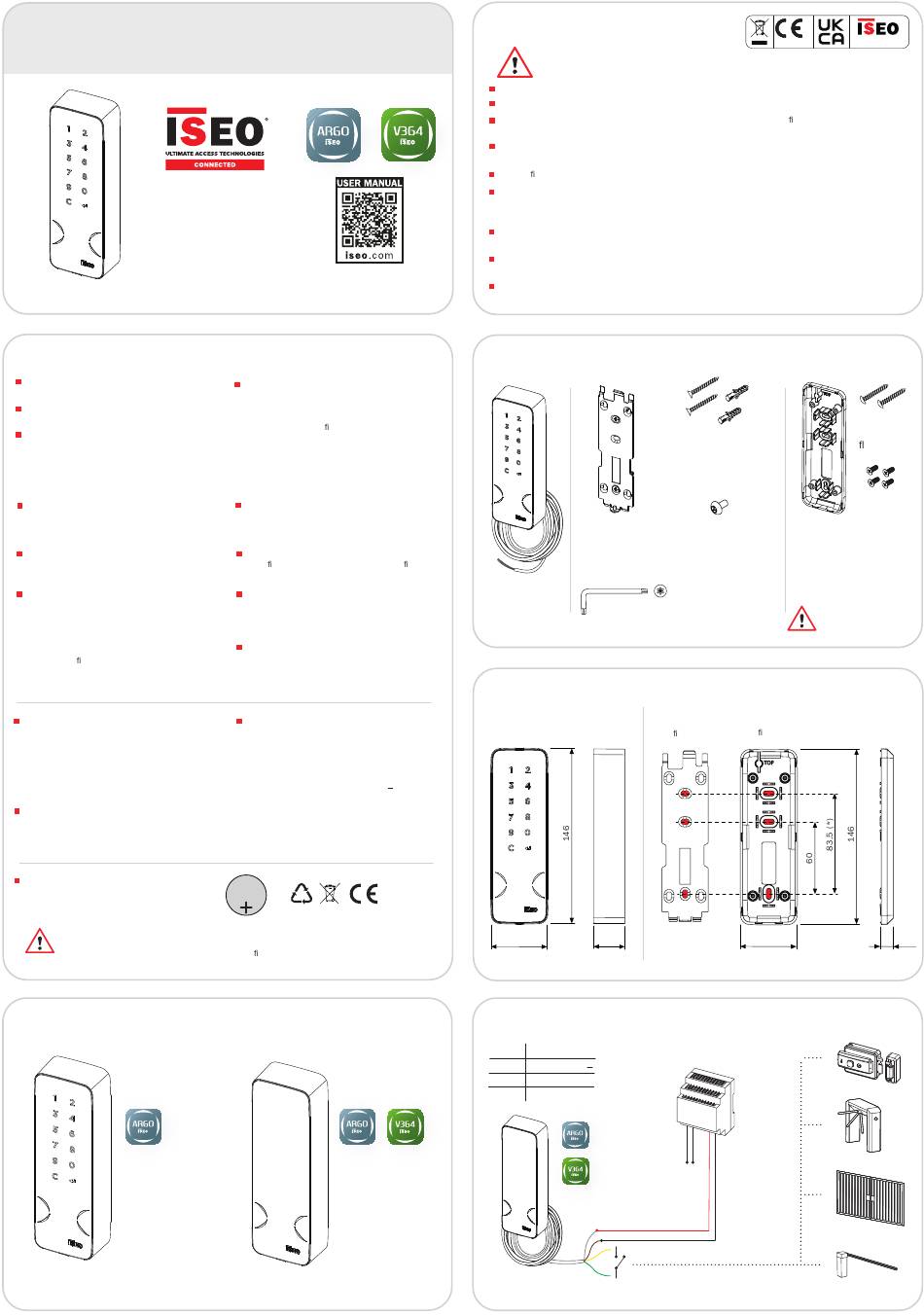

Iseo 1NCA Mullion Installation Manual

1NCA Mullion
INSTALLATION GUIDE (EN)
Iseo Serrature s.p.a
Via San Girolamo 13
25055 Pisogne (BS)
ITALY
Tel. +39 0364 8821
iseo@iseo.com
Non contractual document. Subject to change. Cod. KW21870 - 07/05/2023
1NCA Mullion Installation Guide (EN) - © 2023 Iseo Serrature S.p.a.
TECHNICAL DATA
PRODUCT:
1NCA MULLION
APPLICATION:
Credential reader to open any electrical device
MODELS:
- 1NCA Mullion Lockbus
- 1NCA Mullion Relay
- 1NCA Mullion Keyboard Lockbus
- 1NCA Mullion Keyboard Relay
SOFTWARE COMPATIBILITY:
- ARGO
- V364 (no Keyboard version)
- Luckey and LSA
POWER SUPPLY:
9÷24 Vdc - Max power consumption = 1W
KEY FEATURES:
- 12 keys capacitive keyboard (keyboard models)
- Tri-color LED (green, red, blu)
- Multifrequencies buzzer
- Automatic low power mode (max 0,4mW)
- 5mt data and power cable included (AWG22)
- Multi-holes xing bracket
(*) Tamper will be managed in future software application.
LOCKBUS:
- 3 wires multipoint serial bus for power and data
- Self-adjusting power supply from 9Vdc to 24Vdc
(recommended voltage 24 Vdc)
- Secure device authentication among readers
and actuators and encrypted data transmission
- Max cable length 100 mt
RELAY:
- Output power relay 30Vac/dc - 2A
- N.O. (normally open) contact available
- Estimated operation's cycles: 100.000
BATTERY:
Backup RTC (reat time clock) internal battery
- CR2032 3V Lithium coin battery
Risk of explosion if the battery is replaced with an incorrect type.
Dispose of batteries according to your local environmental laws and guidelines.
Battery replacement must be carried out by quali ed technical staff.
MODELS & VERSIONS
RFID + Keyboard
- Lockbus (*)
- Relay
1NCA Mullion
Keyboard
COMMUNICATION INTERFACES:
- Bluetooth 5.0 - Frequency 2,40 - 2,4835 GHz
Maximum power: < 10 mW
- RFID reader frequency 13,553 - 13,567 MHz,
maximum magnetic eld: < 40 µA/m (measured
at 10m at the maximum power capacity).
Compatible to:
• ISO/IEC 14443 Type A and Type B cards
• MIFARE Classic & DESFire (EV1, EV2, EV3)
• ISEO Cards & Keyfobs (min.20mm antenna diam.)
CERTIFICATIONS:
Compliance to RED, European and UK directives
concerning radio equipment regulations
IP Grade: IP66
HOUSING:
To be xed to the wall by the multi-holes xing
bracket
OPERATING TEMPERATURES:
- Working temperature: -20°C/+60°C
- Storage temperature: -20°C/+70°C
- H.R.: Max. 95% with no condensing
TAMPERING DETECTION (*):
- Tamper on the back of the housing
- Detects if the Mullion is removed from the wall
PIGTAIL CABLE:
- Polyetylene grey 5mt shielded cable AWG22
- 2 twisted pair conductors 2x2x0,34mmq - 250V
- Cable external diameter 7,6mm
- Wires colors and signals:
• WHITE = Power supply positive +
• BROWN = Power supply negative
• YELLOW = Lockbus / Relay N.O.
• GREEN = Relay COM
3V
Lithium
CR2032
(*) Compatible with Stylos
RFID
- Lockbus (*)
- Relay
1NCA Mullion
WARNINGS
Read this manual prior to use the device in order to ensure a safe and proper use.
Preserve this manual as future reference.
The installation and maintanance of the device must be carried out by quali ed technical staff, adequately
trained by ISEO.
The instructions should be carefully followed during installation. These instructions and any maintenance
instructions should be passed on by the installer to the user.
No modi cations of any kind are permitted, except for those described in these instructions.
The product must be destined only for the use for which it is expressly designed and therefore as a
credential reader for residential, commercial and light industry locations. Any other use is considered
improper and dangerous.
The electrical connection must be made according to the constructor's instructions and respecting the
regulations in force.
In the event of a failure and/or poor operation, remove the power supply using the main switch and do not
tamper with it. For all repairs, exclusively contact a technical assistance center authorized by the constructor.
Disconnect the power supply before carrying out any technical service that involves opening or accessing
the internal parts of the product.
PACKAGE CONTENTS
Fixing bracket
1NCA Mullion
Torx key T8
DIMENSIONS
Fixing Bracket
Wall xing holes
48 26
(*) Stylos compatible holes
MULLION RELAY: ELECTRICAL CONNECTION EXAMPLE
WHITE Power supply +
BROWN Power supply
YELLOW Relay N.O.
GREEN Relay COM
Mullion
Relay N.O
Relay
EC Declarations of conformity available at:
https://www.iseo.com/it/en/download
2 x Screws (3,5x25
countersunk head)
and wall plugs (5x25)
1 x Fixing bracket Torx
Spacer with screws
screw (M2,5x5)
Cod.0000IS00354
(Optional - to be
separately ordered*)
* Included in Mullion
Lockbus for Stylos
replacement
Spacer
Wall xing holes
48
Power
supply
Vout
12Vdc
Vin
230Vac
ULTIMATE ACCESS
T E C H N O L O G I E S
2 x Screws
(3,5x25
at-head)
4 x Screws
(3x8)
UM = mm
Spacer
thickness
10
