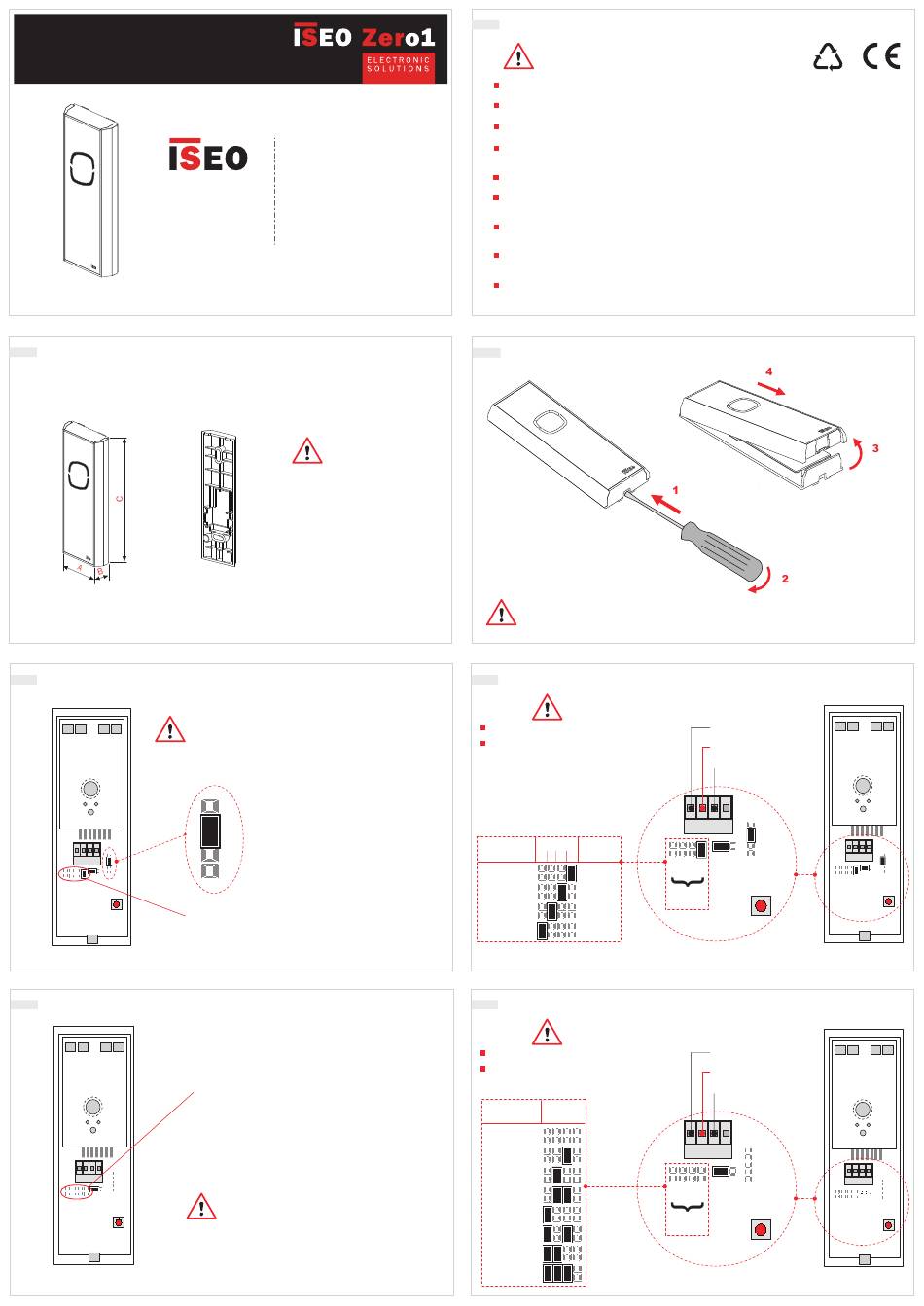

Stylos 2
INSTALLATION GUIDE (UK)
i s e o . c o m
Non contractual document. Subject to change. Cod. 60000STY2LV01.3 - 08/05/2018
Stylos 2 Credential Reader inst. guide (UK) - © 2017 Iseo Serrature S.p.a. - www.iseo.com
1. VERSIONS AND DIMENSIONS
Credential reader Spacer for wall
with led installation
A = 40mm
A = 47,5mm
B = 17,5mm B = 10mm
C = 125mm
C = 130mm
3. STAND-ALONE GATE SETTING
Only to set the Stylos 2 to be used as Stand-Alone
gate, you have to close, by a jumper, PIN 2 and 3 as
shown in the picture.
Back side view
Circuit board
J2. J2. J2. J2.
1 2 3 4
JPS
JP JP JP JP
6 4 2 0
S1
Stylos as Stand-Alone gate = Address 0 (Master)
4. READER/VALIDATOR SETTING
Back side view
Circuit board
Stylos as Reader/Validator = Address 1
J2. J2. J2. J2.
1 2 3 4
JPS
JP JP JP JP
6 4 2 0
S1
For more information about Stylos and Atlas, refer to
the Atlas Installation Manual available at:
http://gamma.iseozero1.com/en/controllo-accessi/
Iseo Serrature s.p.a
®
Via San Girolamo 13
25055 Pisogne (BS)
ITALY
Tel. +39 0364 8821
iseo@iseo.com
ELECTRONIC SUPPORT SERVICE
iseozero1.com
This guide includes instruction
to configure the Stylos as
Stand-Alone gate
Reader/Validator, connected
to Atlas. Refer to the proper
section.
1
2
Fit the jumper when
the Stylos is OFF.
3
4
5
WARNINGS
Read this manual prior to use the device in order to ensure a safe and proper use.
Preserve this manual as future reference.
The installation of the device requires the intervention of qualified staff, adequately trained by ISEO.
The instructions should be carefully followed during installation. These instructions and any maintenance
instructions should be passed on by the installer to the user.
No modifications of any kind are permitted, except for those described in these instructions.
The product must be destined only for the use for which it is expressly designed and therefore as a
credential reader for civil and industrial locations. Any other use is considered improper and dangerous.
The electrical connection must be made according to the constructor's instructions and respecting the
regulations in force.
In the event of a failure and/or poor operation, remove the power supply using the main switch and do not
tamper with it. For all repairs, exclusively contact a technical assistance center authorized by the constructor.
Before performing any cleaning operation on the product, uncouple the appliance from the electrical power
supply network, by opening the system switch.
2. DISASSEMBLING
or as
Disconnect the power before opening the device.
3.1 STAND-ALONE GATE ELECTRICAL CONNECTIONS
Power supply: 8 ÷30 VDC 0.5A
Minimum/maximum cross-section
of the cables is: 0.20÷1.5
(24÷15AWG).
LEGEND:
J2.1/2/3/4 = Power supply/Lockbus
JPS = System Jumper (reserved)
S1 = Programming button
JP 0/2/4/6 = Bus Address Jumpers
BUS JP JP JP JP
6 4 2 0
ADDRESS
ADDRESS 0 =
ADDRESS 2 =
ADDRESS 4 =
ADDRESS 6 =
4.1 READER/VALIDATOR ELECTRICAL CONNECTIONS
Power supply: 8 ÷30 VDC 0.5A
Minimum/maximum cross-section
of the cables is:
0.20÷1.5
(24÷15AWG).
BUS
JP 1
ADDRESS
ADDRESS 1 =
ADDRESS 2 =
ADDRESS 3 =
ADDRESS 4 =
ADDRESS 5 =
ADDRESS 6 =
ADDRESS 7 =
ADDRESS 8 =
LOCKBUS
MAX
(Communication Channel)
POSITIVE (+) Power Supply
mm²
NEGATIVE (-) GND
J2. J2. J2. J2.
1 2 3 4
FUNCTION
JPS
JP JP JP JP
(Master)
6 4 2 0
(slave)
BUS
ADDRESS
(slave)
(slave)
LOCKBUS
MAX
(Communication Channel)
POSITIVE (+) Power Supply
mm²
NEGATIVE (-) GND
J2. J2. J2. J2.
1 2 3 4
1.2.3
JP2
JP 1
BUS
ADDRESS
Back side view
Circuit board
J2. J2. J2. J2.
1 2 3 4
JPS
JP JP JP JP
6 4 2 0
S1
S1
Back side view
Circuit board
J2. J2. J2. J2.
1 2 3 4
1.2.3
JP 1 JP2
S1
S1
