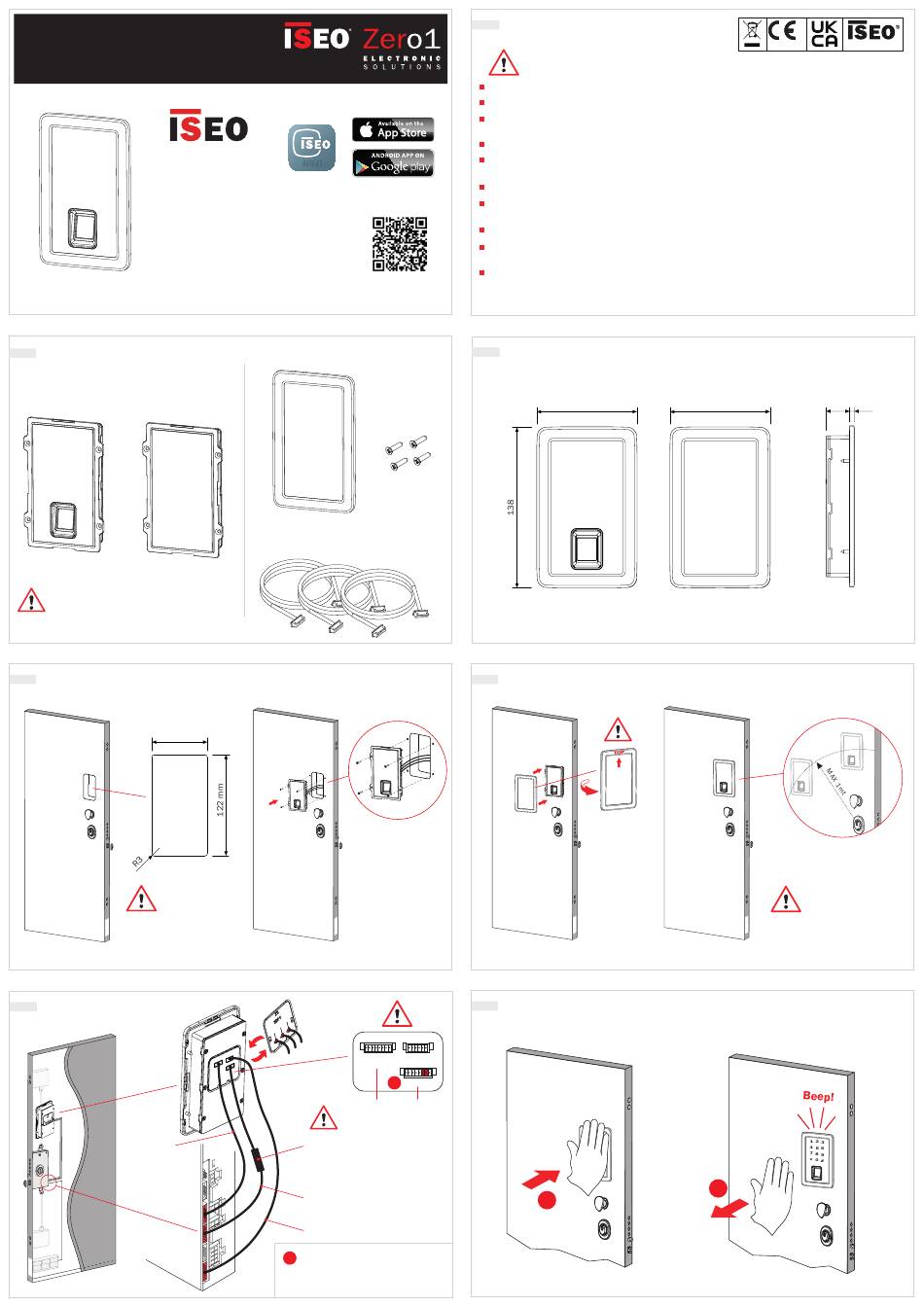

Iseo Zero1 x1R Smart Installation Manual

x1R Smart
Multi-Reader installation guide
i s e o . c o m
Iseo Serrature s.p.a
Via San Girolamo 13
25055 Pisogne (BS)
ITALY
Tel. +39 0364 8821
iseo@iseo.com
ELECTRONIC SUPPORT SERVICE
iseozero1.com
Non contractual document. Subject to change. Cod. 6000098102696.1 - 20210713
Multi-Reader Installation Guide (EN) - © 2021 Iseo Serrature S.p.a. - www.iseo.com
1. COMPONENTS
Multi-Reader
Multi-Reader
with fingerprint
The Multi-Reader can be supplied in two
different models: with fingerprint or without it.
For more information and codes refer to the
commercial literatures and the catalogue.
3. INSTALLATION EXAMPLE (Multi-Reader with fingerprint)
67 mm
Be careful to respect the hole
measures in order to leave
enough space on the sides to
1
fit the reader fixing screws.
4. ELECTRICAL CONNECTION
RFID &
Keyboard
Download
®
ARGO
Iseo Argo App
Download
User Manual
app.iseo.com
COVER
Fixing
screws
Connection wirings: 3 or 2 cables depending
on reader model (cables length 1mt)
2
Run the wires
through the holes
in the rubber cap
RFID & Bluetooth
Keyboard
1
Fingerprint
8 wires 6 wires
Electronic board: do not bend,
crush or twist. Install it with
care inside the door, without
any pressure, friction or folds.
Fingerprint
Reader
Bluetooth
The Fingerprint connector has the
1
same size of the RFID & Keyboard
connector but it is easily recognizable
since it has 2 wires less.
WARNINGS
Read this manual prior to use the device in order to ensure a safe and proper use. Preserve this manual as future reference.
The installation and maintanance of the device must be carried out by qualified technical staff, adequately trained by ISEO.
The instructions should be carefully followed during installation. These instructions and any maintenance
instructions should be passed on by the installer to the user.
No modifications of any kind are permitted, except for those described in these instructions.
The product must be destined only for the use for which it is expressly designed and therefore as a reader for
residential, commercial and light industry. Any other use is considered improper and dangerous.
The electrical connection must be made according to the constructor's instructions and respecting the regulations in force.
Disconnect the power supply before carrying out any technical service that involves opening or accessing the internal
parts of the product. For all repairs, exclusively contact a technical assistance center authorized by the constructor.
Operating and storage temperature: -20°C/+70°C with Relative Humidity Max. 95% without condensing. IP grade: IPx5.
RFID communication technology: 13.56 MHz. Works with Mifare Classic and Mifare DESFire. Minimum
keyfob coil diameter 20mm.
RFID: frequency 13,553 - 13,567 MHz, maximum magnetic field: < 40 µA/m (measured at 10m at the
maximum power capacity). Radio: frequency 2,40 - 2,4835 GHz, maximum power: < 10 mW.
2. MODELS AND DIMENSIONS
86
Multi-Reader
with fingerprint
3.1 INSTALLATION EXAMPLE (Multi-Reader with fingerprint)
3
5. MULTI-READER KEYBOARD WAKE-UP
1 Sec.
1
EC Declarations of conformity available at:
https://www.iseo.com/it/en/download
UM = mm
20 4
86
Multi-Reader
The installation of the Multi-Reader
without fingerprint is the same
since the two models have the same
4
measures and installation way.
2
