ADTRAN NetVanta 1200864L1 Quick Start Manual

®
NetVanta Analog Modem Dial Backup Interface Module (DIM)
Quick Start Guide
S
PECIFICATIONS
Features Supported Standards: ITU-T V.90
Async
Compliance FCC Part 15 Class A, EN 55022 Class A, EN 55024,
EN 61000-3-2, EN 61000-3-3
ACTA/FCC Part 68, IC CS-03
UL/CUL 60950
Physical Dimensions: 2.5-inch W x 3.75-inch D
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent, noncondensing
NetVanta modules should be installed only in
NetVanta Series products.
Quick Start Guide, 61200864L1-13E, July 2006
For more detailed documentation, visit us online at www.adtran.com.
I
NSTALLATION
1.
2.
3.
4.
5.
6.
7.
8.
A
NALOG
Pin
1-3
4
5
6-8
Technical Support 1-888-4ADTRAN (1-888-423-8726)
I
NSTRUCTIONS
Remove power from the base unit.
If the Network Interface Module (NIM) is already in the NetVanta
chassis, release the pins at both edges of the NIM faceplate and
slide the module out of the chassis.

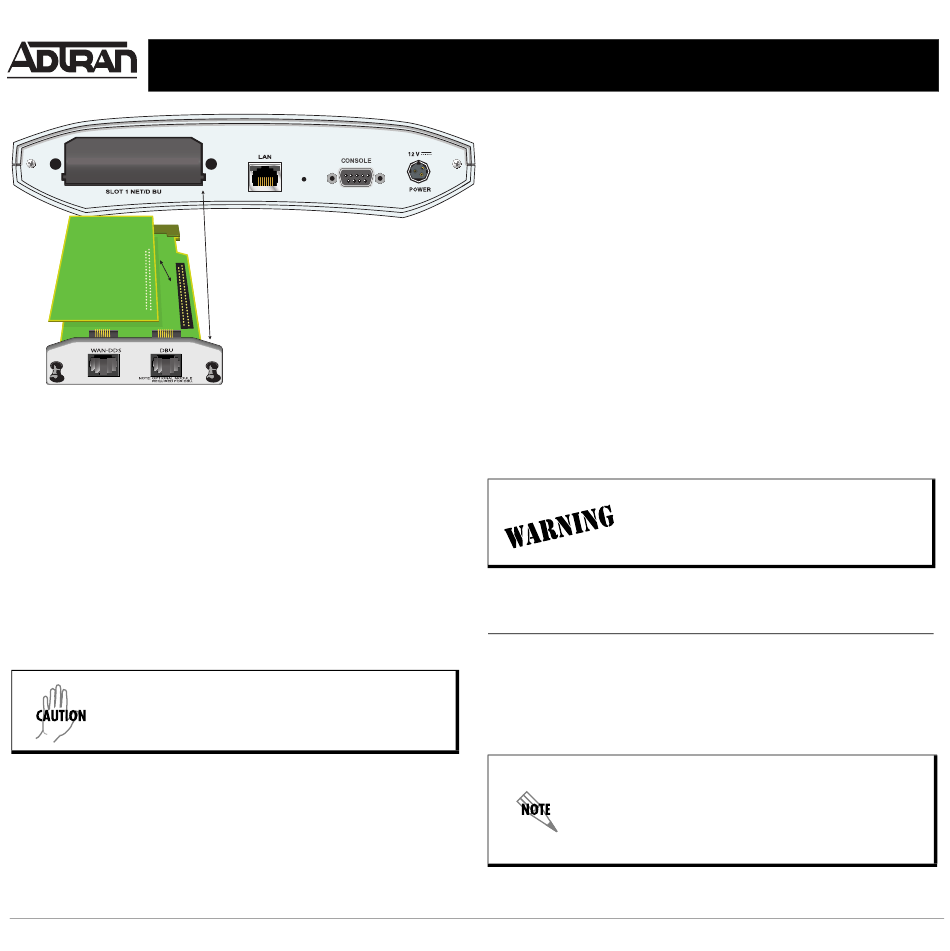

Carefully align the P1 connector on the NIM with the J1 connector
on the analog modem DIM. Using only fingertip pressure so that
neither circuit board bends or flexes, ensure that the connectors
are firmly seated. Secure the analog modem DIM to the NIM
using the screws and standoff posts supplied.
Slide the NIM with the analog modem DIM attached into the
NetVanta option slot until the NIM is firmly seated against the
chassis.
Secure the pins at both edges of the NIM.
Connect the cables to the associated device(s).
Complete installation of the base unit.
Restore power to the base unit.
For NetVanta modules with outside plant
connections, ensure that all cables are
removed from the module before installing
or removing it from the NetVanta chassis.
M DBU C
ODEM ONNECTION
Name Description
— Unused
R Network-Ring
T Network-Tip
— Unused
Important: For additional details on product
features, specifications, installation, and safety,
refer to the appropriate Hardware Installation
Guide on the ADTRAN OS System Documentation
CD shipped with the base unit and available online
at www.adtran.com.
Copyright © 2006 ADTRAN, All Rights Reserved
P/N 1200864L1
P
INOUTS
