ADTRAN Total Access 238 Quick Start Manual

Total Access 238
Octal SHDSL
Bridge
P/N: 1200630L1
CLEI: VAMF400A_ _
DESCRIPTION
The Total Access ® 238 (P/N 1200630L1) is DC-powered, network terminating unit that uses enhanced
Symmetric High-Bitrate Digital Subscriber Line (eSHDSL) technology to transport up to 5.696 Mbps
of data per loop on up to eight copper loops. An AC version (P/N 1200630L2) is also available.
The Total Access 238 interfaces between the incoming IMA-bonded ITU G.991.2 (SHDSL) service
and the customer 10/100Base-T network, for LAN-to-LAN bridging. It can be deployed in pairs (back-
to-back) for a local campus application, or to a DSLAM Line Terminating Unit (LTU) located in a
Central Office (CO) for traditional data service applications. The Total Access 238 can be locally or
remotely provisioned. Local provisioning is accomplished through the V.28 craft interface (DB-9)
using a dumb terminal or PC with terminal emulation software. Remote provisioning is accomplished
using the Embedded Operations Channel (EOC) or the Command Line Interface (CLI), and can initiate
and respond to local and remote loopbacks on the network interfaces.
INSTALLATION
After unpacking the unit, inspect it for damage. If damage is noted, file a claim with the carrier and
then contact ADTRAN. For more information, refer to the warranty.
Mounting Options
The Total Access 238 is a 1U high, rack mountable unit which can be installed in either a 19-inch or
23-inch equipment rack, or in a wallmount configuration. Mounting Brackets and screws are provided
with the unit. For complete mounting instructions, refer to the Installation and Maintenance Practice.
Cables Required
♦
Ethernet cable
♦
SHDSL connection (through the 50-pin amphenol)
Connections
The Total Access 238 is a locally powered standalone unit. It provides a single DC power connector,
eight ITU G.991.2 (SHDSL) single-pair interfaces through a 50-pin amphenol connector, two IEEE
802.3 (10/100Base-T) interfaces through RJ-45 connectors, and one V.28 control port through a DB-9
connector.
Powering
Power to the Total Access 238 must be derived from a grounded –48 VDC nominal (–42 VDC to
–54 VDC) power source. Power connection is made on the two-conductor terminal on the rear panel.
The terminal is removable for easy access to the screws.
Grounding
CAUTION: The grounding conductor must be of equal or greater size than the ungrounded branch-
circuit supply conductor.
*61200630L1-22B*
For more information, refer to the Installation and Maintenance Practice (P/N 61200630L1-5) available online at www.adtran.com.
8-Port SHDSL (Annex A) Ethernet Bridge, DC-Powered
Total Access 238

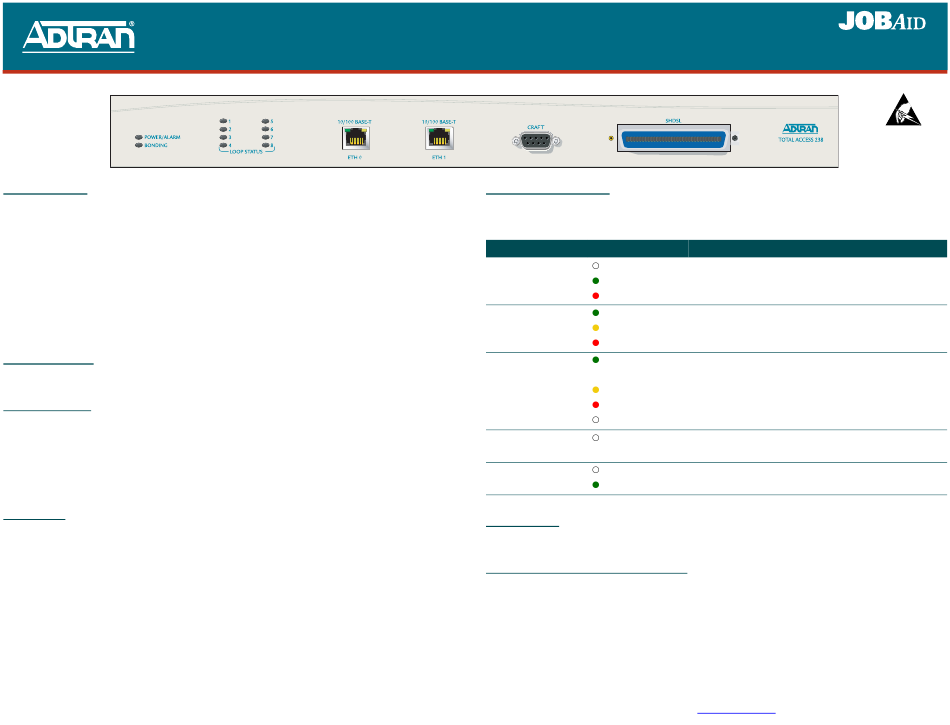

FRONT PANEL LEDS
Front panel mounted LEDs provide status information for each SHDSL loop, IMA operation, and
alarms. Ethernet activity LEDs, located on the Ethernet RJ-45 connectors, provide link status and
traffic indications.
Label Status
POWER/ALARM
BONDING
LOOP STATUS
2
ETHERNET ACTIVITY
2
ETHERNET LINK
OPERATION
The Total Access 238 management and provisioning features are accessible through a Command Line
Interface (CLI) using the DB-9 interface, labeled
Connecting Through the CRAFT Interface
Connect to the craft interface using a VT100 dumb terminal or PC with VT100 emulation software
configured with the following parameters:
♦
9600 baud rate
♦
8 data bits
Once connected, press
E
NTER
( ) and default password (
admin
Description
Off Main power off
Green No active alarm present on the system
Red Active alarm present on the system
Green IMA active and operating normally
Yellow IMA interface in test
Red IMA interface not active
Green Loop trained
Green Flashing Loop training
Yellow Loop in test
Red Loop not trained
Off Loop not part of IMA group
Off No data traffic being sent/received on the Ethernet interface
Yellow Data traffic is being sent or received on the Ethernet interface
Off No active 10/100Base-T link
Green Active 10/100Base-T link is present
, on the front panel of the unit.
CRAFT
♦ ♦
no parity no flow control
♦
1 stop bit
to access the CLI. At the login prompt, type in the default username
). A successful login displays the TA238# prompt.
password
61200630L1-22B
0612
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
©2006 ADTRAN, Inc.
All Rights Reserved.
