Switching Regulator Series
Integrated MOSFET Single Synchronous
Buck DC/DC Converter
BD9E201FP4-Z Evaluation Board
BD9E201FP4-EVK-001 (4.5V to 28V Input, 2A)
Introduction
This user's guide will provide the necessary steps to operate the Evaluation Board of ROHM's BD9E201FP4-Z Single
Synchronous Buck DC/DC converter. This includes the external parts and operating procedures. For the reference application
data please refer to the datasheet.
Description
This Evaluation Board was developed for ROHM's single Synchronous buck DC/DC converter BD9E201FP4-Z.
BD9E201FP4-Z is a synchronous buck DC/DC converter with built-in low On Resistance power MOSFETs.
Z accepts a power supply input range of 4.5 V to 28 V and generates a maximum output current of 2 A. BD9E201FP4-Z
includes internal phase compensation. It achieves the high power density and offers a small footprint on the PCB by employing
small package.
Application
Home Appliance Products
Secondary Power Supply and Adapter Equipment
Telecommunication Devices
Recommended Operating Conditions
Parameter
Input Voltage
Output Voltage
Output Current Range
Switching Frequency
Maximum Efficiency
(Note 1) Tj must be 150 °C or less under the actual operating environment. Lifetime is derated at junction temperature greater
than 125 °C.
(Note 2) Please use within the range of VOUT ≥ VIN × 0.1 V.
© 2023 ROHM Co., Ltd.
Table 1. Recommended Operating Conditions
Min
Typ
4.5
-
0.7
-
0
-
-
350
-
95.5
User's Guide
Max
Units
28
V
V
x 0.8
V
(Note 2)
IN
2.0
A
-
kHz
VIN = 12.0 V, Vo = 5.0 V, Io =
-
%
0.7 A, Ta = 25 °C
The BD9E201FP4-
Conditions
66UG035E Rev.001
Jul.2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rohm BD9E201FP4-Z
Summary of Contents for Rohm BD9E201FP4-Z
- Page 1 The BD9E201FP4- Z accepts a power supply input range of 4.5 V to 28 V and generates a maximum output current of 2 A. BD9E201FP4-Z includes internal phase compensation. It achieves the high power density and offers a small footprint on the PCB by employing small package.
-
Page 2: Evaluation Board Schematic
(Note 1) Enable pin’s initial setting is open. The IC’s power is controlled only by VIN, because EN is internally pulled-up to the internal regulator voltage by a 1 MΩ (Typ) resistor. © 2023 ROHM Co., Ltd. 66UG035E Rev.001 Jul.2023... -
Page 3: Pin Configuration
0.82 kΩ (1 %, 1/16 W) MCR01MZPF8200 ROHM Chip Resistor 1005 110 kΩ (1 %, 1/16 W) MCR01MZPF1103 ROHM Chip Resistor 1005 15 kΩ (1 %, 1/16 W) MCR01MZPF1502 ROHM Chip Resistor R0 (Note5) Short © 2023 ROHM Co., Ltd. 66UG035E Rev.001 Jul.2023... - Page 4 (Note 6) If the recommended parts on tables 2, 3 and 4 are not available anymore due to end of production, different parts will be used on the test board because the end of production parts are deprecated. © 2023 ROHM Co., Ltd. 66UG035E Rev.001...
-
Page 5: Board Layout

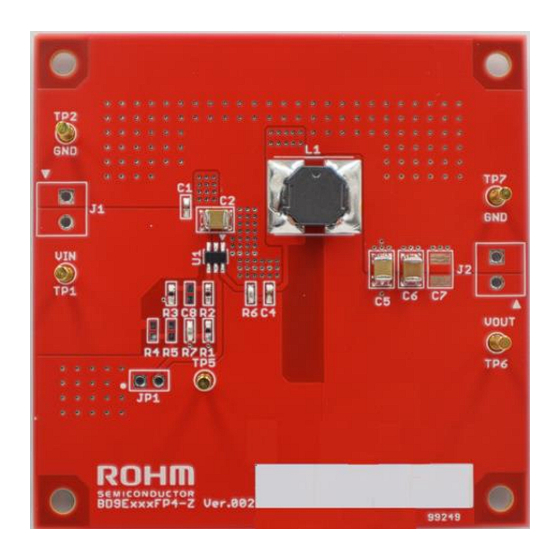

114.3mm x 76.2mm x 2oz(70μm) / 1oz (35μm) / 1oz (35μm) / 2oz(70μm) FR-4 1.6mm The layout of BD9E201FP4-Z is shown below: Figure 4. Top PCB Image Figure 5. Bottom PCB Image Figure 6. Top Layer Layout Figure 7. Middle1 Layer Layout ©... - Page 6 BD9E201FP4-Z User’s Guide Figure 8. Middle2 Layer Layout Figure 9. Bottom Layer Layout © 2023 ROHM Co., Ltd. 66UG035E Rev.001 Jul.2023...
-
Page 7: Revision History
BD9E201FP4-Z User’s Guide Revision History Revision Date Description Number 6. Jul. 2023 New release © 2023 ROHM Co., Ltd. 66UG035E Rev.001 Jul.2023... - Page 8 Specific Applications). Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses, or losses incurred by you or third parties arising from the use of ROHM Products for Specific Applications.
