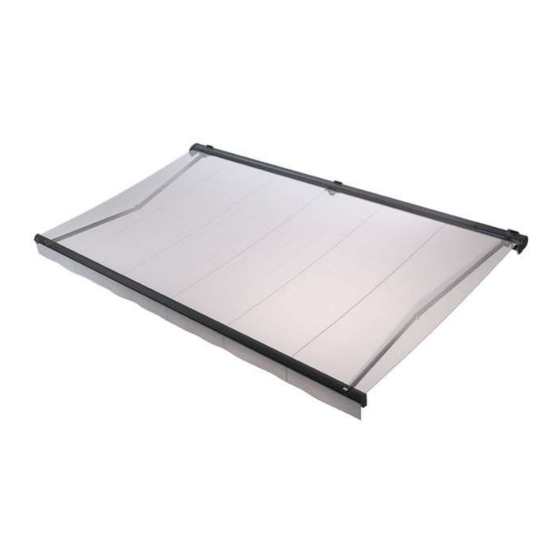

- Page 1 11.7 DT-E TECHNICAL AND OPERATIONAL DOCUMENTATION INSTALLATION MANUAL, OPERATING MANUAL AND INSTRUCTIONS FOR SAFE USE (Translated from the original manual) Awnings 11.7 Terrace awning DAKAR...
- Page 2 THIS TECHNICAL AND OPERATIONAL DOCUMENTATION: Is valid from: 28 March 2022 Is applicable to the above listed product versions. DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 2 / 28...
-
Page 3: Table Of Contents
MARKING AND LABELLING OF THE PRODUCT WITH CE MARK ..................27 10.1 PRODUCT COMPLIANCE WITH THE CE STANDARD ..................27 10.2 INFORMATION ACCOMPANYING THE CE MARKING ..................27 DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 3 / 28... -
Page 4: Introduction
Threat to human life or health due to electric shock. Marking of electronic or electric equipment, which should be collected in the ENVIRONMENT designated points. DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 4 / 28... -
Page 5: Terms And Definitions
SELT SP. Z O.O. shall not bear responsibility for damage resulting from failure to follow recommendations included in the documentation. In order to further improve the product, SELT SP. Z O.O. reserves the right to introduce changes which, while maintaining the essential technical parameters, shall be deemed purposeful for improving product operation quality and safety of use. -
Page 6: Product Technical Information
The optional use of weather automation additionally protects the product against changing weather conditions. PRODUCT SPECIFICATION Products manufactured by SELT Sp. z o. o. have appropriate technical and operational parameters. They have the following features: They provide excellent sun protection for surfaces such as terraces and balconies. -
Page 7: Dakar Awning Construction
DAKAR AWNING CONSTRUCTION TYPES OF BRACKETS Wall bracket Ceiling bracket Rafter bracket DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 7 / 28... -
Page 8: Transport And Storage Of The Product
COMPLETENESS AND QUALITY CONDITION OF DELIVERY SELT Sp. z o. o. makes every effort to ensure that the goods comply with the order. However, checking the completeness of the product is the responsibility of the Buyer and should take place at the time of its receipt. -
Page 9: Product Installation
This chapter contains general requirements concerning the product installation. Correct assembly is a necessary condition for smooth operation of the product. SELT Sp. o.o. recommends using only professional assembly crews, which guarantee the Purchaser that the conducted installation will be correct. -
Page 10: Preparation For Installation
4.5.1 DAKAR AWNING INSTALLATION – WALL BRACKETS SELT recommends the use of Fischer fixing products - selected depending on the type of substrate. Suggested recommendations for selected substrates: For non-cracked concreto class C20/25 and not higher than C50/60: DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR... - Page 11 (so that they are "in the axis" of the symmetry of the arm brackets). DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 11 / 28...
- Page 12 11) Secure the structural profile of the cassette with screws. DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 12 / 28...
- Page 13 16) Using a wrench, losen (decrease the angle of inclination) or tighten (increase the angle of inclination) the adjusting screw with the hex head. Tighten the inner screw. DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 13 / 28...
-
Page 14: Dakar Awning Installation - Ceiling Brackets
The instructions are attached to the product and are also available on the websites of motor manufacturers and on the website: www.selt.com → OUR OFFER → MOTOR, ELECTRIC, EQUIPMENT DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 14 / 28... -
Page 15: Remote Operation
adjustment of limit switches must be done in accordance with motor’s maintenance manual, DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 15 / 28... -
Page 16: Manual Drive
Do not allow the fabric to be rolled in the opposite direction (from the bottom of roller tube), since it may cause its ripping off the roller tube, fabric damage or incorrect awning functioning.. correct incorrect DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 16 / 28... -
Page 17: System Operation And Product Safety
- otherwise it will lead to permanent damage It is recommended that the change of equipment configuration be consulted with SELT. SAFETY REQUIREMENTS RELATED TO SPECIAL CONDITIONS AND PLACES OF PRODUCT USE Specific safety requirements relate to children up to 42 months. Essential requirements for use are applicable in all locations, to which children have access or where they could be present. - Page 18 Automatically controlled products may start up on their own. Make sure that no dangerous situation arises. SELT Sp. z o. o. is not responsible for damage caused by improper use. Operating the system out of sight can cause serious injury as well as damage to the system...
-
Page 19: Control Of Safe Use Of The Product
The above-mentioned checks may be carried out by specialized assembly groups with appropriate qualifications. DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 19 / 28... -
Page 20: System Use And Maintenance
Checking Possible adjustment and improvement of fastening of the mentioned components Products manufactured by SELT Sp. z o. o. do not require any special maintenance. Using the product in accordance with the manufacturer's instructions ensures long-term and trouble-free operation for the system user. Ongoing maintenance work should be carried out on a fully developed system. -
Page 21: Use Of Awning Fabrics
Due to the use of an impregnating agent, the fabric is sensitive to all kinds of scratches that are difficult to avoid even with a very precise and careful production process. This effect applies primarily to monochromatic materials. DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 21 / 28... - Page 22 Accumulation of water on its surface may lead to overloading of fastenings and to slight deformations and waviness of the fabric surface. If the damp fabric is rolled up, unroll it immediately after the rain stops and let it dry. DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL...
-
Page 23: General Warranty Terms
GENERAL WARRANTY TERMS General warranty terms are available on www.selt.com If the SELT Sp. z o.o. website is inaccessible then warranty terms and conditions can be obtained from the sales representative of SELT Sp. z o.o. WARRANTY EXCLUSIONS The warranty will not cover: ... - Page 24 Selection of electric motors: DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 24 / 28...
-
Page 25: Complaint / Technical Defects
The application should contain a detailed description of the defect, the name of the company that installed the product and the date of finding the defect. Photo or video documentation in the event of the inability to deliver the claimed goods to SELT. ... -
Page 26: Product Disassembly / Utilisation / Disposal
2006 on batteries and accumulators and waste (Dz. U. [Journal of Laws] 2009, no 79, item 666) batteries and accumulators and repealing Directive 91/157/EEC DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 26 / 28... -
Page 27: Marking And Labelling Of The Product With Ce Mark
10.1 PRODUCT COMPLIANCE WITH THE CE STANDARD Products manufactured by SELT company meet the essential requirements of the standard introduced by the Polish Committee for Standardization as PN-EN 13561 what is confirmed by the manufacturer’s declaration of performance and marking the product with the CE mark. - Page 28 Opole, ul. Wschodnia 23A POLAND Awning with folding arms DAKAR 230V/ 50 Hz Power 198 do 275 W 01 / DZ/2017 DT-E 11.7 SUN PROTECTION SYSTEM – TERRRACE AWNING DAKAR Edition 7/ March 2022 / PL strona 28 / 28...
