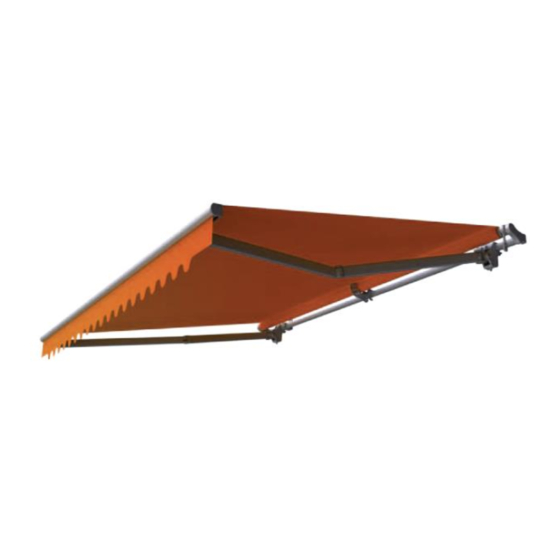

- Page 1 11.5 TECHNICAL AND OPERATIONAL DOCUMENTATION INSTALLATION MANUAL, OPERATING MANUAL AND INSTRUCTIONS FOR SAFE USE Awnings 11.3 Terrace awning AUSTRALIA 11.3.1 Installation manual Documentation no. 11.3.1 – EN...
- Page 2 The product meets the CE safety requirements. THIS TECHNICAL AND OPERATIONAL DOCUMENTATION: Is valid from: 28 March 2022 Is applicable to the above listed product versions. DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 2 / 28...
-
Page 3: Table Of Contents
MARKING AND LABELLING OF THE PRODUCT WITH CE MARK 10.1 PRODUCT COMPLIANCE WITH THE CE STANDARD ..................27 10.2 INFORMATION ACCOMPANYING THE CE MARKING ..................27 DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 3 / 28... -
Page 4: Introduction
Threat to human life or health due to electric shock. Marking of electronic or electric equipment, which should be collected in the ENVIRONMENT designated points. DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 4 / 28... -
Page 5: Terms And Definitions
SELT SP. Z O.O. with a head office in Opole shall hold the copyrights to this documentation. The documentation cannot be used without permission, either partially or as a whole, for any concurrent business activity nor can it be made available to third parties. -
Page 6: Product Technical Information
The optional use of weather automation additionally protects the product against changing weather conditions. PRODUCT SPECIFICATION Products manufactured by SELT Sp. z o. o. have appropriate technical and operational parameters. They have the following features: They provide excellent sun protection for surfaces such as terraces and balconies. -
Page 7: Type Of Brackets
Awning fabrics manufactured on the basis of high-quality materials, covered with an impregnation that Australia awning construction constitutes a protective barrier and increases resistance to dirt TYPE OF BRACKETS DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 7 / 28... -
Page 8: Completeness And Quality Condition Of Delivery
COMPLETENESS AND QUALITY CONDITION OF DELIVERY SELT Sp. z o. o. makes every effort to ensure that the goods comply with the order. However, checking the completeness of the product is the responsibility of the Buyer and should take place at the time of its receipt. -
Page 9: Requirements For Safe Installation Of The Product At Heights
prior to installation you should check whether the substrate has sufficient load capacity allowing safe assembly and operation, DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 9 / 28... -
Page 10: General Requirements For Safe Installation
4.5.1 PALLADIO AWNING INSTALLATION –WALL BRACKETS SELT recommends the use of Fischer fixing products - selected depending on the type of substrate. Suggested recommendations for selected substrates: for non-cracked concrete class C20/25 and not higher than C50/60: M10x110 A4 anchors set on injection mortar (Fischer FIS A M10x110 A4 anchors on FIS V resin or an equivalent ... - Page 11 5) Screw the wall bracket in the position as shown in the drawing in the available variants using: the upper and lower holes. Follow the anchor manufacturer's instructions regarding required anchor spacing, preparation and installation method. DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English...
- Page 12 (Note – before placing the awning verify the alignment of brackets – wall surface should be of the same thickness at installation spots). 11) Secure square bar with M8x65 screws and put PVC cover on them. DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English...
- Page 13 13) If necessary adjust the arm level by loosening or tightening the internal screw in arm brackets. 14) With spirit level check if the arms 15) Open the awning completely. close to one plane. DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 13 / 28...
-
Page 14: Palladio Awning Installation - Ceiling Bracket
17) With spirit level check if front bar is levelled horizontally. 4.5.2 AUSTRALIA AWNING INSTALLATION – CEILING BRACKET Brackets should be installed in the same order and manner as wall brackets. DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1... -
Page 15: Palladio Awning Installation - Roof Rafter Bracket
Secure square bar with M8x65 screws and put PVC cover on them. 4.5.3 AUSTRALIA AWNING INSTALLATION – ROOF RAFTER BRACKET Roof rafter brackets should be installed to roof rafters the closest to awning edge possible (it is recommended to install them at a distance of 20 to 45 cm from the ends of the awning), remaining brackets place in equal intervals. -
Page 16: Remote Operation
When the awning starts working attention should be paid to: Correct rolling down and up of the fabric DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 16 / 28... -
Page 17: Manual Drive
In the event of strong wind (exceeding the declared wind class) or heavy rain, the product should be rolled up immediately - otherwise it will lead to permanent damage It is recommended that the change of equipment configuration be consulted with SELT. DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1... -
Page 18: Safety Requirements Related To Special Conditions And Places Of Product Use
It is forbidden to use a faulty or incomplete product (e.g. without a switch, etc.). the use of such a product may cause its destruction, pose a threat to the health and life of the user. It is forbidden to make makeshift repairs. DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 18 / 28... -
Page 19: Control Of Safe Use Of The Product
Automatically controlled products may start up on their own. Make sure that no dangerous situation arises. SELT Sp. z o. o. is not responsible for damage caused by improper use. Operating the system out of sight can cause serious injury as well as damage to the system... -
Page 20: Instruction For Non-Professionals
Possible adjustment and improvement of fastening of the mentioned components. Products manufactured by SELT Sp. z o. o. do not require any special maintenance. Using the product in accordance with the manufacturer's instructions ensures long-term and trouble-free operation for the system user. Ongoing maintenance work should be carried out on a fully developed system. -
Page 21: Use Of Awning Fabrics
Due to the use of an impregnating agent, the fabric is sensitive to all kinds of scratches that are difficult to avoid even with a very precise and careful production process. This effect applies primarily to monochromatic materials. DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English... - Page 22 Stagnation of water on its surface may lead to overloading of fastenings and to slight deformations and waviness of the fabric surface. If the damp fabric is rolled up, unroll it immediately after the rain stops and let it dry. DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1...
-
Page 23: General Warranty Terms
7. GENERAL WARRANTY TERMS General warranty terms are available on www.selt.com If the SELT Sp. z o.o. website is inaccessible then warranty terms and conditions can be obtained from the sales representative of SELT Sp. z o.o. WARRANTY EXCLUSIONS The warranty will not cover: ... - Page 24 For awning fabrics the phenomena described in the section “Use of awning fabrics.” Selection of electric motors: DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 24 / 28...
-
Page 25: Complaints
Photo or video documentation in the event of the inability to deliver the claimed goods to SELT. Goods without an invoice number, order number or contract number will be considered as post-warranty goods. - Page 26 2006 on batteries and accumulators and waste (Dz. U. [Journal of Laws] 2009, no 79, item 666) batteries and accumulators and repealing Directive 91/157/EEC DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 26 / 28...
-
Page 27: Marking And Labelling Of The Product With Ce Mark
10. MARKING AND LABELLING OF THE PRODUCT WITH CE MARK 10.1 PRODUCT COMPLIANCE WITH THE CE STANDARD Products manufactured by SELT company meet the essential requirements of the standard introduced by the Polish Committee for Standardization as PN-EN 13561 what is confirmed by the manufacturer’s declaration of performance and marking the product with the CE mark. - Page 28 SELT Sp. z o. o. Opole, ul. Wschodnia 23A POLAND Awning with falding arms PALLADIO 230V/ 50 Hz Power 198 to 275 W 01 / DZ/2017 DT-E 11.3.1 TERRACE AWNING AUSTRALIA Edition: March 2016, Issue 1 English page 28 / 28...
