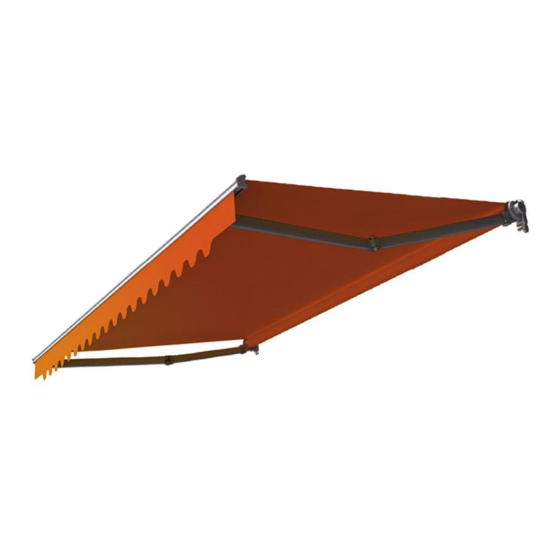

- Page 1 11.1 DT-E TECHNICAL AND OPERATIONAL DOCUMENTATION INSTALLATION MANUAL, OPERATING MANUAL AND INSTRUCTIONS FOR SAFE USE (Translated from the original manual) Awnings 11.1 Terrace awning MALTA...
- Page 2 THIS TECHNICAL AND OPERATIONAL DOCUMENTATION: Is valid from: 28 March 2022 Is applicable to the above listed product versions. DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 2 / 30...
-
Page 3: Table Of Contents
MARKING AND LABELLING OF THE PRODUCT WITH CE MARK ..................29 10.1 PRODUCT COMPLIANCE WITH THE CE STANDARD ..................29 10.2 INFORMATION ACCOMPANYING THE CE MARKING ..................29 DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 3 / 30... -
Page 4: Introduction
Threat to human life or health due to electric shock. Marking of electronic or electric equipment, which should be collected in the ENVIRONMENT designated points. DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 4 / 30... -
Page 5: Terms And Definitions
SELT SP. Z O.O. with a head office in Opole shall hold the copyrights to this documentation. The documentation cannot be used without permission, either partially or as a whole, for any concurrent business activity nor can it be made available to third parties. -
Page 6: Product Technical Information
The optional use of weather automation additionally protects the product against changing weather conditions. PRODUCT SPECYFICATION Products manufactured by SELT Sp. z o. o. have appropriate technical and operational parameters. They have the following features: They provide excellent sun protection for surfaces such as terraces and balconies. -
Page 7: Malta Awning Construction
Construction of the awning is characterised by universal brackets being simultaneously roller tube bracket, wall-ceiling bracket and arm bracket. Left bracket (with left drive side) Right bracket (with left drive side) DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 7 / 30... -
Page 8: Ceiling Installation
Undo bracket axis and nut (elements AA). b) With screws fix the motor to movable part with bracket axis and connect again complete bracket. DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 8 / 30... -
Page 9: Transport And Storage Of The Product
COMPLETENESS AND QUALITY CONDITION OF DELIVERY SELT Sp. z o. o. makes every effort to ensure that the goods comply with the order. However, checking the completeness of the product is the responsibility of the Buyer and should take place at the time of its receipt. -
Page 10: Product Installation
This chapter contains general requirements concerning the product installation. Correct assembly is a necessary condition for smooth operation of the product. SELT Sp. o.o. recommends using only professional assembly crews, which guarantee the Purchaser that the conducted installation will be correct. -
Page 11: Preparation For Installation
In case of installation in public places, e.g. hospitals, schools, bording schools etc. the placement of switch/remote control device should be marked according to health and safety regulations, DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN... -
Page 12: Installation Tools
4.5.1 MALTA AWNING INSTALLATION –UNIVERSAL WALL -CEILING BRACKET SELT sp. z o.o. recommends the use of Fischer fastening products - selected according to the type of substrate. Proposed recommendations for selected substrates: For base – uncracked concrete C20/25 class and no higher than C50/60: ... - Page 13 6) Based on the installed bracket mark installation spots for the remaining one. Pay particular attention so that the brackets are on the same level and within the same plane. DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN...
- Page 14 10) In case of manual drive install the gear to end cap with a set of M5x40mm screws. 11) Install arms (left/right) to the appropriate brackets with steel pin. DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN...
- Page 15 15) To change awning tilt angle open it completely, then loosen M22 nuts in brackets. With flat wrench loosen (to increase tilt angle) or tighten (to decrease tilt angle) regulation screws in brackets. DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN...
-
Page 16: Electric Drive
The instructions are attached to the product and are also available on the websites of motor manufacturers and on the website: www.selt.com → OUR OFFER → MOTOR, ELECTRIC, EQUIPMENT DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 16 / 30... -
Page 17: Remote Operation
(up and down movement of the fabric) are protected by limit switches that needs to be adjusted during the installation, DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 17 / 30... -
Page 18: Manual Drive
Do not allow the fabric to be rolled in the opposite direction (from the bottom of roller tube), since it may cause its ripping off the roller tube, fabric damage or incorrect awning functioning. DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN... -
Page 19: System Operation And Product Safety
- otherwise it will lead to permanent damage It is recommended that the change of equipment configuration be consulted with SELT. SAFETY REQUIREMENTS RELATED TO SPECIAL CONDITIONS AND PLACES OF PRODUCT USE Specific safety requirements relate to children up to 42 months. Essential requirements for use are applicable in all locations, to which children have access or where they could be present. - Page 20 Automatically controlled products may start up on their own. Make sure that no dangerous situation arises. SELT Sp. z o. o. is not responsible for damage caused by improper use. Operating the system out of sight can cause serious injury as well as damage to the system...
-
Page 21: Control Of Safe Use Of The Product
dangerous damage and accidents at work. The above-mentioned checks may be carried out by specialized assembly groups with appropriate qualifications. DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 21 / 30... -
Page 22: System Use And Maintenance
Possible adjustment and improvement of fastening of the mentioned components. Products manufactured by SELT Sp. z o. o. do not require any special maintenance. Using the product in accordance with the manufacturer's instructions ensures long-term and trouble-free operation for the system user. Ongoing maintenance work should be carried out on a fully developed system. -
Page 23: Use Of Awning Fabrics
Due to the use of an impregnating agent, the fabric is sensitive to all kinds of scratches that are difficult to avoid even with a very precise and careful production process. This effect applies primarily to monochromatic materials. DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN... - Page 24 Stagnation of water on its surface may lead to overloading of fastenings and to slight deformations and waviness of the fabric surface. If the damp fabric is rolled up, unroll it immediately after the rain stops and let it dry. DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN...
-
Page 25: General Warranty Terms
GENERAL WARRANTY TERMS General warranty terms are available on www.selt.com If the SELT Sp. z o.o. website is inaccessible then warranty terms and conditions can be obtained from the sales representative of SELT Sp. z o.o. WARRANTY EXCLUSIONS The warranty will not cover: ... - Page 26 Selection of electric motors: DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 26 / 30...
-
Page 27: Complaint / Technical Defects
Photo or video documentation in the event of the inability to deliver the claimed goods to SELT sp. z o.o. Goods without an invoice number, order number or contract number will be considered as post-warranty goods. -
Page 28: Product Disassembly / Utilisation / Disposal
2006 on batteries and accumulators and waste (Dz. U. [Journal of Laws] 2009, no 79, item 666) batteries and accumulators and repealing Directive 91/157/EEC DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 28 / 30... -
Page 29: Marking And Labelling Of The Product With Ce Mark
PRODUCT COMPLIANCE WITH THE CE STANDARD Products manufactured by SELT sp. z o.o. company meet the essential requirements of the standard introduced by the Polish Committee for Standardization as PN-EN 13561 what is confirmed by the manufacturer’s declaration of performance and marking the product with the CE mark. - Page 30 Opole, ul. Wschodnia 23A POLAND Awning with falding arms MALTA 230V/ 50 Hz Power 198 to 275 W 01 / DZ/2017 DT-E 11.1 SUN PROTECTION SYSTEM – TERRACE AWNING MALTA Edition 7/ March 2022 / EN page 30 / 30...
