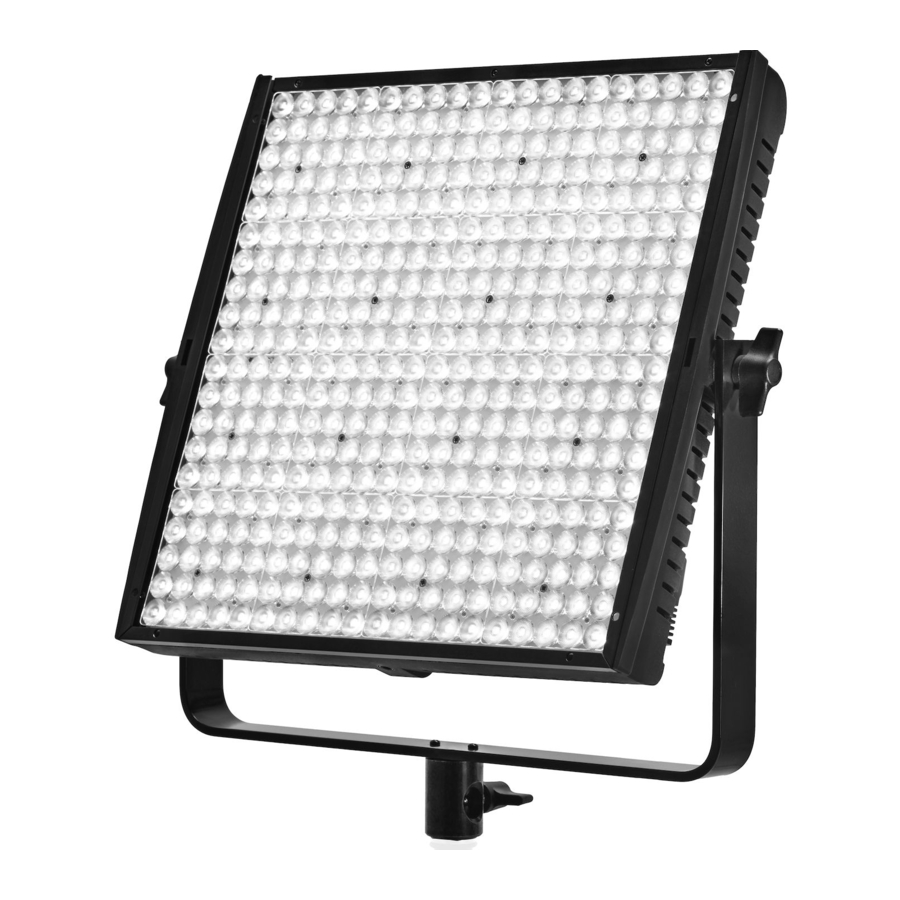

Lupo Superpanel 30 User Manuals
Dual color
Hide thumbs
Also See for Superpanel 30:
- User manuals (17 pages) ,
- User manual (11 pages) ,
- User manuals (13 pages)
Related Manuals for Lupo Superpanel 30
Summary of Contents for Lupo Superpanel 30
- Page 1 User Manuals Superpanel 30 Dual Color Superpanel 60 Dual Color Actionpanel Dual Color Release 5.xx...
-
Page 2: Safety Precautions
Thanks for having purchased Lupo products. All the products are made in Italy and all the efforts have been put to keep the quality standards high. We hope this product can help you in your job and make your life easier as a professional. - Page 3 Instructions • Device for indoor use only. • Maximum ambient temperature: 40 °C. • Make sure power supply plug is suitable to power required. • As prescribed by international regulations, a safety cable must be used when the fixture is suspended from ceiling.
- Page 4 Getting Started with the Superpanel 30 Screw hole for DMX THROUGH barndoors/diffuser (Female 5 PIN XLR connector) Display DMX INPUT Power ON indicator LED light (Male 5 PIN XLR connector) USB port CCT knob INTENSITY knob UP button DOWN button...
-
Page 5: Control Panel
Getting Started with the Superpanel 60 UP/+ button Display DOWN/+ button Power ON indicator CCT knob LED light DMX THROUGH Hook for safety cable (Female 5 PIN XLR) INTENSITY knob DMX INPUT (Male 5 PIN XLR) Tilt lock knob ON/OFF Power IN connector Power IN connector (Male 4 PIN XLR) -
Page 6: Manual Operation
ATTENTION: The light intensity level is adjustable from 0 - 50% if the FAN is OFF. The value on the display flashes. MANUAL OPERATION 1. Press the push button to enter the main MENU. 2. Select MANUAL by pressing the push button. - Page 7 3. Select the light mode between CCT / EFFECT with the knob and press the push button to confirm selection. 4. Select the DMX channel, rotating the knob to change DMX ADDRESS in ascending or descending order between 1 and 512. The number shown on the display is the selected channel to communicate with the control desk.
- Page 8 Dayled 1000 mono color 0x0003 Dayled 1000 dual color 0x0004 Dayled 2000 mono color 0x0005 Dayled 2000 dual color 0x0006 Superpanel 30 dual color soft 0x0007 Superpanel 30 dual color lens 0x0008 Superpanel 30 fullcolor soft 0x0009 Superpanel 30 fullcolor lens 0x0010...
- Page 9 This parameter provides an ASCII text MANUFACTURER 0x0081 response with the Manufacturer name for the LABEL device. “LUPO” is the default name. Set the device to its factory defaults. Get: FACTORY DEFAULTS 0x0090 Check if settings still in default state -> 1 if...
-
Page 10: Device Settings
DEVICE SETTINGS 1. Press the push button to enter the main MENU. 2. Navigate through the MENU rotating the button, select DEVICE SETTINGS, press the push button to confirm the selection. 3. Navigate through the FAN / DISPLAY / MENU VIEW / FREQUENCY / FILTER / LINEARIZATION functions, rotating the button to select the desired function and press push button to confirm the selection. - Page 11 DMX OPERATION - DMX protocol The Actionpanel can be used with 8 bit (1 channel per function) and 16 bit (2 channels per function). The Actionpanel uses consecutive channels starting from the DMX address set on the panel used as reference for the connection to the control desk. Please take the above into consideration when using many units of Actionpanel to avoid overlaps.
- Page 12 NOTE: After 1 minute of inactivity in the menu, the device automatically exits and returns to the last selected mode. Lupo srl - Via V. Sassi 28/30 Collegno (TO) - 10093 - Italy Phone: +39 011 411 9919 / e-mail: contact@lupo.it / website: www.lupo.it...
- Page 13 AC input: 100 V - 240 V DC output: 24 V Bracket ATTENTION: Please keep the original package of the product in a safe place for warranty reasons. Actionpanel Package Contents for Superpanel 30 AC Power AC Adapter AC Adapter Cord Cable Mounting Bracket...
