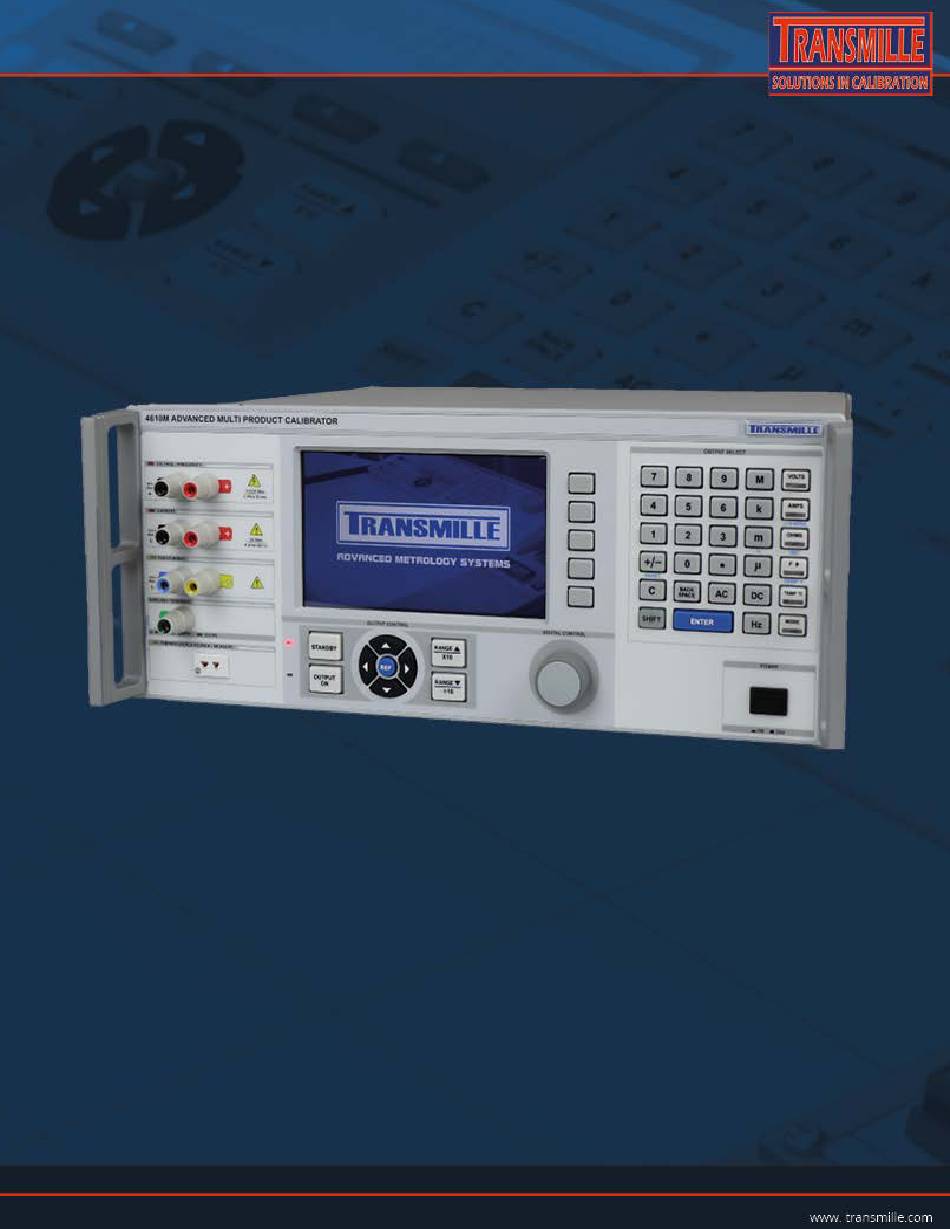

TRANSMILLE 4610M
ADVANCED MULTIPRODUCT
CALIBRATOR
OPERATION MANUAL
V3.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4610M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transmille 4610M

Summary of Contents for Transmille 4610M

  • Page 1 TRANSMILLE 4610M ADVANCED MULTIPRODUCT CALIBRATOR OPERATION MANUAL V3.01...

  • Page 2: Table Of Contents

    3.5 : Error Message Indicator..................21 3.6 : Wait Indicator......................21 3.7 : Touchscreen Interface Functionality ............. 22 3.8 : Connection Help Prompts................. 23 3.9 : Main Menu ......................25 3.10 : View Configuration.................... 26 Transmille Ltd 4610M Operation Manual V3.01 - April 2023...
  • Page 3 4.2 : Current Up To 2A - AC/DC ................. 53 4.3 : Current Above 2A - AC/DC ................54 4.4 : Resistance - 2 Wire Passive / 2 Wire Simulated Variable / 2 Wire Simulat- ed Variable PRT ....................54 Transmille Ltd 4610M Operation Manual V3.01 - April 2023...
  • Page 4 5.22 : Setting Simulated PRT (RTD) Output ............88 5.23 : Setting DC Current Output using EA002 Coil .......... 90 5.24 : Setting AC Current Output using EA002 Coil........... 92 6.Guarantee and Service ....... 95 Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 5: Introduction

    1 Introduction The 4610M calibrator offers the most advanced and up to date means of calibration of a wide variety of electrical measuring instruments. The 4610M advanced multi product calibrator provides a fully functional, precision programmable calibration source. Main Features •...

  • Page 6: Usb Interface

    External options include current coil adapter for the calibration of clamp meters. USB Interface All functions and outputs of the 4610M calibrator are fully programmable over the USB interface. The USB Interface presents the calibrator as an RS232 port to the computer. A driver from FTDI is required if the driver is not detected automatically, which can be downloaded from https:// ftdichip.com/drivers/d2xx-drivers/.

  • Page 7: Preparing The Calibrator For Use

    For all installations care must be taken not to cover the ventilation slots underneath or block the fan. A 2” (5cm) space behind the instrument is also required for line and interface connections. Transmille Ltd 4610M Operation Manual V3.01...

  • Page 8: Rear Panel Connections And Controls

    A USB Type B socket is provided for connection to computers for remote control of the calibrator through software. A GPIB interface is provided to allow remote control of the 4610M calibrator via GPIB (IEEE488). Figure 2-1 : 4610M Rear Panel Setting and checking the Line Voltage NOTE :Warning: The line power cord must have an earth conductor to avoid risk of shock.
  • Page 9 Figure 2-3 : Position of Flat Bladed Screwdriver to open Fuse Tray Gently hinge the fuse holder flap forward so that the interior of the inlet is visible, and then remove the barrel Figure 2-4 : Interior of mains inlet Transmille Ltd 4610M Operation Manual V3.01...

  • Page 10: Power Line Inlet Fuse And Rating

    Figure 2-7 : Position of Flat Bladed Screwdriver to open Fuse Tray Gently hinge the fuse holder flap forward so that the interior of the inlet is visible, and then remove both fuse holders (marked with arrows pointing to one side) Transmille Ltd 4610M Operation Manual V3.01...

  • Page 11: Powering Up The Calibrator

    After connecting line power, the calibrator can be switched on with the line power switch on the right-hand side of the front panel. Push the power switch in to power up the calibrator (pushing the power switch again will release the button and the calibrator will switch off). Transmille Ltd 4610M Operation Manual V3.01...

  • Page 12: Output Connections

    The fan will start, and the front panel display will illuminate indicating power. The display will show the Transmille logo and state that it is initializing. After a short delay, during which time the processor performs a self-test of the instrument, the display will show an output of 000.00000mV DC.
  • Page 13 4mm style connectors, as well as spade and bare wire connections when the binding post is in the open position. The 4610M calibrator outputs have been designed to allow most multimeters to be calibrated without changing connections. There are 4 separate ‘sets’ of binding posts that are used for outputs.

  • Page 14: Warning And Output Overload Indications

    Outputs are optically isolated from the USB and GPIB interfaces. Warning and output Overload indications. The self-test function of the 4610M calibrator continuously monitors the output of the calibrator for overload or fault conditions. In the event of the calibrator not being able to drive the load, it will automatically trip into standby –...

  • Page 15: High Voltage Timeout

    2.9.2 30 Amp Temperature Cut-out The 4610M calibrator can supply high currents for sustained periods of up to 30A. Above this value the calibrator will enter a standby / cool-down period until the instrument’s temperature has reduced. The output amplifier operating temperature is monitored by the micro controller, which will shut down the output if required.

  • Page 16: Operation

    NOTE :WARNING: This instrument is capable of generating both DC and AC high voltages. Introduction to Operation All functions of the 4610M Calibrator can be controlled from the front panel soft keys, touch screen interface or controlled remotely by a computer. During remote control the front panel is ‘locked out’, but local control may be resumed by pressing the ‘local’...

  • Page 17: Front Panel Controls

    Front Panel Controls The front panel of the 4610M Calibrator utilizes a high-quality custom rubber keyboard with tactile feel buttons and integrated touchscreen interface. The front panel is therefore sealed against the ingress of moisture and dirt enabling the calibrator to be used in most working environments without risk of early failure of the operating buttons.
  • Page 18 Multiplier Keys Mega (M), kilo (k), milli (m), micro(μ) or nano (n). Function Keys Volts (V), Amps(A), Ohms (2 & 4 Wire), Farads(F), Celsius(°C), & Fahrenheit (°F) Table 1: Keyboard Functions Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 19: Digital Control

    Figure 3-12 : Front Panel Control Transmille Ltd 4610M Operation Manual V3.01 - April 2023...
  • Page 20 Figure 3-15 : Dual Parameters, 1st Parameter Selected The digital control can be pushed to select the highlighted functions on the display instead of using the button on the screen as shown below. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 21: Error Message Indicator

    (including ramp time). To assist the operator, a ‘WAIT’ indicator is displayed in the lower left of the screen to indicate that the output of the calibrator is still settling. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 22: Touchscreen Interface Functionality

    A ‘connection help’ button is also located at the bottom of the LCD display. This provides detailed user assistance in the form of connection schematics for each type of measurement. The touchscreen features are shown below: Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 23: Connection Help Prompts

    10. Error Message Indicator 11. Connection Help Connection Help Prompts To ensure ease of use, the 4610M Calibrator features inbuilt connection help prompts which can be displayed on the screen. These prompts are designed to assist with making connections to typical test equipment.
  • Page 24 NOTE : The image is a generic image and does not show a specific UUT / DUT. The operation manual for the UUT / DUT should always be referred to for settings and input connections. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 25: Main Menu

    Main Menu The 4610M calibrator provides a host of easily accessible menu’s including configuration, functions, general and system settings and calibration. To enter the menu page, press the ‘MENU’ soft key or touch the screen whilst on the main output screen.

  • Page 26: View Configuration

    Function Menu To view the function menu, use the digital control or touchscreen directly to highlight ‘Function Menu’. Press the Soft key or the ‘Enter’ keyboard key to enter the Function Menu Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 27: Function Menu - Voltage

    Figure 3-23 : Function Menu 3.11.1 Function Menu – Voltage Using the digital control and soft keys or the touchscreen directly, navigate to the voltage function (DC or AC). Figure 3-24 : Voltage Menu Tree Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 28: Function Menu - Current

    Using the digital control and soft keys or the touchscreen directly, navigate to the resistance function. There are 5 resistance modes available : • 2 Wire Simulated • 2 Wire Simulated (Compensated) • 4 Wire Simulated • 2 Wire Passive • 4 Wire Passive. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...
  • Page 29 Figure 3-26 : Resistance Menu Tree - Simulated Options Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 30: Function Menu - Capacitance

    Figure 3-27 : Resistance Menu Tree - Passive Options 3.11.4 Function Menu – Capacitance Using the digital control and soft keys or the touchscreen directly, navigate to the capacitance function (passive or simulated). Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 31: Function Menu - Pulse Width Modulation / Duty Cycle

    3.11.5 Function Menu – Pulse Width Modulation / Duty Cycle Using the digital control and soft keys or the touchscreen directly, navigate to the Pulse Width Modulation (PWM) / Duty Cycle function. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 32: Function Menu - Prt / Rtd

    3.11.6 Function Menu – PRT / RTD Using the digital control and soft keys or the touchscreen directly, navigate to the PRT / RTD function. Figure 3-30 : Capacitance Menu Tree Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 33: Function Menu - Thermocouple

    (source or measurement). Figure 3-31 : Thermocouple Menu Tree 3.12 General Settings To view the general settings, use the digital control or touchscreen directly to highlight ‘General Settings’ on the main menu, Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 34: General Settings - Configure Beeper

    = ± 104μV To view the specification display mode settings, use the digital control to highlight ‘Specification Display Mode’ on the general settings menu and then press the key or use the touchscreen Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 35: General Settings - Set Gpib Address

    Enabled = specifications displayed during warmup To view the Specifications, display during warmup settings, use the digital control to highlight ‘Specifications Display During Warmup’ on the general settings menu and then press the Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 36: General Settings - Default Negative To Ground State

    Allows user to set the default AC Frequency at power up from 10Hz to 100kHz. Note - This will not extend the range of ranges that cannot output these frequencies, but changes the behavior of the button Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 37: General Settings - View Error Log

    Figure 3-33 : System Settings Menu - Passcode Entry Follow the instructions on the screen to enter the pass code (default: 1234) at which point the following screen displays. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 38: System Settings - Set Time & Date

    Follow the instructions on the screen to change the time and date. NOTE :Date is entered in Day / Month / Year (2 Digits) format, and time is entered in 24 Hour Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 39: System Settings - Change Passcode

    To view the change pass code settings, use the digital control to highlight ‘Change Passcode’ on the system settings menu and then press the key or use the touchscreen directly to highlight the function. Follow the instructions on the screen. Figure 3-36 : Passcode Entry Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 40: System Settings - Update Via Usb Service Port

    NOTE :The screen will go blank/black for up to 10 seconds during the restart, this is normal 3.13.4 System Settings - Hardware error detection When performing diagnostic tests for service and repair of the 4610M, it is sometimes advantageous to disable the hardware error detect.

  • Page 41: System Settings - Restart Calibrator

    To restart the calibrator, use the digital control to highlight ‘Restart Calibrator’ on the system settings menu and then press the key or use the touchscreen directly to highlight the function. The calibrator will restart and go through its initialization. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 42: Calibration Menu

    To view the Calibration Menu, use the digital control or touchscreen directly to highlight ‘Calibration’ on the main menu, touch or press the soft key adjacent to the function, the enter passcode screen will appear. Figure 3-40 : Passcode Prompt Transmille Ltd 4610M Operation Manual V3.01 - April 2023...
  • Page 43 Menu’ the pass code will need to be entered again to access either the ‘System Settings’ or ‘Calibration’ menu’s. If an invalid passcode is entered, the following warning will display Figure 3-41 : Passcode Prompt On correct entry of the passcode, the following menu will display Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 44: Calibration / Adjustment Mode

    Figure 3-42 : Calibration Menu 3.14.1 Calibration / Adjustment Mode Refer to the 4610M verification and Calibration Manual for information regarding calibration/ adjustment of the 4610M Calibrator 3.14.2 Backup Calibration Data Selecting this option will perform a local backup of the calibration factors that can be restored if required 3.14.3 Restore Calibration Data...

  • Page 45: Calibrate Touchscreen

    Follow the instructions on the screen. Figure 3-43 : Screen Calibration Menu After pressing ‘OK’ on the screen, the screen will turn WHITE and state Transmille Ltd 4610M Operation Manual V3.01 - April 2023...
  • Page 46 Press the Esc key to keep the old settings’ Press the screen anywhere with a finger or a stylus and the calibration screen will disappear and be replaced with the menu Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 47: Export Calibration To Usb

    Special Functions Available Using the ‘Soft’ Keys The ‘soft’ keys are positioned to the right-hand side of the touchscreen display. The function of these keys will change depending on the parameter of the calibrator. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 48: Connecting Output Negative To Line Earth (Ground)

    (line earth). The ‘on’ condition is shown at the top right of the display, as well as by the front panel LED. Transmille recommend that the output is connected to ground as this reduces noise and pick up and decreases the risk of damage to the calibrator, UUT and user by incorrect connection. If Negative to ground is disabled, there is potential for the negative of the calibrator to be ‘floated’...

  • Page 49: Terminal Status Led's

    Terminal Status LED’s LED’s above the terminals indicate which pair is active. When terminals are not active, they are electrically isolated from each other. This enables terminals to be linked together if required. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...
  • Page 50 When floating, the maximum voltage on this terminal with respect to ground should not exceed 50 Volts peak. Table 2: Terminal Descriptions Transmille Ltd 4610M Operation Manual V3.01 - April 2023...
  • Page 51 Thermocouple Source / Measure Thermocouple mini connector for simulation and measurement of thermocouples, example K & J types Table 2: Terminal Descriptions NOTE :Dangerous voltage or current may be present on these terminals Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 52: Connection Diagrams

    Provided in this section are example connection diagrams for typical pieces of test equipment, indicating the terminals to use for each type of output. NOTE :These connection diagrams are the default diagrams that the 4610M has loaded. It is possible to upload custom connection diagrams which will change the images.

  • Page 53: Voltage - Ac/Dc

    Voltage - AC/DC Figure 4-1 : AC / DC Voltage Current Up To 2A - AC/DC Figure 4-2 : AC / DC Current <= 2A Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 54: Current Above 2A - Ac/Dc

    Figure 4-3 : AC / DC Current < 2A Resistance - 2 Wire Passive / 2 Wire Simulated Variable / 2 Wire Simulated Variable PRT Figure 4-4 : Resistance - 2 Wire Connection Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 55: Resistance - 2 Wire Compensated Simulated

    Resistance - 2 Wire Compensated Simulated Figure 4-5 : Resistance - 2 Wire Compensated Connection Resistance - 4 Wire Passive / 4 Wire Simulated Figure 4-6 : Resistance - 4 Wire Connection Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 56: Capacitance - Passive & Variable

    Capacitance – Passive & Variable Figure 4-7 : Capacitance Connection Frequency Figure 4-8 : Frequency Connections Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 57: Pulse Width Modulation (Pwm) / Duty Cycle

    Pulse Width Modulation (PWM) / Duty Cycle Figure 4-9 : PWM / Duty Cycle Connections 4.10 Thermocouple Source Figure 4-10 : Thermocouple Source Connection Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 58: Thermocouple Measurement

    4.11 Thermocouple Measurement Figure 4-11 : Thermocouple Measurement Connection 4.12 Current Simulation Up To 1500A Using EA002 Coil Adapter Figure 4-12 : EA002 - Source Current <= 2A AC/DC Transmille Ltd 4610M Operation Manual V3.01 - April 2023...
  • Page 59 Figure 4-13 : EA002 - Source Current > 2A AC/DC Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 60: Setting Outputs

    If the deviation/ change takes the range outside of capability, the calibrator will automatically change to the next applicable range if Range Hold is disabled. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 61: Automatic Display Of % Or Ppm Error And Reference Key

    This feature is ideal for displaying the error in a meter under test by adjusting the output from the calibrator to make the meter read the nominal value. This is most useful for use with an analog UUT / DUT Figure 5-15 : Deviation from Reference Value Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 62: Range Hold

    After setting an output or turning the output on, the calibrator will require time for the output to settle to the new value (including ramp time). To assist the operator, a ‘WAIT’ indicator is Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 63: Low Impedance Loads

    The reason for limited compliance current on the 200mV ranges is due to a precision voltage divider used for the 20mV & 200mV ranges of the 4610M calibrator. This results in significantly lower noise output on low voltage ranges than equivalent calibrators, at the expense of lower available compliance current.

  • Page 64: Setting A Dc Voltage Output

    • Reset the calibrator using the key, followed by the • Connect the UUT / DUT to the 4610M calibrator after ensuring the output is turned OFF • Ensure the UUT / DUT has been set to measure the correct input on the desired range.

  • Page 65: Setting A Dc Current Output

    • Reset the calibrator using the key, followed by the • Connect the UUT / DUT to the 4610M calibrator after ensuring the output is turned OFF • Ensure the UUT / DUT has been set to measure the correct input on the desired range.

  • Page 66: Setting An Ac Voltage Output

    • Reset the calibrator using the key, followed by the • Connect the UUT / DUT to the 4610M calibrator after ensuring the output is turned OFF • Ensure the UUT / DUT has been set to measure the correct input on the desired range.

  • Page 67: Setting An Ac Current Output

    • Reset the calibrator using the key, followed by the • Connect the UUT / DUT to the 4610M calibrator after ensuring the output is turned OFF • Ensure the UUT / DUT has been set to measure the correct input on the desired range.

  • Page 68: Setting 2-Wire Simulated Resistance Output

    • Reset the calibrator using the key, followed by the • Connect the UUT / DUT to the 4610M calibrator after ensuring the output is turned OFF • Ensure the UUT / DUT has been set to measure the correct input on the desired range.
  • Page 69 Figure 5-22 : 2 Wire Simulated Resistance Output Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 70: Setting 4-Wire Simulated Resistance Output

    • Reset the calibrator using the key, followed by the • Connect the UUT / DUT to the 4610M calibrator after ensuring the output is turned OFF • Ensure the UUT / DUT has been set to measure the correct input on the desired range.

  • Page 71: Setting 2-Wire Simulated Compensated Resistance

    • Reset the calibrator using the key, followed by the • Connect the unit under test to the 4610M calibrator after ensuring the output is turned OFF • Ensure the UUT / DUT has been set to measure the correct input on the desired range.

  • Page 72: Setting 2-Wire Passive Resistance Output

    • Reset the calibrator using the key, followed by the • Connect the unit under test to the 4610M calibrator after ensuring the output is turned OFF • Ensure the UUT / DUT has been set to measure the correct input on the desired range.
  • Page 73 Figure 5-25 : 2 Wire Passive Resistance Output Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 74: Setting 4-Wire Passive Resistance Output

    • Reset the calibrator using the key, followed by the • Connect the unit under test to the 4610M calibrator after ensuring the output is turned OFF • Ensure the UUT / DUT has been set to measure the correct input on the desired range.
  • Page 75 Figure 5-26 : 4 Wire Passive Resistance Output Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 76: Setting Simulated Capacitance Output

    • Reset the calibrator using the key, followed by the • Connect the unit under test to the 4610M calibrator after ensuring the output is turned OFF • Ensure the UUT / DUT has been set to measure the correct input on the desired range.
  • Page 77 • Press the key to activate the calibrator output Figure 5-27 : Simulated Capacitance Output Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 78: Setting Passive Capacitance Output

    Meters. DC / Pulsed meters should have their leads Nulled to the Current terminals, with the calibrator in Standby. LCR Meters (using an AC Test Signal) should have their NULL performed with the leads disconnected from the 4610M NOTE :The calibrator uses fixed value capacitors, with the reported value being the value at 1kHz.
  • Page 79 • If testing an LCR Meter, with the leads disconnected, perform a Zero Trim operation - refer to the instruction manual • Connect the unit under test to the Voltage terminals of the 4610M calibrator after ensuring the output is turned OFF •...

  • Page 80: Thermocouple Simulation (Source) Mode

    Thermocouple lead is being used. • On the 4610M, press the following key sequence • On the screen of the 4610M, ensure that the required type is selected. Press the button on the screen to change the Type •...
  • Page 81 °F Entry. When in Auto Cold Junction, a measurement of the 4610M internal cold junction is taken approximately every 5 seconds. The reported cold junction is displayed on the left hand side of the...
  • Page 82 To edit the cold junction temperature, press the ‘Manual CJ’ soft key, and then enter the desired CJ in the currently set units using the numeric keypad entry Figure 5-32 : Manual Cold Junction Entry Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 83: Thermocouple Measurement Mode

    • Select ‘Thermocouple Source / Measure’ from the Menu • Select ‘Thermocouple Measurement’ from the Thermocouple Menu • On the screen of the 4610M, ensure that the required type is selected. Press the button on the screen to change the Type •...
  • Page 84 To change between °C and °F, press either ‘Set °C’ or ‘Set °F’ as required. When in Auto Cold Junction, a measurement of the 4610M internal cold junction is taken approximately every 5 seconds. The reported cold junction is displayed on the left hand side of the...
  • Page 85 To edit the cold junction temperature, press the ‘Manual CJ’ soft key, and then enter the desired CJ in the currently set units using the numeric keypad entry. The 4610M will stop sampling the input while the manual cold junction entry prompt is visible.

  • Page 86: Setting Frequency Output

    0V to +5V. Complete the following procedure to set a PWM. If an entry error is made, use the ‘backspace’ or ‘C’ (clear) soft keys to edit and delete the entry. Transmille Ltd 4610M Operation Manual V3.01 - April 2023...
  • Page 87 • Select ‘Pulse Width Modulation / Duty Cycle’ from the Menu • On the screen of the 4610M, Edit the Duty Cycle, pk-pk Level, Frequency and DC Offset using the soft keys to select the parameter and the arrow keys or digital control to edit to the desired output •...

  • Page 88: Setting Simulated Prt (Rtd) Output

    • Reset the calibrator using the key, followed by the • Connect the meter under test to the 4610M calibrator as required (For a 2 Wire connection, see “Resistance - 2 Wire Passive / 2 Wire Simulated Variable / 2 Wire Simulated Variable PRT” on page 54 or “Resistance - 2 Wire Compensated Simulated”...
  • Page 89 The PRT (Simulated) mode can output as 2 Wire, 4 Wire and 2 Wire Compensated resistance. To change the mode, press the desired mode from the second row of on screen buttons Figure 5-39 : PRT (Simulated) - Ohms Mode Highlighted Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 90: Setting Dc Current Output Using Ea002 Coil

    Figure 5-41 : Main Screen - 50 Turn Coil Active The 4610M calibrator can be used with the optional current coil EA002 (2, 10 and 50 turn coil) or any other current coil that does not exceed the burden voltage limits.
  • Page 91 • Connect the 50 Turn connections of the EA002 to the High Current terminals of the 4610M • Ensure the UUT / DUT has been set to measure the correct input on the desired range, and con- nect around the 50 turn post of the EA002.

  • Page 92: Setting Ac Current Output Using Ea002 Coil

    Figure 5-44 : Main Screen - 50 Turn Coil Active The 4610M calibrator can be used with the optional current coil EA002 (2, 10 and 50 turn coil) or any other current coil that does not exceed the burden voltage limits.
  • Page 93 • Connect the 50 Turn connections of the EA002 to the High Current terminals of the 4610M • Ensure the UUT / DUT has been set to measure the correct input on the desired range, and con- nect around the 50 turn post of the EA002.
  • Page 94 2 Turn Coil - Maximum current 60 A (2 x 30A) 10 Turn Coil - Maximum current 300A (10 x 30A) 50 Turn Coil - Maximum current 1500A (50 x 30A) Transmille Ltd 4610M Operation Manual V3.01 - April 2023...

  • Page 95: Guarantee And Service

    To obtain repair under this guarantee the purchaser must return the instrument in its original packaging (carriage prepaid) and a description of the fault to Transmille in either the UK or the USA. The instrument will be repaired at the factory and returned to the purchaser; carriage prepaid.

Table of Contents
