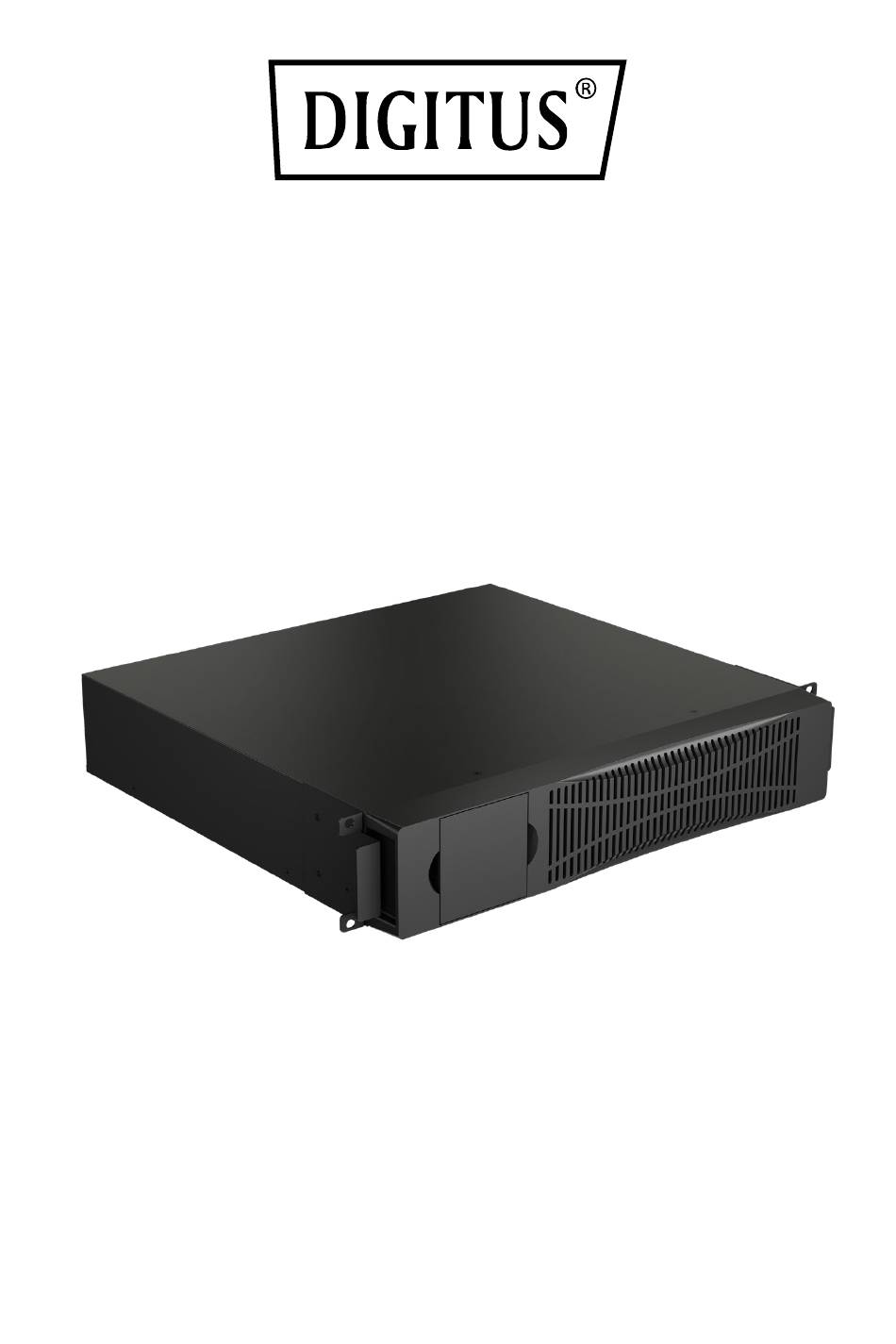

- Page 1 UPS BATTERY MODULE Manual DN-170120/ DN-170121/ DN-170122/ DN-170123...
-
Page 2: Table Of Contents
Table of Contents Introduction ................. 4 Package Content ..............4 Safety Warnings ..............4 Rear Panel Description ............5 Installation ................5 Operation ................8 Maintenance ................ 8 Testing New Batteries ............12 Specifications (for with charger model) ......13... - Page 3 Special Symbols The following are examples of symbols used on the UPS or accessories to alert you to important information: RISK OF ELECTRIC SHOCK – Observe the warning associated with the risk of electric shock symbol. CAUTION: REFER TO OPERATOR'S MANUAL – Refer to your operator's manual for additional information, such as important operating and maintenance instructions...
-
Page 4: Introduction
1. Introduction The extended battery pack can be added to UPS to extend the available battery time. Up to four EB PS can be installed with the ups. 2. Package Content Check the accessories according to the packing list and contact the dealer in case of missing parts. -
Page 5: Rear Panel Description
Proper disposal of batteries is required. Refer to your local • codes for disposal requirements. Never dispose of batteries in a fire. Batteries may explode • when exposed to flame. 4. Rear Panel Description GND screw hole AC input socket Breaker SBS50 terminal 5. - Page 6 Remove the front cover of UPS. Press the panel side with LCD display, hold the other side and quickly extract it, and then extract the other side with display. A ribbon cable connects the LCD control panel to the UPS. Do not pull on the cable or disconnect it. When remove the panel, operate as the following below Figure shows instead of the left one.
- Page 7 Plug the EBP cable(s) into the battery connector(s) • A small amount of arcing may occur when connecting an EBP to the UPS. This is normal and will not harm personnel. Insert the EBP cable into the UPS battery connector quickly and firmly. Connect red to red, black to black, and yellow to yellow.
-
Page 8: Operation
• Put the front panel side with display to the panel port, put another side to the other two ports, then press it until the panel and the chassis are combined tightly. Verify that all wiring connecting the UPS and EBP(s) is installed behind the front covers and is inaccessible to users. - Page 9 The EBP can be replaced when UPS is ON but be aware that • if the utility fails at that time, the load of the UPS may NOT be protected. • For safety, suggest removing input power before changing the batteries. WARNING •...
- Page 10 Remove the connection cables between battery box and UPS. Release the screw of the baffle of the battery pack. Remove the baffle from the left. M4x8 Pan-Head Screws (2 places) Insert the thin-wall into the slot Grasp the handle in front of the battery pack, take out of it and hold it, then remove the battery pack.
- Page 11 Hold the middle of the new battery pack, insert it. Make sure that the whole battery pack is in position. M4x8 Pan-Head Screws (4 places) Insert the thin-wall into the slot If the fuse melting, replace it from the front. Take out the fuse from here...
-
Page 12: Testing New Batteries
8. Testing New Batteries To test new batteries: Plug the EBP into a power outlet for 12 hours to charge the batteries. Start up the UPS by pressing the startup combination button. Press the battery test combination button to activate the battery test. -
Page 13: Specifications (For With Charger Model)
CAUTION Do not discard the battery pack or the batteries in the • trash. This product contains sealed, lead-acid batteries and must be disposed of properly. For more information, contact you r local recycling/reuse or hazardous waste center. Do not discard waste electric al or electronic equipment •... - Page 14 This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
