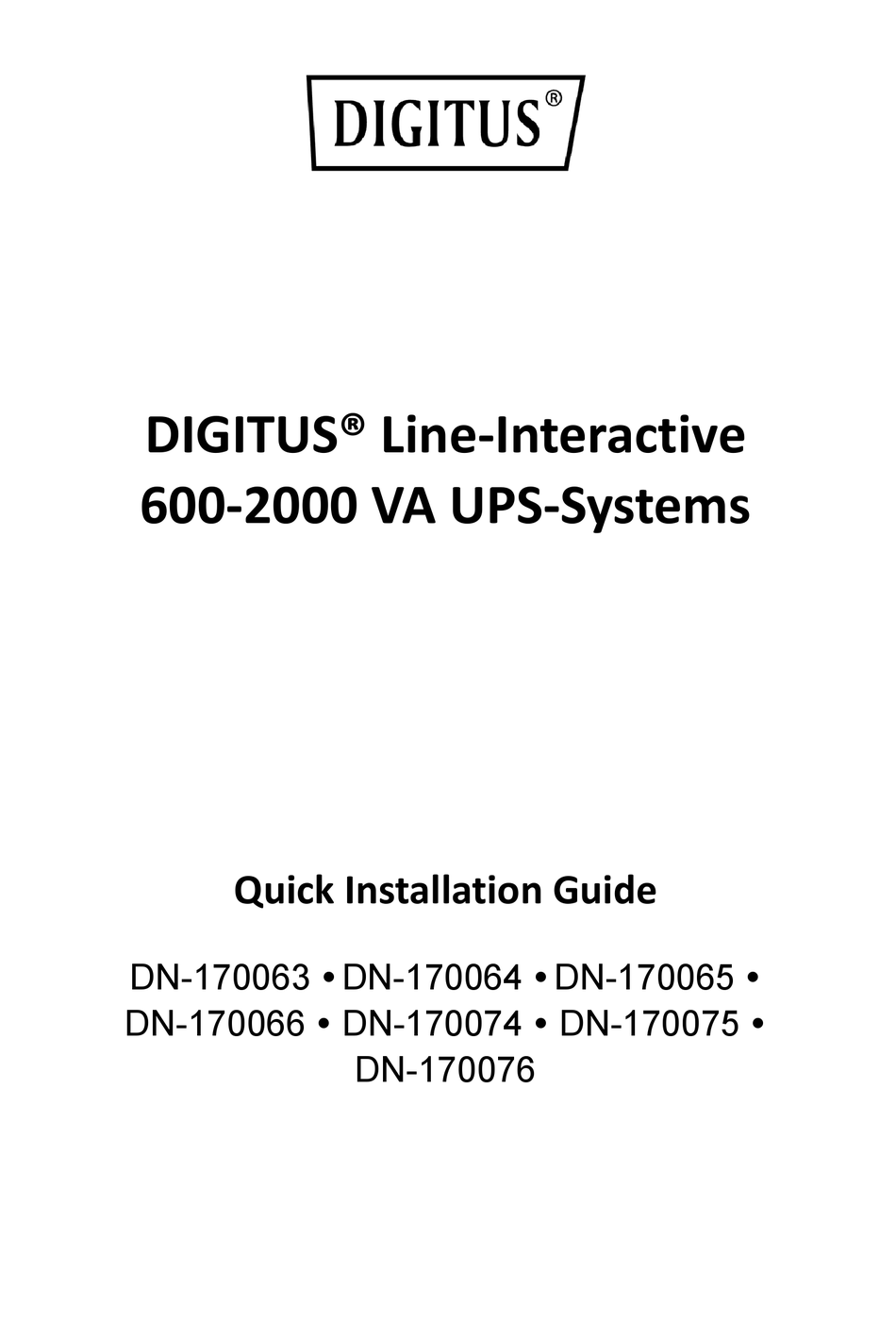

- Page 1 DIGITUS® Line-Interactive 600-2000 VA UPS-Systems Quick Installation Guide DN-170063 DN-170064 DN-170065 DN-170066 DN-170074 DN-170075 DN-170076...
-
Page 2: Safety Warning
Safety Warning - The voltages inside UPS may be hazardous. Do not attempt to disassemble the unit. The unit contains no user serviceable parts. Only factory service personnel may perform repairs. - Internal battery voltage is 12Vdc. sealed, lead-acid, 6 cells battery. - Connection to any other type of receptacle other than a two-pole, three-wire grounded receptacle may result in shock hazard as well as violating to local electrical codes. -
Page 3: Package Content
5) Disconnect charging source prior to connecting or disconnecting batteries terminals. - Servicing of batteries should be performed or supervised by technical and authorized personnel only. - When replacing batteries, replace with the same number and type of sealed lead-acid battery. The maximum ambient temperature rating is 40°C. -
Page 4: System Description
- Battery Mode: Yellow LED flashing (600VA - 1000VA)/The left green LED flashing & the 1 to 4 green LEDs gradually lighting indicating batter capacity (1500VA, 2000VA). - Fault Mode: Red LED lighting. 600 VA/ 800 VA DN-170063/ DN-170064 1000 VA DN-170065/ DN-170074... - Page 5 1500 VA/ 2000 VA DN-170066/ DN-170075/ DN-170076 3. LCD 1. Input voltage 2. Output voltage 3. AC mode (UPS in AVR mode, this LCD symbol flashes) 4. Battery mode (when AC input voltage is abnormal, this LCD symbol lights) 5. Battery level (battery capability) 6.
- Page 6 Back Panel: 1000 VA 1500 VA/ 2000 VA 600 VA/ 800 VA 1. AC input DN-170063/-64 DN-170065/ -74 DN-170066/ -75/ -76 2. Output receptacles 3. USB & RJ11 (optional) 4. USB & RS232 (optional) 5. RJ45 (optional) 6. Circuit breaker 1.
- Page 7 3. Placement Install the UPS unit in any protected environment that provides adequate airflow around the unit, and is free from excessive dust, corrosive fumes and conductive contaminants. Do not operate your UPS in an environment where the ambient temperature or humidity is high.
-
Page 8: Troubleshooting
Power Switch 6. DC start All Series are equipped with DC Start. To start UPS when AC utility power is not available, simply press the power switch. TROUBLE SHOOTING Symptom Possible Cause Proposed Action No LCD lighting (for 1. Battery weal 1. - Page 9 The manual content may be changed. Please also refer to the latest version on the web shop. This is a Class A product. In home environment, this product may cause radio interference. In this case, the user may be required to take appropriate measures. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content.
