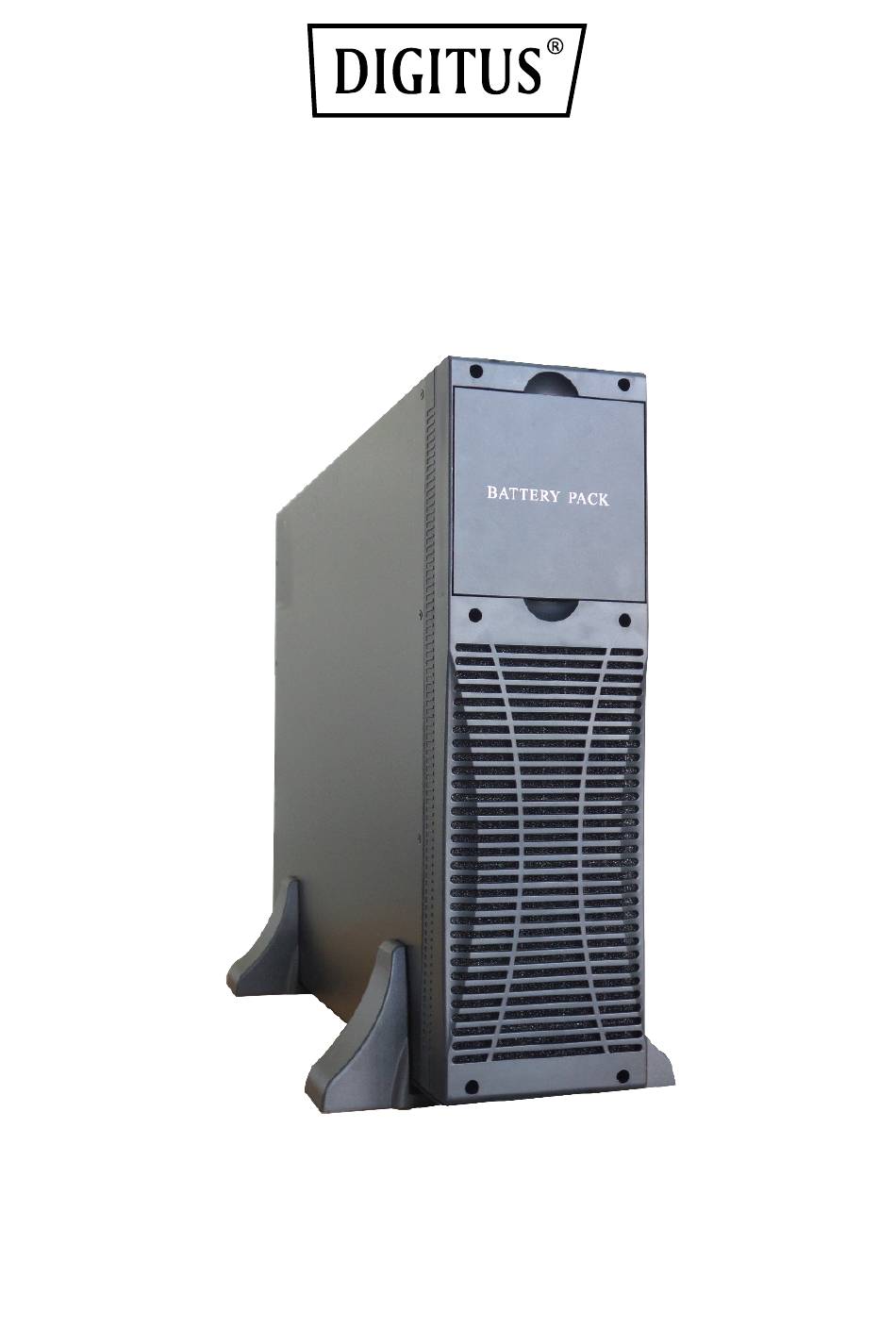

- Page 1 UPS BATTERY MODULE Manual DN-170108 Rev.2...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions that you should follow during installation and maintenance of the Extended Battery Pack (EPB). Please read all instructions before operating the equipment and save this manual for future reference. Only qualified service personnel with knowledge of batteries and the required precautions should perform servicing. - Page 3 WARNING To reduce the risk of fire or electric shock: • Install or service the EBP in a temperature and humidity controlled, indoor environment, free of conductive contaminants. • Ambient temperature must not exceed 40°C (104°F). • Do not operate near water or excessive humidity (90% maximum).
- Page 4 1. Design 6-10kVA Extended Battery Packs dimension is W443*H131*D585mm. It includes battery connection cables, breaker, terminal, etc, with max. capacity of 20pcs 12V/7Ah or 12V/9Ah batteries inside. The battery connection could be configured to output ±120V, two groups batteries connect in series as BAT+, BATN, BAT–.
- Page 5 2. Assembly 2.1 Dismount the cabinet shell Put the battery pack on a level, take off the panel, remove the battery tray top covers and battery holder for easier battery installation and connection as shown in Fig.2 & Fig.3 Fig.2...
- Page 6 Fig.3 2.2 Battery installation and connection Users need 20pcs batteries, divide into 2 groups. Each group has 10pcs batteries in series, as (BAT+, BATN, BAT-) shown below. 2.2.1 Batteries installation and connection: There have 20pcs batteries, then connect the batteries as shown in below pictures.
- Page 7 Batteries 20pcs Fig. 4 (20pcs batteries installation) Fig. 5 (20pcs batteries connection)
- Page 8 2.2.2 After the battery installation and connection done: Check if BAT+ to N & N to BAT- voltages are correct with multimeter or other equipments. Install the cover if the voltages are correct. NOTE: Battery “+” “-” poles cannot be reversed, also cannot short the battery “+”...
- Page 9 4. Disclaimer UNLESS SPECIFICALLY AGREED TO IN WRITING, SELLER MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION; ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSSES, DAMAGES, COSTS OR EXPENSES, WHETHER SPECIAL, DIRECT, INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH INFORMATION.
