CHIEF PAC527F-KIT Installation Instructions Manual page 10

PAC527 Series

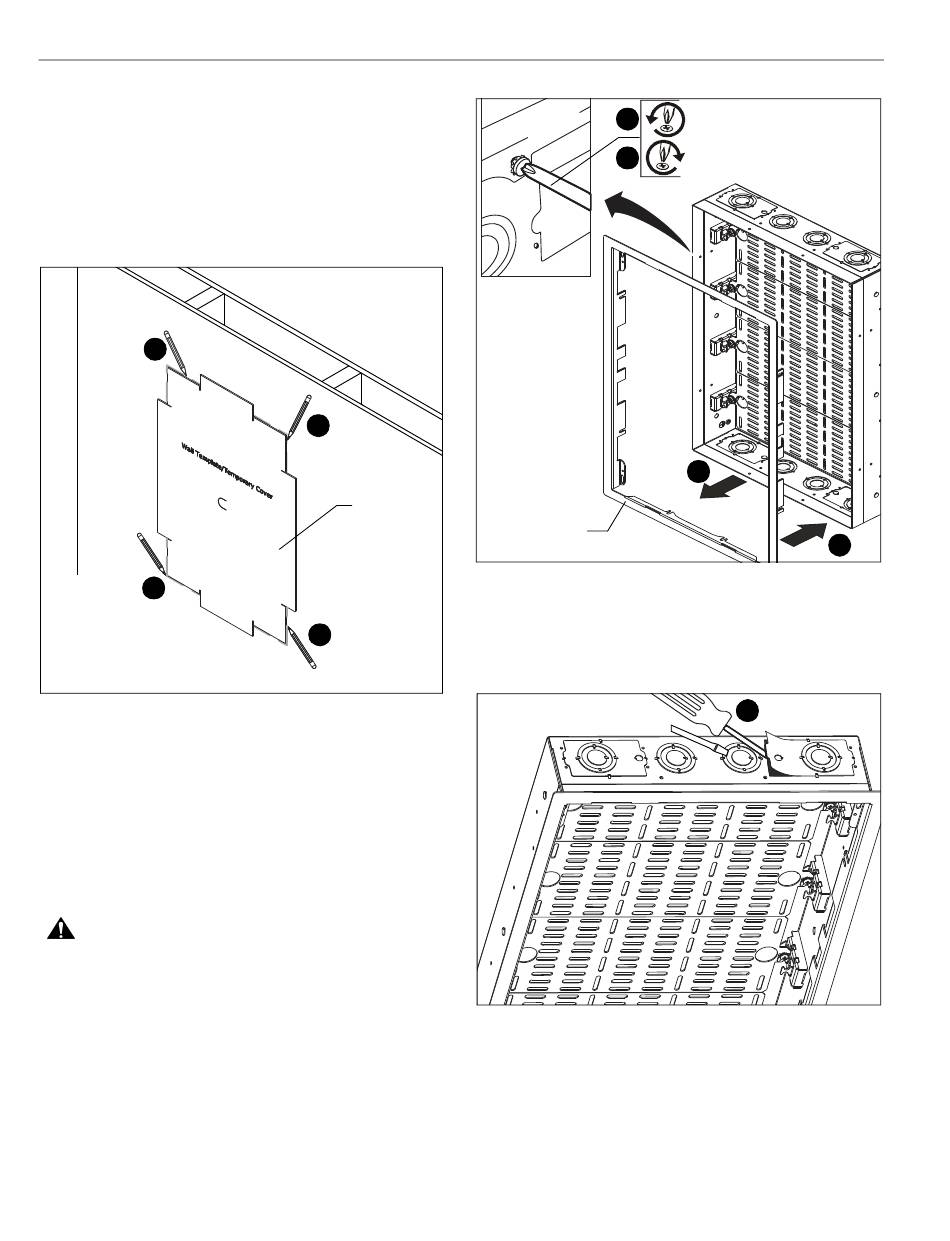

PAC527 Site Preparation
1. Using a level, draw a horizontal line at the lower edge of the
install site. (See Figure 4)
2. Create an exploratory hole to confirm edge of the studs.
3. Using the line drawn in Step 1 as lower edge and placing
between studs, use the enclosed template (F) to draw lines
around corners of template, and connect lines on bottom,
top and sides. (See Figure 4)
3
1
Figure 4
4. Cut along outside edge of line using a utility knife and
remove drywall.
5. Check stud depth within the wall.
• If 3-1/2" or greater, proceed to PAC527 Box
Preparation and Installation.
• If less than 3-1/2" deep, proceed to Step 6.
6. If present, remove box flange by loosening screws. (See
Figure 5)
CAUTION:
Injury may occur on sharp edges. Carefully
discard the removable tabs. Avoid sharp edges.
7. Snap off removable tabs at perforations provided.
8. Reinstall box flange.
9. Fasten flange in place by tightening screws loosened in
Step 6.
10
3
(F)
PAC527 Box Preparation and Installation
3
1.
6
9
Flange
Figure 5
Remove knock-outs as determined in Step 4 of Locating
PAC527 section. (See Figure 6)
Figure 6
Installation Instructions
x 8
6
8
1
