Mounting

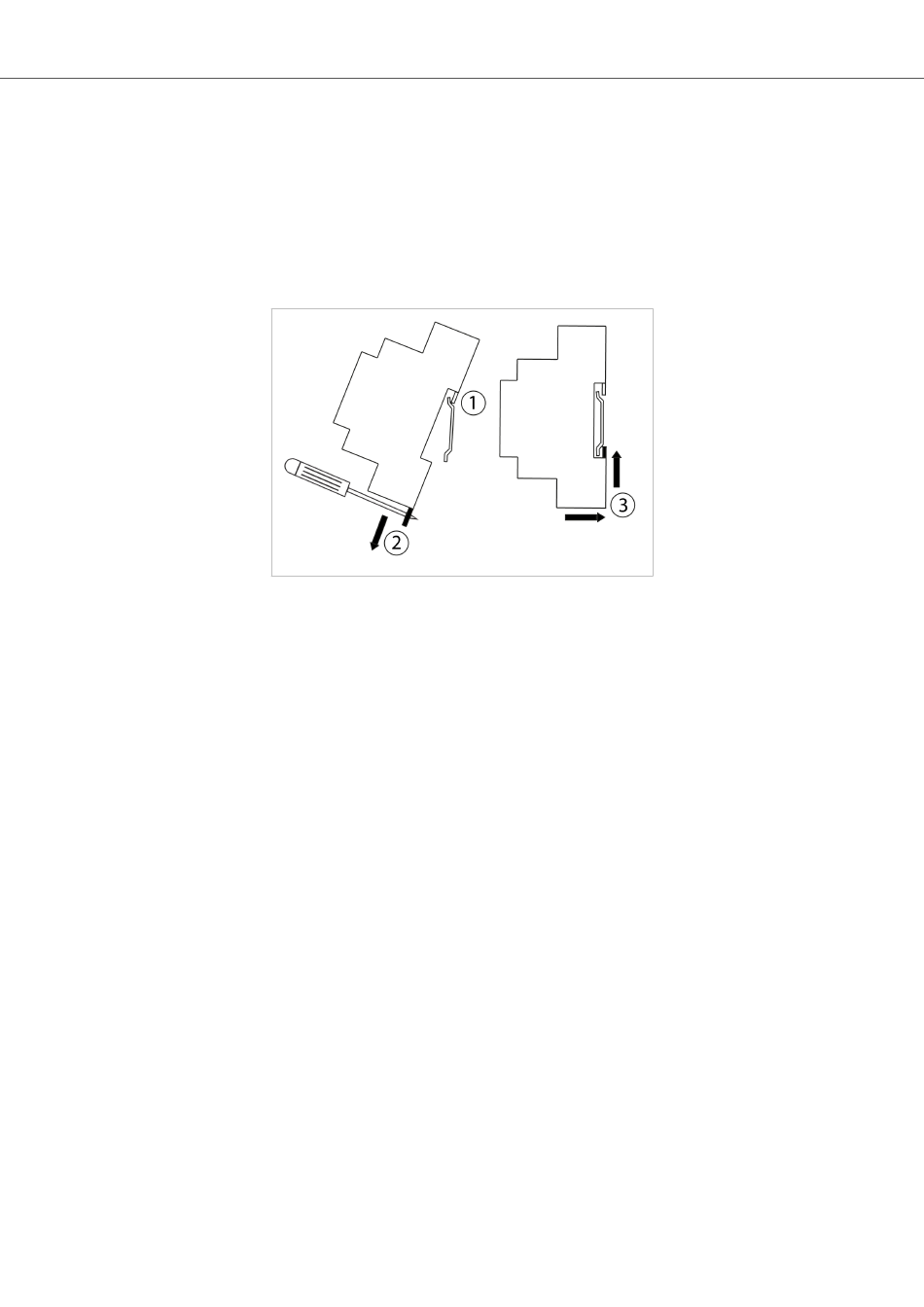

DIN rail mounting
Keep the clips down in their original position.
1.
Fit the gateway's top side clips in the upper edge of the DIN rail.
2.
Use a screwdriver or similar to pull the bottom clip down.
3.
Fit the low side of the gateway in the DIN rail and let the clip switch back to its original position, locking the
gateway to the rail.
4.
Make sure the gateway is firmly fixed.
USER MANUAL Version 1.0.0
Fujitsu VRF systems with KNX, Serial and IP support
Page 9 of 44
